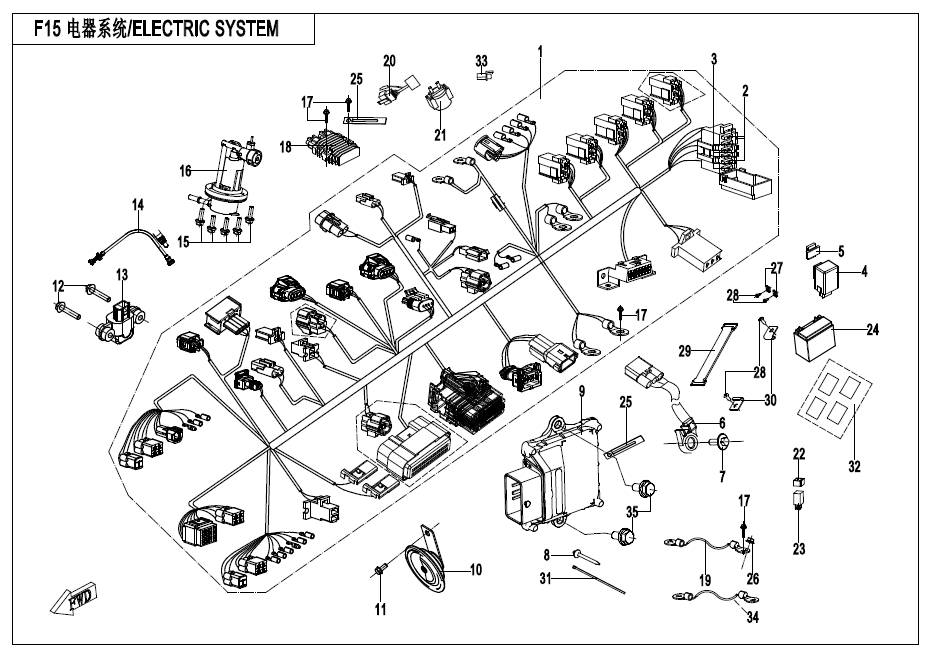

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

01
P/N (SKU): 6KM0-150200-20001
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: used with 6KM0-168000-10000
Alternative parts:
Price: 299,60 € : 299,60 €
-+
02
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts:
Specification: 15A
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 6KM0-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 16,50 € : 16,50 €
-+
05
P/N (SKU): 6100-150500
Part Name: RUBBER SLEEVE, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 6070-151200-1000
Part Name: SIDE STAND SWITCH
Effective: 2021-02-26
Alternative parts: 6KMV-151200-8501
Price: 5,90 € : 5,90 €
-+
07
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts:
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
09
P/N (SKU): 0DMA-174000
Part Name: ECU
Effective: 2021-02-26
Remarks: EU 4
Alternative parts:
Price: 174,80 € : 174,80 €
-+
09
P/N (SKU): 0DM0-174000
Part Name: ECU
Effective: 2021-02-26
Alternative parts:
Specification: BOSCH MSE6.0
Price: 168,10 € : 168,10 €
-+
10
P/N (SKU): 6050-150500
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
11
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×14
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 30006-050020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M5×20
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 6KJ0-150600
Part Name: ROLL-OVER SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 18,70 € : 18,70 €
-+
14
P/N (SKU): 018B-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 109,80 € : 109,80 €
-+
17
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 0A80-177000-00001
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Price: 30,40 € : 30,40 €
-+
19
P/N (SKU): 6KM0-150030-10000
Part Name: STARTER MOTOR NEGATIVE CABLE
Effective: 2021-02-26
Alternative parts:
Price: 9,55 € : 9,55 €
-+
20
P/N (SKU): 6FI3-170300-10000
Part Name: GEAR CONTROL UNIT
Effective: 2021-02-26
Alternative parts:
Price: 11,80 € : 11,80 €
-+
21
P/N (SKU): 6KJ0-150500
Part Name: RELAY, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 11,40 € : 11,40 €
-+
22
P/N (SKU): 9010-150002
Part Name: AUXILIARY RELAY RUBBER RING
Effective: 2021-02-26
Alternative parts:
Price: 4,10 € : 4,10 €
-+
23
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 6,65 € : 6,65 €
-+
24
P/N (SKU): 31020901
Part Name: BATTERY 12V/9Ah
Effective: 2021-02-26
Alternative parts: 31020902
Price: 62,90 € : 62,90 €
24
P/N (SKU): 31020902
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 6KMV-151600-M000-M1
Price: 71,70 € : 71,70 €
25
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2021-02-26
Alternative parts: 6WWV-030080-8000
Price: 0,55 € : 0,55 €
-+
26
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 8080-000002
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 30110-481130010
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: 30110-421130010
Specification: ST4.8x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 0,75 € : 0,75 €
-+
29
P/N (SKU): 1080-150700
Part Name: BATTERY TIE BAND
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
30
P/N (SKU): A000-030005
Part Name: TIE BAND BRACKET, TOOLS KIT
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
31
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
32
P/N (SKU): 9010-120008
Part Name: SPONGE PAD, FUEL TANK
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
33
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 2,45 € : 2,45 €
-+
34
P/N (SKU): 6KM0-150020
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2021-02-26
Alternative parts:
Price: 9,55 € : 9,55 €
-+
35
P/N (SKU): 30102-060012830
Part Name: INNER HEX SCREW M6x12
Effective: 2021-02-26
Alternative parts: 30102-060012810
Specification: M6x12
Price: 0,55 € : 0,55 €
