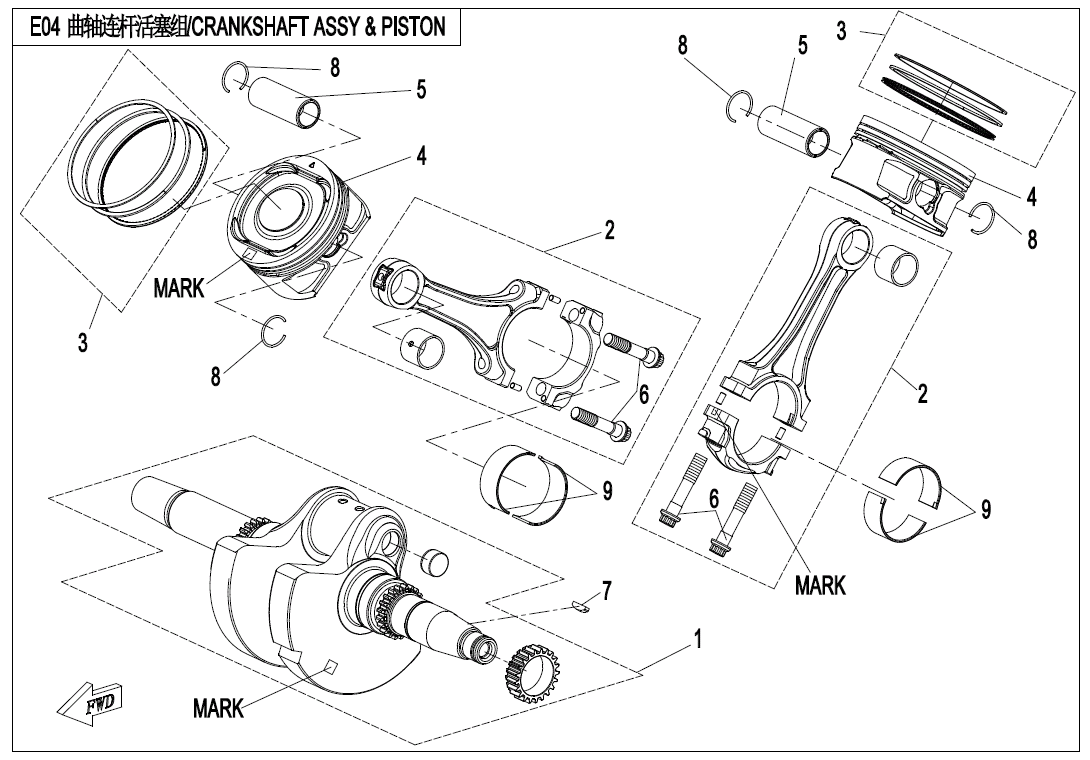

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY - E04

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY - E04

No.

01
P/N (SKU): 0JYA-041000-10010
Part Name: CRANKSHAFT ASSY
Effective: 2021-02-26
Remarks: MARK A
Alternative parts: 0JYA-041000-10012
Specification: GROUP A
Price: 446,00 € : 446,00 €
01
P/N (SKU): 0JYA-041000-10020
Part Name: CRANKSHAFT ASSY
Effective: 2021-02-26
Remarks: MARK B
Alternative parts: 0JYA-041000-10022
Specification: GROUP B
Price: 446,00 € : 446,00 €
02
P/N (SKU): 0JY0-041000-00010
Part Name: CONNECTING ROD PARTS 1
Effective: 2021-02-26
Remarks: MARKⅠ
Alternative parts: 0JY0-041000-00012
Specification: MARK 1
Price: 90,00 € : 90,00 €
-+
02
P/N (SKU): 0JY0-041000-00020
Part Name: CONNECTING ROD PARTS 2
Effective: 2021-02-26
Remarks: MARK Ⅱ
Alternative parts: 0JY0-041000-00022
Specification: MARK 2
Price: 90,00 € : 90,00 €
03
P/N (SKU): 0800-0400A0
Part Name: PISTON RING ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUPPLIERS:DY
Price: 43,80 € : 43,80 €
-+
03
P/N (SKU): 0JYA-0400B0
Part Name: PISTON RING ASSY
Effective: 2021-02-26
Remarks: ATG,OPTIONAL
Alternative parts: 0800-0400A0
Specification: SUPPLIERS:ATG
Price: 23,10 € : 23,10 €
04
P/N (SKU): 0JY0-040001-00010
Part Name: PISTON 1
Effective: 2021-02-26
Remarks: MARKⅠ
Alternative parts: 0JYA-040001-00012
Specification: MARK 1
Price: 71,20 € : 71,20 €
04
P/N (SKU): 0JY0-040001-00020
Part Name: PISTON 2
Effective: 2021-02-26
Remarks: MARK Ⅱ
Alternative parts: 0JYA-040001-00021
Specification: MARK 2
Price: 71,20 € : 71,20 €
04
P/N (SKU): 0JYA-040001-00010
Part Name: PISTON
Effective: 2021-02-26
Remarks: MARKⅠ
Alternative parts: 0JYA-040001-00011
Specification: GROUP 1
Price: 71,20 € : 71,20 €
04
P/N (SKU): 0JYA-040001-00020
Part Name: PISTON
Effective: 2021-02-26
Remarks: MARK Ⅱ
Alternative parts: 0JYA-040001-00021
Specification: GROUP 2
Price: 71,20 € : 71,20 €
05
P/N (SKU): 0800-040002
Part Name: PISTON PIN
Effective: 2021-02-26
Alternative parts: 0800-040002-00001
Price: 8,05 € : 8,05 €
-+
06
P/N (SKU): 0800-042004
Part Name: CONNECTING ROD BOLT
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
07
P/N (SKU): 0180-040007
Part Name: WOODRUFF KEY
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
08
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
09
P/N (SKU): 0JY0-040003-00010
Part Name: PLAIN BEARING,CONNECTING ROD
Effective: 2021-02-26
Remarks: RED
Alternative parts: 0JY0-040003-00012
Specification: RED
Price: 6,60 € : 6,60 €
-+
09
P/N (SKU): 0JY0-040003-00020
Part Name: PLAIN BEARING,CONNECTING ROD
Effective: 2021-02-26
Remarks: BLACK
Alternative parts: 0JY0-040003-00022
Specification: BLACK
Price: 6,60 € : 6,60 €
-+
09
P/N (SKU): 0JY0-040003-00030
Part Name: PLAIN BEARING,CONNECTING ROD
Effective: 2021-02-26
Remarks: BLUE
Alternative parts:
Specification: BLUE
Price: 6,60 € : 6,60 €
-+
