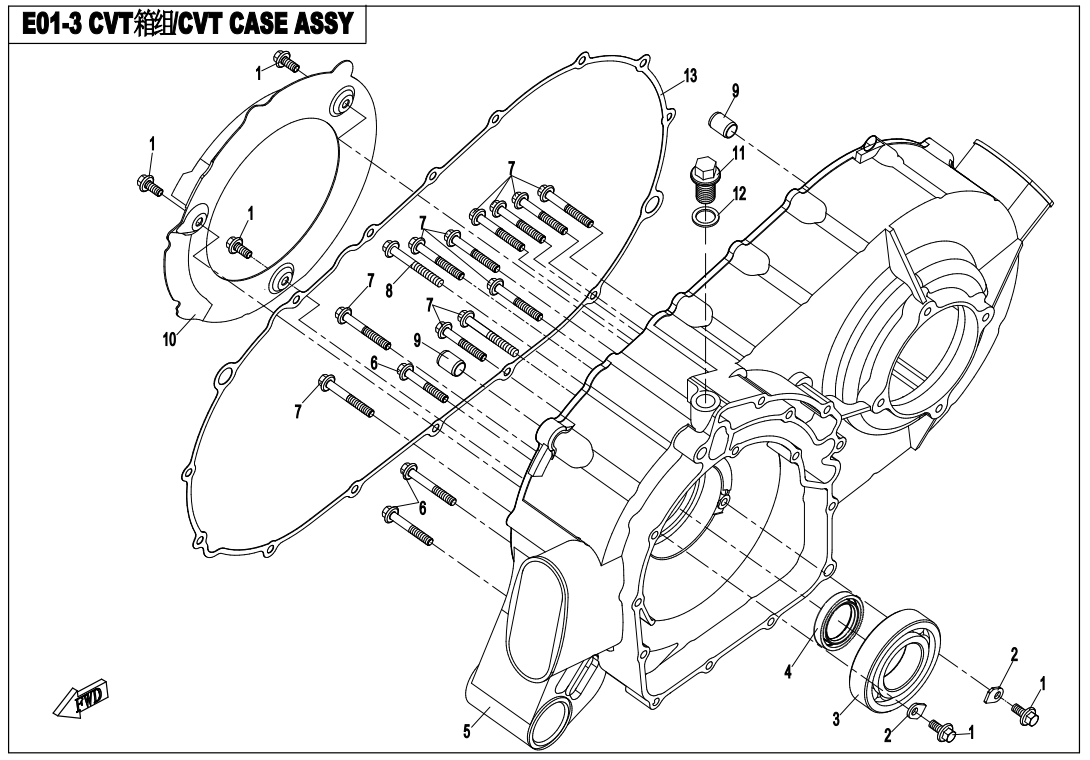

CVT CASE ASSY - E01-3

CVT CASE ASSY - E01-3

No.

01
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 0800-013103
Part Name: BEARING RETAINER, CVT
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30499-04000
Part Name: ROLLING BEARING
Effective: 2021-02-26
Specification: 6208
Price: 34,00 € : 34,00 €
-+
04
P/N (SKU): 0800-013104
Part Name: OIL SEAL
Effective: 2021-02-26
Specification: 34x55x9
Price: 8,50 € : 8,50 €
-+
05
P/N (SKU): 0800-013101
Part Name: CVT CASE
Effective: 2021-02-26
Price: 97,00 € : 97,00 €
-+
06
P/N (SKU): 0010-013009-0010
Part Name: BOLT M6x40
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0180-013208-0010
Part Name: BOLT M6x45
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0010-013010-0010
Part Name: BOLT M6x50
Effective: 2021-02-26
Alternative parts: 0JWV-011108-3000
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0180-011005
Part Name: DOWEL PIN Dia 13x18
Effective: 2021-02-26
Specification: Dia13x18
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 0800-013110
Part Name: AIR GUIDE, CVT
Effective: 2021-02-26
Price: 9,50 € : 9,50 €
-+
11
P/N (SKU): 0180-068001-0050
Part Name: HOLLOW BOLT M14x1.5
Effective: 2021-02-26
Alternative parts: 0180-068001-00100
Specification: M14x1.5
Price: 2,50 € : 2,50 €
11
P/N (SKU): 0180-011007-0010
Part Name: BOLT M14x1.5x32
Effective: 2021-02-26
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,50 € : 2,50 €
-+
12
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Specification: 14
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0800-013102
Part Name: GASKET, CVT COVER
Effective: 2021-02-26
Alternative parts: 0800-013102-10000
Price: 74,00 € : 74,00 €
-+
