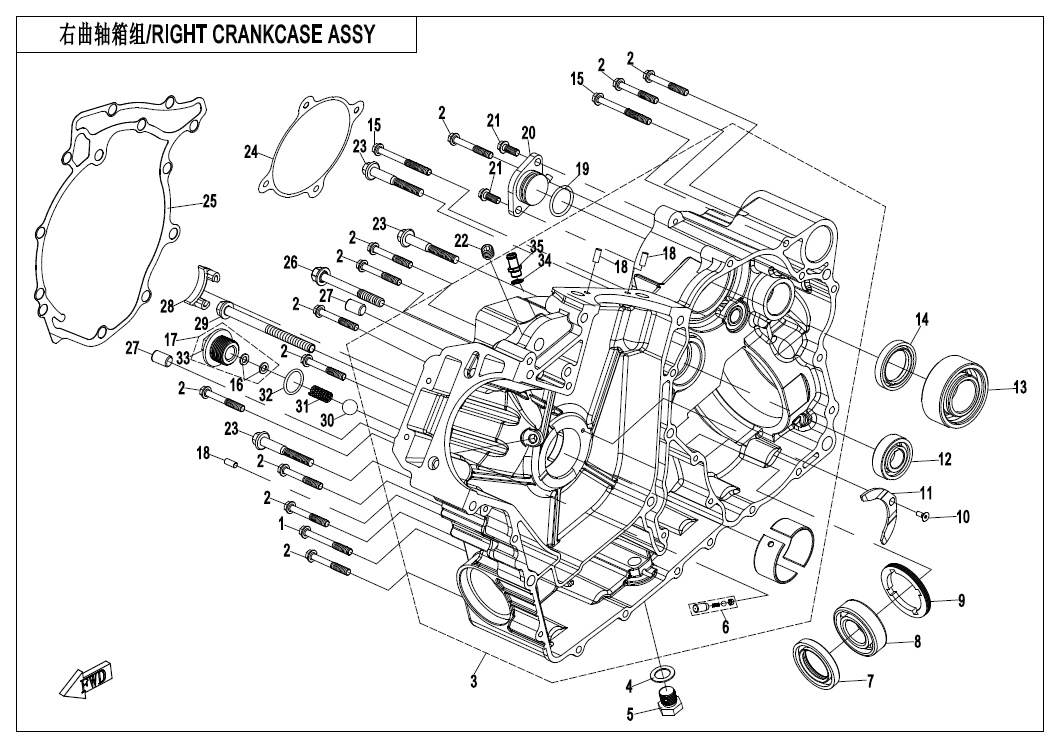

RIGHT CRANKCASE ASSY - E01-2-V5

RIGHT CRANKCASE ASSY - E01-2-V5

No.

01
P/N (SKU): 0010-021018-0010
Part Name: BOLT M6x55
Effective: 2021-02-26
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 0180-013208-0010
Part Name: BOLT M6x45
Effective: 2021-02-26
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0JWA-012100-20001
Part Name: RH CRANKCASE ASSY
Effective: 2021-02-26
Alternative parts: 0JWA-012100-20004
Price: 310,00 € : 310,00 €
04
P/N (SKU): 0JWA-012003
Part Name: GASKET
Effective: 2021-02-26
Alternative parts: null
Specification: 14.1x22x1
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 0JWA-012200
Part Name: MAGNETIC DRAIN BOLT
Effective: 2021-02-26
Alternative parts: 0JWA-012200-00001
Specification: M14x1.5
Price: 3,50 € : 3,50 €
06
P/N (SKU): 0800-011400
Part Name: NOZZLE VALVE ASSY
Effective: 2021-02-26
Alternative parts: 0800-011400-00001
Price: 9,00 € : 9,00 €
-+
07
P/N (SKU): 0010-011002
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts: null
Specification: 25x40x8
Price: 4,50 € : 4,50 €
-+
08
P/N (SKU): 30400-02501
Part Name: DEEP GROOVE BALL BEARING
Effective: 2021-02-26
Alternative parts: null
Specification: 25
Price: 7,50 € : 7,50 €
-+
09
P/N (SKU): 0JWA-012004
Part Name: MIDDLE BEARING RETAINER, FRONT OUTPUT SHAFT
Effective: 2021-02-26
Alternative parts: null
Price: 9,50 € : 9,50 €
-+
10
P/N (SKU): 30122-040010850
Part Name: HEXAGON SOCKET COUNTERSUNK HEAD SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: M4x10@BLACK OXIDATION
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 0800-011003
Part Name: THRUST WASHER, CRANKCASE
Effective: 2021-02-26
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
12
P/N (SKU): 30400-01704
Part Name: DEEP GROOVE BALL BEARING
Effective: 2021-02-26
Alternative parts: null
Specification: 10
Price: 13,00 € : 13,00 €
-+
13
P/N (SKU): 30499-03000
Part Name: ROLLING BEARING
Effective: 2021-02-26
Alternative parts: null
Specification: 5206
Price: 68,00 € : 68,00 €
-+
14
P/N (SKU): 0180-012006
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts: 0180-012006-00001/0180-012006-10000
Specification: 30x45x7
Price: 6,00 € : 6,00 €
15
P/N (SKU): 0A70-011005
Part Name: BOLT M6x75
Effective: 2021-02-26
Alternative parts: 0A70-011005-00001
Specification: M6x75
Price: 1,50 € : 1,50 €
16
P/N (SKU): 30304-050440
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0GR0-0140A0
Part Name: SCREW PLUG,RELIEF VALVE ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 4,00 € : 4,00 €
-+
18
P/N (SKU): 30406-00500
Part Name: NEEDLE ROLLERS
Effective: 2021-02-26
Alternative parts: null
Specification: P5x11.8
Price: 1,50 € : 1,50 €
19
P/N (SKU): 0180-023002
Part Name: O-SEAL RING
Effective: 2021-02-26
Alternative parts: null
Specification: 24x2.5
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 0800-012200
Part Name: GEAR SENSOR
Effective: 2021-02-26
Alternative parts: 080V-012200-2000
Specification: ORDINARY PLUG
Price: 20,00 € : 20,00 €
-+
20
P/N (SKU): 0800-012200-1000
Part Name: GEAR SENSOR
Effective: 2021-02-26
Remarks: Sumitomo
Alternative parts: 080V-012200-1000
Specification: SUMITOMO PLUG
Price: 29,00 € : 29,00 €
21
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 01A0-012010
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 01A0-012010-00001
Price: 1,50 € : 1,50 €
23
P/N (SKU): 0130-011109-0010
Part Name: BOLT M8x60
Effective: 2021-02-26
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
24
P/N (SKU): 0JWA-012002
Part Name: GASKET 2, CVT CASE
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
25
P/N (SKU): 0JWA-012001
Part Name: GASKET 1, CVT CASE
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
26
P/N (SKU): 0700-012003
Part Name: BOLT M8x73
Effective: 2021-02-26
Alternative parts: 0700-012003-00001
Specification: M8x73
Price: 3,00 € : 3,00 €
27
P/N (SKU): 0010-021005
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts: null
Specification: 10x14
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 0800-011007
Part Name: CHAIN GUARD
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
29
P/N (SKU): 0130-011115-0010
Part Name: BOLT M8x106
Effective: 2021-02-26
Alternative parts: 0130-011115-00001
Specification: M8x106
Price: 3,00 € : 3,00 €
30
P/N (SKU): 3120015
Part Name: ROLLING BEARINGS
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 0700-012603-1000
Part Name: SPRING, RELIEF VALVE
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
32
P/N (SKU): 0180-332004
Part Name: O-RING
Effective: 2021-02-26
Alternative parts: null
Specification: 19x2.5
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 0GR0-014003
Part Name: SCREW PLUG, RELIEF VALVE
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
34
P/N (SKU): 0010-011008
Part Name: O-SEAL RING
Effective: 2021-02-26
Alternative parts: null
Specification: 15.8x2.4
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 0JWA-080009
Part Name: JOINT, WATER PUMP COVER
Effective: 2021-02-26
Alternative parts: 0JWA-080009-00001
Price: 3,50 € : 3,50 €
-+
