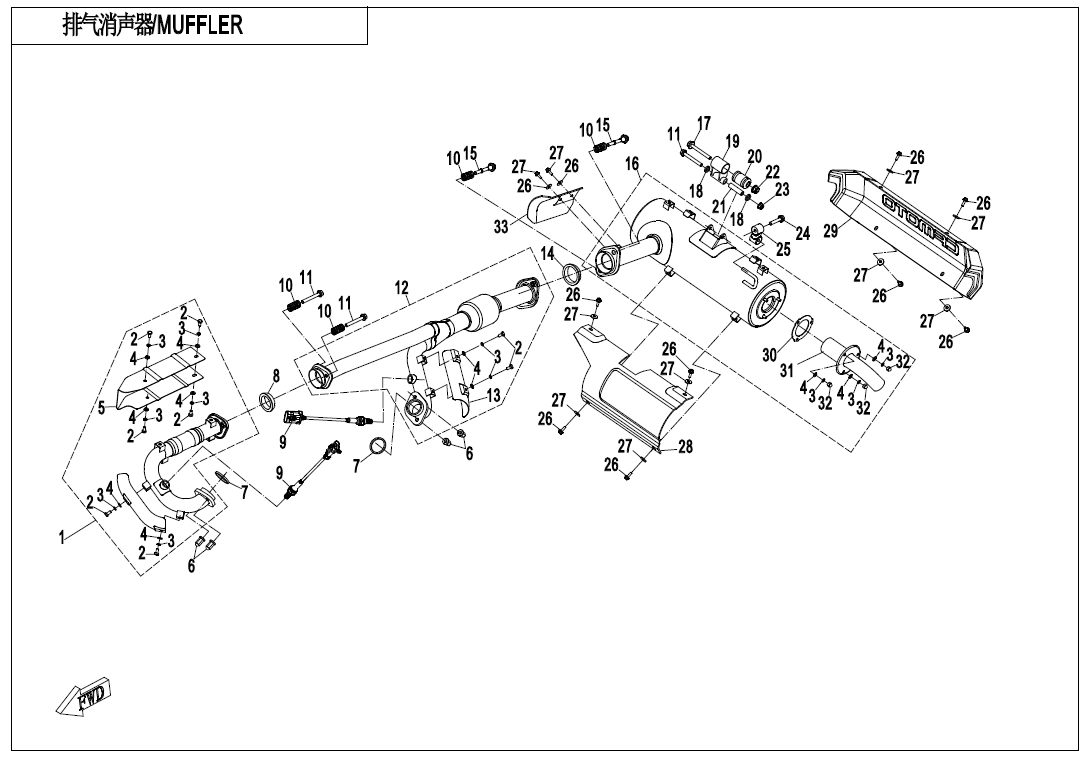

MUFFLER(168@^LOF) - F02-1-A-V1

MUFFLER(168@^LOF) - F02-1-A-V1

No.

01
P/N (SKU): 9AWA-021100
Part Name: EXHAUST PIPE ASSY, FRONT CYLINDER
Effective: 2021-02-26
Alternative parts: 9AWA-021100-00001
Price: 147,00 € : 147,00 €
01
P/N (SKU): 9AWA-021100-00001
Part Name: EXHAUST PIPE ASSY, FRONT CYLINDER
Effective: 2021-02-26
Alternative parts: 9AWA-021100-00002
Price: 108,00 € : 108,00 €
-+
02
P/N (SKU): 30000-060010700
Part Name: BOLT M6x10
Effective: 2021-02-26
Alternative parts: 30000-060012820
Specification: M6x10
Price: 1,50 € : 1,50 €
03
P/N (SKU): 30303-060900
Part Name: WASHER φ6
Effective: 2021-02-26
Alternative parts: 30303-060112
Specification: 6
Price: 1,50 € : 1,50 €
04
P/N (SKU): 30306-060800
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: φ6
Price: 2,00 € : 2,00 €
05
P/N (SKU): 9AWA-021101
Part Name: HEAT INSULATOR
Effective: 2021-02-26
Alternative parts: null
Price: 18,00 € : 18,00 €
06
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2021-02-26
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
08
P/N (SKU): 9AWA-021003
Part Name: GRAPHITE RING, SMALL
Effective: 2021-02-26
Alternative parts: 9AWA-021003-00001/9AWA-021004-00002
Price: 11,00 € : 11,00 €
09
P/N (SKU): 0800-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts: null
Price: 128,00 € : 128,00 €
-+
10
P/N (SKU): 9AWA-021001
Part Name: MUFFLER SPRING
Effective: 2021-02-26
Alternative parts: 9AWV-020023-8000+9AWV-021002-8000
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 30006-080065810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8x65
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9AWA-021200
Part Name: 2 IN 1 EXHAUST PIPE ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-021200-00001
Price: 325,00 € : 325,00 €
12
P/N (SKU): 9AWA-021200-00001
Part Name: 2 IN 1 EXHAUST PIPE ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-021200-00002/9AWA-021200-20001
Price: 406,00 € : 406,00 €
13
P/N (SKU): 9AWA-021201
Part Name: HEAT INSULATOR
Effective: 2021-02-26
Alternative parts: null
Price: 17,00 € : 17,00 €
14
P/N (SKU): 9AWA-021004
Part Name: GRAPHITE RING, BIG
Effective: 2021-02-26
Alternative parts: 9AWA-021004-00001/9AWA-021003-00002
Price: 11,00 € : 11,00 €
15
P/N (SKU): 9AWA-021002
Part Name: BOLT M8x65
Effective: 2021-02-26
Alternative parts: 9AWA-021002-10000
Specification: M8x65
Price: 6,00 € : 6,00 €
16
P/N (SKU): 9AWA-021300
Part Name: MUFFLER ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 327,00 € : 327,00 €
17
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 9CR6-020003
Part Name: WIRE WASHER
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 9CR6-020020
Part Name: MOUNT ASSY, MUFFLER
Effective: 2021-02-26
Alternative parts: 9CR6-020020-00001
Price: 9,50 € : 9,50 €
-+
20
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
21
P/N (SKU): 7020-020001
Part Name: MUFFLER LINER
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
22
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 30006-080040810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8×40
Price: 2,00 € : 2,00 €
25
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
-+
26
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
27
P/N (SKU): 30305-060112
Part Name: PLAIN WASHERS
Effective: 2021-02-26
Alternative parts: null
Specification: φ6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 9AWA-020001
Part Name: INNER HEAT INSULATION, MUFFLER
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
29
P/N (SKU): 9AWA-020002
Part Name: DECO COVER, MUFFLER
Effective: 2021-02-26
Alternative parts: 9AWV-020002-2E00
Price: 39,00 € : 39,00 €
30
P/N (SKU): 7030-021102
Part Name: TAIL COVER SEAL GASKET
Effective: 2021-02-26
Alternative parts: null
Price: 5,00 € : 5,00 €
-+
31
P/N (SKU): 7030-021150-1000
Part Name: SPARK ARRESTOR
Effective: 2021-02-26
Alternative parts: null
Price: 27,00 € : 27,00 €
32
P/N (SKU): 30206-060510
Part Name: CAP NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
33
P/N (SKU): 9AWA-020003
Part Name: HEAT INSULATOR
Effective: 2021-02-26
Alternative parts: null
Price: 9,00 € : 9,00 €
