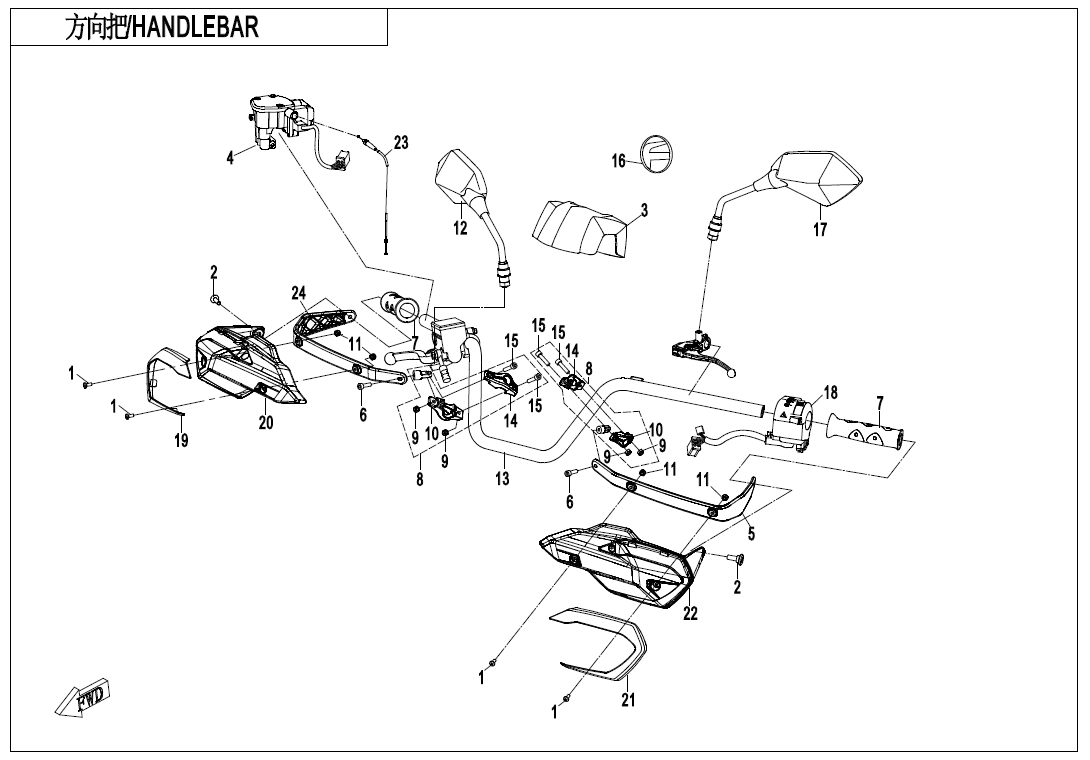

ANDLEBAR-TIMBER CAMO(NA) - F10-1-E-V2

ANDLEBAR-TIMBER CAMO(NA) - F10-1-E-V2

No.

01
P/N (SKU): A010-120003
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts: 6NQ#-000206-6001
Specification: M6x16
Price: 1,80 € : 1,80 €
02
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Price: 1,30 € : 1,30 €
-+
03
P/N (SKU): 9AWA-100002
Part Name: HAND GUARD
Effective: 2021-02-26
Alternative parts: 9AWV-100002-2E00
Price: 4,00 € : 4,00 €
04
P/N (SKU): 9AWA-160700
Part Name: RH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-160700-00001
Specification: ORDINARY PLUG
Price: 42,00 € : 42,00 €
04
P/N (SKU): 9AWA-160700-10000
Part Name: RH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-160700-10001
Specification: SUMITOMO PLUG
Price: 43,60 € : 43,60 €
04
P/N (SKU): 9AWA-160700-10001
Part Name: RH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-160700-10002
Specification: SUMITOMO PLUG
Price: 44,30 € : 44,30 €
04
P/N (SKU): 9AWA-160700-00001
Part Name: RH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-160700-00002
Specification: ORDINARY PLUG
Price: 37,00 € : 37,00 €
05
P/N (SKU): 9AWA-101203-10000
Part Name: HANDGUARD LEVER
Effective: 2021-02-26
Alternative parts: 30102-060025700+30212-060810+30305-060112+30305-080112+9AWA-101203-20000+9AWA-101303-10000
Price: 6,60 € : 6,60 €
06
P/N (SKU): A000-040703
Part Name: INNER HEX SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M6x20
Price: 1,80 € : 1,80 €
-+
07
P/N (SKU): 8060-100001
Part Name: LH HAND GRIP
Effective: 2021-02-26
Alternative parts: 9DQV-100005-3000
Price: 7,00 € : 7,00 €
-+
08
P/N (SKU): 9AWA-101230-10000
Part Name: BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 11,40 € : 11,40 €
-+
09
P/N (SKU): 30224-060800
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30224-060810
Price: 3,00 € : 3,00 €
10
P/N (SKU): 9CR6-101204-10000
Part Name: PRESS COVER, BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 2,30 € : 2,30 €
-+
11
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6
Price: 1,00 € : 1,00 €
-+
12
P/N (SKU): 7020-200300
Part Name: REAR VIEW MIRROR, RH
Effective: 2021-02-26
Alternative parts: 9AY0-200300
Price: 16,30 € : 16,30 €
13
P/N (SKU): 9AWA-101100
Part Name: HANDLEBAR ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-101100-20000
Price: 36,60 € : 36,60 €
14
P/N (SKU): 9CR6-101202-10000
Part Name: SEAT, BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 2,30 € : 2,30 €
-+
15
P/N (SKU): 30102-060020700
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 30102-060020810
Specification: M6x20
Price: 2,40 € : 2,40 €
16
P/N (SKU): 9CR6-190001
Part Name: CFMOTO LOGO
Effective: 2021-02-26
Alternative parts:
Specification: SMALL
Price: 6,40 € : 6,40 €
-+
17
P/N (SKU): 7020-200200
Part Name: LH REARVIEW MIRROR ASSY
Effective: 2021-02-26
Alternative parts: 9AY0-200200
Price: 16,30 € : 16,30 €
18
P/N (SKU): 7020-160600-1000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts:
Price: 33,40 € : 33,40 €
-+
18
P/N (SKU): 7020-160600-3000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 45,40 € : 45,40 €
-+
19
P/N (SKU): 9AWA-101302-0RE00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: TRUE TIMBER CAMO
Price: 30,40 € : 30,40 €
-+
20
P/N (SKU): 9AWA-101301-10000
Part Name: RH HAND GUARD COVER
Effective: 2021-02-26
Alternative parts:
Price: 9,60 € : 9,60 €
-+
21
P/N (SKU): 9AWA-101202-0RE00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-02-26
Alternative parts:
Specification: TRUE TIMBER CAMO
Price: 30,40 € : 30,40 €
-+
22
P/N (SKU): 9AWA-101201-10000
Part Name: HAND GUARD, LH
Effective: 2021-02-26
Alternative parts:
Price: 9,60 € : 9,60 €
-+
23
P/N (SKU): 7020-100510
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts: 9AWV-100500-2B00
Price: 12,10 € : 12,10 €
24
P/N (SKU): 9AWA-101303
Part Name: RH HANDGUARD LEVER
Effective: 2021-02-26
Alternative parts: 30102-060025700+30212-060810+30305-060112+30305-080112+9AWA-101203-20000+9AWA-101303-10000
Price: 8,20 € : 8,20 €
