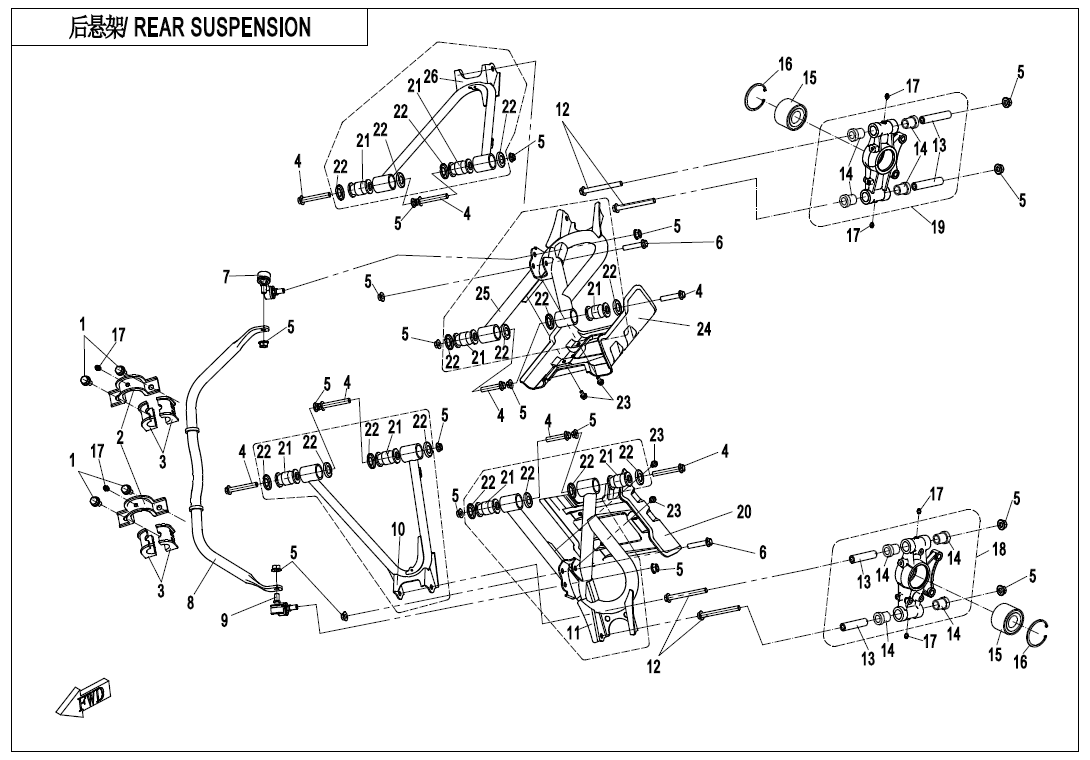

REAR SUSPENSION - F06-1-V2

REAR SUSPENSION - F06-1-V2

No.

01
P/N (SKU): 30006-080012810
Part Name: BOLT M8x12
Effective: 2021-02-26
Alternative parts:
Specification: M8x12
Price: 0,40 € : 0,40 €
-+
02
P/N (SKU): 9GQ0-060601-00001
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 9GQ0-060003
Part Name: SUPPORTER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
04
P/N (SKU): 30006-102070810
Part Name: BOLT M10x1.25x70
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x70
Price: 0,75 € : 0,75 €
-+
05
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 0,40 € : 0,40 €
-+
06
P/N (SKU): 30006-102050810
Part Name: BOLT M10x1.25x50
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x50
Price: 0,75 € : 0,75 €
-+
07
P/N (SKU): 9010-060800-20000
Part Name: BALL PIN, RH
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
07
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
08
P/N (SKU): 9010-060500
Part Name: SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 61,00 € : 61,00 €
-+
09
P/N (SKU): 9010-060700-20000
Part Name: BALL PIN, LH
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
09
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
10
P/N (SKU): 9010-060300-10000
Part Name: REAR UPPER SWING ARM, LH
Effective: 2021-02-26
Alternative parts: 9010-060300-20000
Price: 23,80 € : 23,80 €
11
P/N (SKU): 9010-060400-10001
Part Name: REAR LOWER SWING ARM, LH
Effective: 2021-02-26
Alternative parts: 9010-060400-20000
Specification: 168 REGULATIONS, INCREASING THE OIL TUBE INSTALLATION
Price: 44,70 € : 44,70 €
12
P/N (SKU): 30006-102100810
Part Name: BOLT M10x1.25x100
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x100
Price: 1,10 € : 1,10 €
-+
13
P/N (SKU): 7020-060702
Part Name: MIDDLE SPACER, REAR BEARING CARRIER
Effective: 2021-02-26
Alternative parts: 7020-060702-00001
Price: 5,60 € : 5,60 €
14
P/N (SKU): 9060-050003
Part Name: SHORT BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 5,10 € : 5,10 €
-+
15
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 31,30 € : 31,30 €
16
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE 55
Effective: 2021-02-26
Alternative parts:
Specification: 55
Price: 2,05 € : 2,05 €
-+
17
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Price: 0,75 € : 0,75 €
-+
18
P/N (SKU): 7020-0607A0
Part Name: LH REAR BEARING CARRIER ASSY,
Effective: 2021-02-26
Alternative parts:
Price: 71,20 € : 71,20 €
-+
19
P/N (SKU): 7020-0608A0
Part Name: RH REAR BEARING CARRIER ASSY
Effective: 2021-02-26
Alternative parts:
Price: 71,20 € : 71,20 €
-+
20
P/N (SKU): 901B-040021-10000
Part Name: LH FENDER, REAR SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 11,80 € : 11,80 €
-+
21
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
22
P/N (SKU): 9010-050003
Part Name: CAP, CUSHION SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
23
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6x12
Price: 0,40 € : 0,40 €
24
P/N (SKU): 901B-040022-10000
Part Name: REAR SUSPENSION FENDER, RH
Effective: 2021-02-26
Alternative parts:
Price: 11,80 € : 11,80 €
-+
25
P/N (SKU): 9010-060200-10001
Part Name: RH REAR LOWER SWING ARM
Effective: 2021-02-26
Alternative parts: 9010-060200-20000
Specification: 169 REGULATIONS, INCREASING THE OIL TUBE INSTALLATION
Price: 44,70 € : 44,70 €
26
P/N (SKU): 9010-060100-10000
Part Name: REAR UPPER SWING ARM, RH
Effective: 2021-02-26
Alternative parts: 9010-060100-20000
Price: 32,60 € : 32,60 €
