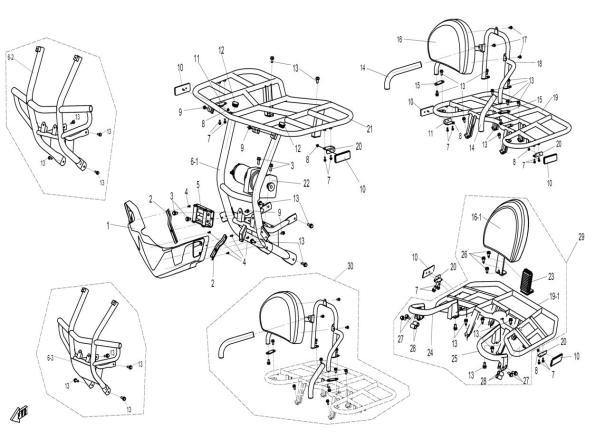

RACK@^BUMPER - F25

RACK@^BUMPER - F25

No.

01
P/N (SKU): 9050-040001
Part Name: BUMPER DECO COVER
Effective: 2021-02-26
Alternative parts:
Price: 8,05 € : 8,05 €
-+
02
P/N (SKU): 9050-230140
Part Name: BUMPER DECO COVER BRACKET
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 2,05 € : 2,05 €
-+
03
P/N (SKU): 30006-080020840
Part Name: BOLT M8x20
Effective: 2021-02-26
Alternative parts: 30006-080020810
Specification: M8x20
Price: 0,40 € : 0,40 €
04
P/N (SKU): 30110-480160040
Part Name: SELF-TAPPING SCREW ST4.8x16
Effective: 2021-02-26
Alternative parts: 30110-480160010
Specification: ST4.8x16
Price: 0,35 € : 0,35 €
05
P/N (SKU): 9010-150730-A000
Part Name: CABLE PULLEY
Effective: 2021-02-26
Remarks: ROCKY
Alternative parts:
Specification: ROCKY
Price: 18,00 € : 18,00 €
-+
05
P/N (SKU): 9010-150730
Part Name: CABLE PULLEY
Effective: 2021-02-26
Remarks: LIANDA
Alternative parts:
Specification: LIANDA
Price: 20,90 € : 20,90 €
-+
6-1
P/N (SKU): 9050-230100
Part Name: BUMPER ASSY
Effective: 2021-02-26
Remarks: FOR "WITH DECORATION COVER"
Alternative parts:
Price: 99,20 € : 99,20 €
-+
6-2
P/N (SKU): 9050-230100-A000
Part Name: BUMPER ASSY
Effective: 2021-02-26
Remarks: FOR "WITHOUT DECORATION COVER"
Alternative parts:
Specification: PLASTIC POWDER
Price: 90,40 € : 90,40 €
-+
6-3
P/N (SKU): 9050-230100-B000
Part Name: BUMPER ASSY
Effective: 2021-02-26
Remarks: CANADA
Alternative parts:
Specification: PLASTIC POWDER
Price: 116,60 € : 116,60 €
-+
07
P/N (SKU): 30006-050012840
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-050012810
Price: 1,10 € : 1,10 €
08
P/N (SKU): 30202-050140
Part Name: NUT M5
Effective: 2021-02-26
Alternative parts: 30202-050110
Specification: M5
Price: 0,75 € : 0,75 €
09
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 0,40 € : 0,40 €
10
P/N (SKU): 5190-160230
Part Name: REAR REFLECTOR
Effective: 2021-02-26
Remarks: RED COLOR
Alternative parts: 5190-160230-00002
Specification: RECTANGLE, RED
Price: 3,60 € : 3,60 €
-+
10
P/N (SKU): 5190-160230-A000
Part Name: FRONT SIDE REFLECTOR
Effective: 2021-02-26
Remarks: AMBER COLOR
Alternative parts:
Specification: RECTANGLE,AMBER
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 5190-160230-B000
Part Name: REAR REFLECTOR(RED)
Effective: 2021-02-26
Remarks: WITH 11 AND 20
Alternative parts: 5190-160230
Price: 0,75 € : 0,75 €
11
P/N (SKU): 9050-160502
Part Name: RH BRACKET, SIDE REFLECTOR
Effective: 2021-02-26
Alternative parts:
Price: 2,60 € : 2,60 €
-+
11
P/N (SKU): 4020-140504
Part Name: RH BRACKET, REAR REFLECTOR
Effective: 2021-02-26
Remarks: RUSSIA
Alternative parts:
Price: 0,75 € : 0,75 €
-+
12
P/N (SKU): 9010-040027-A000
Part Name: BUMPER DECO COVER
Effective: 2021-02-26
Remarks: is replaced by UTV9010-040027,X5/X69010-040027-B000
Alternative parts:
Price: 1,85 € : 1,85 €
-+
13
P/N (SKU): 30006-080014840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,40 € : 0,40 €
-+
14
P/N (SKU): 905A-140331
Part Name: RUBBER SLEEVE, REAR ARMREST
Effective: 2021-02-26
Alternative parts:
Price: 1,10 € : 1,10 €
-+
15
P/N (SKU): 905A-140305
Part Name: MOUNTING PLATE, REAR ARMREST
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
16
P/N (SKU): 9020-140320
Part Name: BACKREST ASSY
Effective: 2021-02-26
Remarks: STANDARD
Alternative parts:
Price: 34,10 € : 34,10 €
-+
16-1
P/N (SKU): 4020-130220
Part Name: BACKREST ASSY
Effective: 2021-02-26
Remarks: BLACK
Alternative parts:
Price: 36,30 € : 36,30 €
-+
17
P/N (SKU): 30006-060016840
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060016810
Specification: M6x16
Price: 0,40 € : 0,40 €
18
P/N (SKU): 905A-140300
Part Name: REAR ARMREST ASSY
Effective: 2021-02-26
Alternative parts:
Price: 55,90 € : 55,90 €
-+
19
P/N (SKU): 9050-140100
Part Name: REAR RACK ASSY
Effective: 2021-02-26
Remarks: STANDARD
Alternative parts:
Price: 91,00 € : 91,00 €
-+
19-1
P/N (SKU): 9050-140300
Part Name: REAR RACK ASSY
Effective: 2021-02-26
Remarks: OPTIONAL
Alternative parts:
Price: 86,40 € : 86,40 €
-+
20
P/N (SKU): 9050-160501
Part Name: LH BRACKET, SIDE REFLECTOR
Effective: 2021-02-26
Alternative parts:
Price: 0,75 € : 0,75 €
-+
20
P/N (SKU): 4020-140503
Part Name: LH BRACKET, REAR REFLECTOR
Effective: 2021-02-26
Remarks: RUSSIA
Alternative parts:
Price: 0,75 € : 0,75 €
-+
21
P/N (SKU): 9050-140200
Part Name: FRONT RACK ASSY
Effective: 2021-02-26
Alternative parts:
Price: 83,60 € : 83,60 €
-+
22
P/N (SKU): 9010-150740-2000
Part Name: WINCH MOTOR
Effective: 2021-02-26
Remarks: OPTIONAL, LIANDA
Alternative parts:
Specification: LIANDA
Price: 178,50 € : 178,50 €
-+
22
P/N (SKU): 9010-150740-A000
Part Name: WINCH MOTOR
Effective: 2021-02-26
Remarks: ROCKY
Alternative parts:
Specification: ROCKY
Price: 245,00 € : 245,00 €
-+
23
P/N (SKU): 9010-140501-B000
Part Name: RUBBER COLLAR
Effective: 2021-02-26
Remarks: FOR BACKREST
Alternative parts:
Price: 4,05 € : 4,05 €
-+
24
P/N (SKU): 4020-140700-10000
Part Name: ARMREST, RH
Effective: 2021-02-26
Alternative parts:
Price: 42,90 € : 42,90 €
-+
25
P/N (SKU): 4020-140600
Part Name: ARMREST, LH
Effective: 2021-02-26
Alternative parts: 9010-040808-10000+4020-140600-10000
Price: 32,60 € : 32,60 €
25
P/N (SKU): 4020-140600-10000
Part Name: ARMREST, LH
Effective: 2021-02-26
Alternative parts:
Price: 42,90 € : 42,90 €
-+
26
P/N (SKU): 30107-080018440
Part Name:
Effective: 2021-02-26
Remarks: FOR BACKREST
Alternative parts:
Price: 0,40 € : 0,40 €
-+
27
P/N (SKU): 30102-080035840
Part Name: INNER HEX SCREW M8x35
Effective: 2021-02-26
Alternative parts:
Specification: M8x35
Price: 0,40 € : 0,40 €
-+
28
P/N (SKU): 9010-040808
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts: 9010-040808-10000
Price: 0,75 € : 0,75 €
28
P/N (SKU): 9010-040808-10000
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 1,10 € : 1,10 €
-+
29
P/N (SKU): 9050-1403A0
Part Name: REAR RACK ASSY
Effective: 2021-02-26
Remarks: OPTIONAL
Alternative parts:
Price: 168,70 € : 168,70 €
-+
30
P/N (SKU): 9020-1403A0
Part Name: BACKREST ASSY
Effective: 2021-02-26
Alternative parts:
Price: 96,60 € : 96,60 €
-+
