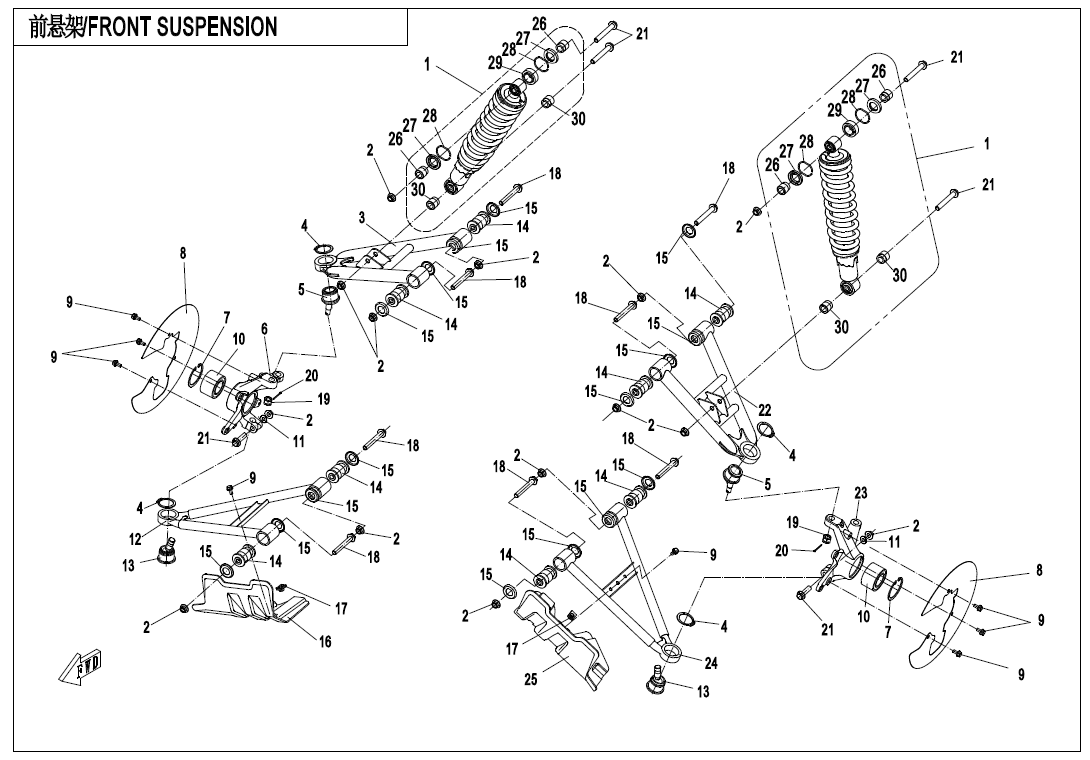

FRONT SUSPENSION(RUSSIA) - F17-B

FRONT SUSPENSION(RUSSIA) - F17-B

No.

01
P/N (SKU): 401B-050500
Part Name: FRONT SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts: null
Specification: YIT@RUSSIA
Price: 105,00 € : 105,00 €
02
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 1,50 € : 1,50 €
03
P/N (SKU): 9010-050200-10000
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Remarks: Iron
Alternative parts: null
Price: 46,00 € : 46,00 €
-+
04
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts: null
Specification: 34
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 9010-050700
Part Name: TOP BALL PIN
Effective: 2021-02-26
Alternative parts: 9010-050700-1000/9DQV-056100-3000
Specification: SOMIC
Price: 28,00 € : 28,00 €
06
P/N (SKU): 9010-050001
Part Name: RH STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts: null
Price: 43,00 € : 43,00 €
07
P/N (SKU): 30800-05505
Part Name: CIRCLIPS FOR HOLES
Effective: 2021-02-26
Alternative parts: null
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
08
P/N (SKU): 9010-030008
Part Name: GUARD, BRAKE DISC
Effective: 2021-02-26
Remarks: is replaced by 9010-030008-1000
Alternative parts: 9010-030008-1000
Specification: ELECTROPHORESIS BLACK
Price: 9,00 € : 9,00 €
09
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
10
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 32,00 € : 32,00 €
11
P/N (SKU): 9010-300002
Part Name: WASHER Dia 10
Effective: 2021-02-26
Alternative parts: null
Specification: Dia 10
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9010-050100-10000
Part Name: FRONT RH LOWER SWING ARM ASSY
Effective: 2021-02-26
Remarks: STEEL
Alternative parts: 9010-050100-20000
Price: 34,00 € : 34,00 €
13
P/N (SKU): 9010-050800
Part Name: BOTTOM BALL PIN
Effective: 2021-02-26
Alternative parts: 9010-050800-20000
Specification: SOMIC
Price: 27,00 € : 27,00 €
14
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
15
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-02-26
Alternative parts: 9DSV-050900-6K00
Price: 2,00 € : 2,00 €
16
P/N (SKU): 901B-040024
Part Name: FRONT RH SUSPENSION FENDER
Effective: 2021-02-26
Alternative parts: null
Price: 14,00 € : 14,00 €
17
P/N (SKU): 8030-040800
Part Name: NUT CLIP M6
Effective: 2021-02-26
Alternative parts: 8030-040800-00001
Specification: M6
Price: 1,50 € : 1,50 €
18
P/N (SKU): 30006-102070840
Part Name: BOLT M10x1.25x70
Effective: 2021-02-26
Alternative parts: 30006-102070810
Specification: MILITARY GREEN
Price: 2,50 € : 2,50 €
19
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M10x1.25
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 30903-0201620
Part Name: SPLIT PINS
Effective: 2021-02-26
Remarks: is replaced by 30903-0201610
Alternative parts: 30903-0201610
Specification: 2.0x16
Price: 1,50 € : 1,50 €
21
P/N (SKU): 30006-102050840
Part Name: null
Effective: 2021-02-26
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
22
P/N (SKU): 9010-050400-10000
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Remarks: STEEL
Alternative parts: null
Price: 47,00 € : 47,00 €
-+
23
P/N (SKU): 9010-050002
Part Name: LH STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts: null
Price: 44,00 € : 44,00 €
-+
24
P/N (SKU): 9010-050300-10000
Part Name: FRONT LOWER SWING ARM, LH
Effective: 2021-02-26
Remarks: STEEL
Alternative parts: 9DSV-050210-6K00/9DSV-050210-6K01
Price: 34,00 € : 34,00 €
25
P/N (SKU): 901B-040023
Part Name: FENDER, LH FRONT SUSPENSION
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
26
P/N (SKU): 7020-051601-30000
Part Name: SHOCK ABSORBER UPPER BUSHING
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
27
P/N (SKU): 7020-051604-30000
Part Name: ANTI-DUST SEAL
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 7020-051603-30000
Part Name: CIRCLIP
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 7020-051610-30000
Part Name: BEARING ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 9,50 € : 9,50 €
-+
30
P/N (SKU): 7020-051602-30000
Part Name: SHOCK ABSORBER LOWER BUSHING
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
