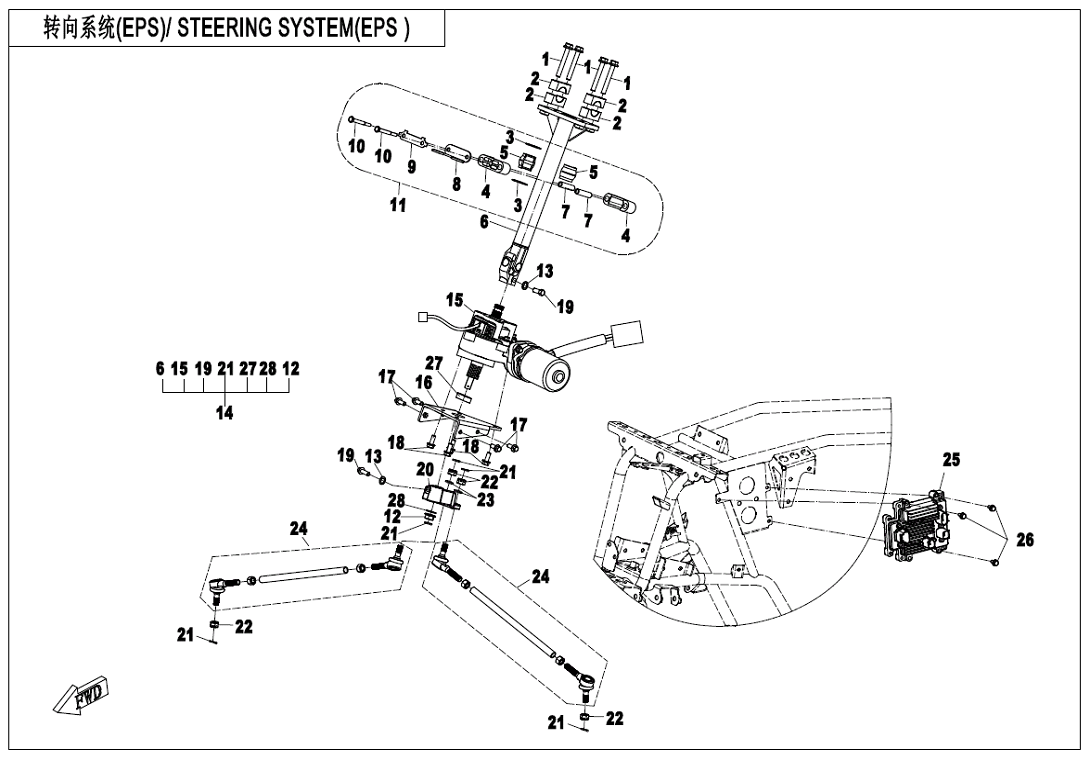

STEERING SYSTEM (EPS) - F10-2-B-V2

No.

01
P/N (SKU): 30006-080055810
Part Name: BOLT M8x55
Effective: 2021-02-26
Alternative parts:
Specification: M8x55
Price: 0,95 € : 0,95 €
-+
02
P/N (SKU): 9010-030006
Part Name: ALUM. COVER, HANDLEBAR
Effective: 2021-02-26
Alternative parts: 9DSV-100001-6K00
Price: 8,15 € : 8,15 €
03
P/N (SKU): 30502-032800N
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 32x1.8
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 7020-100601-00001
Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
05
P/N (SKU): 7020-100602
Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2021-02-26
Alternative parts:
Price: 6,25 € : 6,25 €
-+
06
P/N (SKU): 9GQ0-100320-10000
Part Name: STEERING SHAFT, EPS
Effective: 2021-02-26
Alternative parts:
Price: 60,00 € : 60,00 €
-+
07
P/N (SKU): 7020-100604-00001
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
08
P/N (SKU): 7020-100610-10000
Part Name: LINKING PLATE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 1,85 € : 1,85 €
-+
09
P/N (SKU): 7020-100603
Part Name: LOCKING PIECE
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
10
P/N (SKU): 30003-080075810
Part Name: BOLT M8x75
Effective: 2021-02-26
Alternative parts:
Specification: M8x75
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 7020-1006A0
Part Name: BUSHING, STEERING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 31,60 € : 31,60 €
-+
12
P/N (SKU): 30204-122810
Part Name: NUT M12x1.25
Effective: 2021-02-26
Alternative parts:
Specification: M12x1.25
Price: 1,05 € : 1,05 €
-+
13
P/N (SKU): 30303-080110
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 30303-080112
Specification: 8
Price: 0,55 € : 0,55 €
14
P/N (SKU): 9GQ0-106000-10000
Part Name: STEERING SYSTEM,EPS
Effective: 2021-02-26
Alternative parts: 9GQ0-106000-20000
Price: 670,10 € : 670,10 €
14
P/N (SKU): 9GQ0-106000-20000
Part Name: STEERING SYSTEM,EPS
Effective: 2021-02-26
Alternative parts:
Price: 863,50 € : 863,50 €
-+
15
P/N (SKU): 9CR6-103300-10000
Part Name: EPS DRIVER
Effective: 2021-02-26
Alternative parts: 9CR6-103300-20000
Price: 665,60 € : 665,60 €
15
P/N (SKU): 9CR6-103300-20000
Part Name: EPS DRIVER
Effective: 2021-02-26
Alternative parts:
Price: 702,40 € : 702,40 €
-+
16
P/N (SKU): 9GQ0-030040-10000
Part Name: EPS MOUNTING PLATE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 14,30 € : 14,30 €
-+
17
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x25
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 30006-100020810
Part Name: BOLT M10x20
Effective: 2021-02-26
Alternative parts: 30006-102020810
Specification: M10x20
Price: 0,95 € : 0,95 €
19
P/N (SKU): 9CR6-102003
Part Name: BOLT M8x35
Effective: 2021-02-26
Alternative parts:
Specification: M8x35
Price: 1,25 € : 1,25 €
-+
20
P/N (SKU): 9GQ0-100302-20000
Part Name: EPS STEERING ARM
Effective: 2021-02-26
Alternative parts:
Price: 26,00 € : 26,00 €
-+
21
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: 2.0x16
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 1,25 € : 1,25 €
-+
23
P/N (SKU): 30306-100112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 10
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 9GQ0-100530
Part Name: STEERING ROD
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 45,80 € : 45,80 €
-+
24
P/N (SKU): 9GQ0-100530-10000
Part Name: STEERING ROD
Effective: 2021-02-26
Alternative parts: 9GQ0-100530
Specification: SOMIC
Price: 35,60 € : 35,60 €
25
P/N (SKU): 9GQ0-151000
Part Name: EPS CONTROLLER
Effective: 2021-02-26
Price: 294,90 € : 294,90 €
26
P/N (SKU): 30006-060030810
Part Name: BOLT M6x30
Effective: 2021-02-26
Alternative parts:
Specification: M6x30
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 9CR6-103003
Part Name: SPLINE SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
28
P/N (SKU): 30306-120112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 12
Price: 0,55 € : 0,55 €
-+
