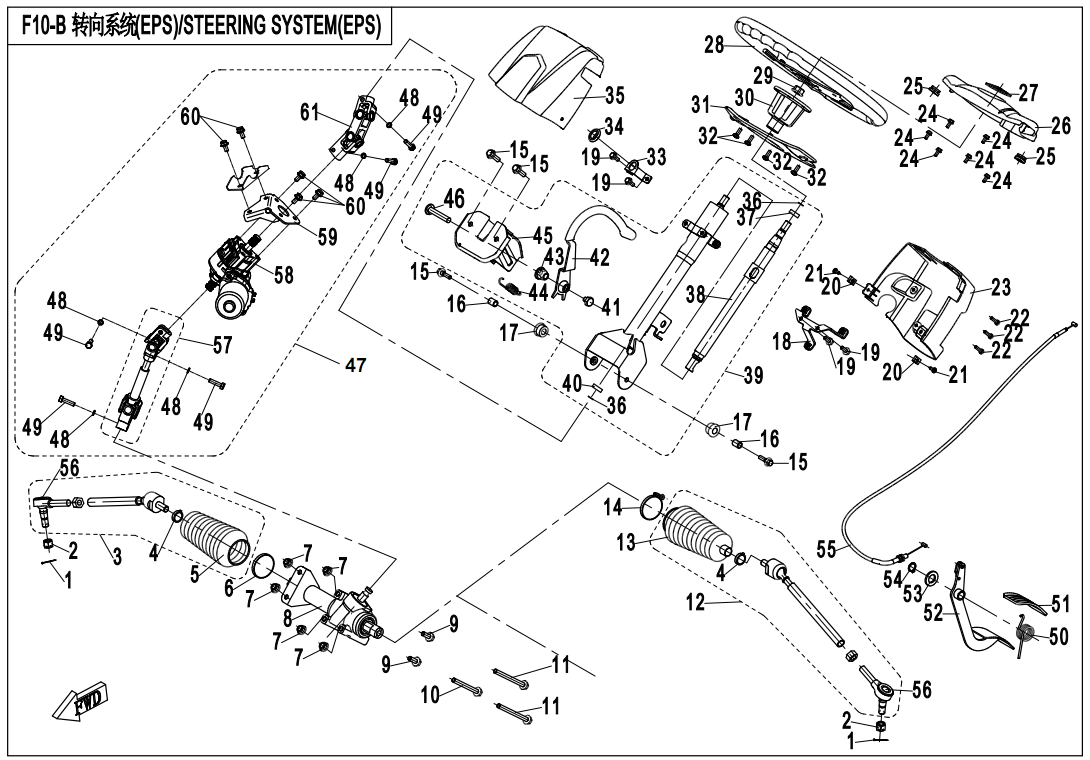

STEERING SYSTEM(EPS) - F10-B

STEERING SYSTEM(EPS) - F10-B

No.

01
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts: null
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M10x1.25
Price: 2,00 € : 2,00 €
-+
03
P/N (SKU): 703A-104200-20000
Part Name: RH STEERING ROD ASSY
Effective: 2021-02-26
Alternative parts: 30903-0252010+703A-104200-30000
Price: 69,00 € : 69,00 €
03
P/N (SKU): 703A-104200-10000
Part Name: RH STEERING ROD ASSY
Effective: 2021-02-26
Alternative parts: 703A-104200-20000
Price: 61,00 € : 61,00 €
03
P/N (SKU): 703A-104200
Part Name: RH STEERING ROD ASSY
Effective: 2021-02-26
Alternative parts: 703A-104200-30000
Price: 71,00 € : 71,00 €
04
P/N (SKU): 9030-101122
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts: null
Specification: SOMIC
Price: 1,50 € : 1,50 €
05
P/N (SKU): 9060-104001
Part Name: RH SLEEVE, TIE-ROD
Effective: 2021-02-26
Alternative parts: 9060-104001-10000
Specification: SOMIC
Price: 11,00 € : 11,00 €
06
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
07
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 9060-104060
Part Name: STEERING MOTOR
Effective: 2021-02-26
Alternative parts: 5BRV-104060-1000
Price: 101,00 € : 101,00 €
-+
09
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30019-080075810
Part Name: BOLT M8x75
Effective: 2021-02-26
Alternative parts: null
Specification: M8x75
Price: 2,00 € : 2,00 €
11
P/N (SKU): 30019-080090810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8x90@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
12
P/N (SKU): 703A-104100-20000
Part Name: LH STEERING ROD ASSY
Effective: 2021-02-26
Alternative parts: 30903-0252010+703A-104100-30000
Price: 71,00 € : 71,00 €
12
P/N (SKU): 703A-104100-10000
Part Name: LH STEERING ROD ASSY
Effective: 2021-02-26
Alternative parts: 703A-104100-20000
Price: 61,00 € : 61,00 €
12
P/N (SKU): 703A-104100
Part Name: LH STEERING ROD ASSY
Effective: 2021-02-26
Alternative parts: 703A-104100-30000
Price: 69,00 € : 69,00 €
13
P/N (SKU): 9060-104002
Part Name: LH SLEEVE, TIE-ROD
Effective: 2021-02-26
Alternative parts: 9060-104002-10000
Specification: SOMIC
Price: 9,00 € : 9,00 €
14
P/N (SKU): 9010-020007
Part Name: A-TYPE SCREW CLAMP
Effective: 2021-02-26
Alternative parts: null
Specification: 50-70
Price: 3,00 € : 3,00 €
-+
15
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9060-100008
Part Name: STEERING COLUMN METAL BUSHING
Effective: 2021-02-26
Alternative parts: 9060-100008-00001
Price: 2,00 € : 2,00 €
17
P/N (SKU): 9060-100009
Part Name: STEERING COLUMN NYLON BUSHING
Effective: 2021-02-26
Alternative parts: null
Price: 6,00 € : 6,00 €
-+
18
P/N (SKU): 7030-100010
Part Name: BRACKET, STEERING COVER
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
19
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
20
P/N (SKU): 8010-000002
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts: F07V-040002-1000
Specification: ST4.2
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30110-420130010
Part Name: SELF-TAPPING SCREW_ST4.2x13
Effective: 2021-02-26
Alternative parts: 30110-421130010
Specification: PERFORMANCE GRADE 4.8_SURFACE TREATMENT: COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 30105-050016410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: null
Specification: M5x16@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
23
P/N (SKU): 7030-040312
Part Name: STEERING COLUMN REAR COVER
Effective: 2021-02-26
Alternative parts: null
Price: 9,00 € : 9,00 €
24
P/N (SKU): 30006-050016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M5×16
Price: 1,50 € : 1,50 €
25
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 7030-102002
Part Name: STEERING WHEEL UPPER DECO COVER
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
27
P/N (SKU): 9060-190001
Part Name: CFMOTO LOGO 58x49
Effective: 2021-02-26
Alternative parts: null
Specification: 58x49
Price: 19,00 € : 19,00 €
-+
28
P/N (SKU): 7030-102100
Part Name: STEERING WHEEL
Effective: 2021-02-26
Alternative parts: null
Price: 56,00 € : 56,00 €
29
P/N (SKU): 30204-122810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-02-26
Alternative parts: null
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 7030-100002
Part Name: FIXED SEAT, STEERING WHEEL
Effective: 2021-02-26
Alternative parts: null
Price: 24,00 € : 24,00 €
-+
31
P/N (SKU): 7030-102003
Part Name: STEERING WHEEL LOWER DECO COVER
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
32
P/N (SKU): 30112-060016410
Part Name: SCREW ASSY
Effective: 2021-02-26
Alternative parts: null
Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 7030-100001
Part Name: UPPER BRACKET, STEERING COVER
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
34
P/N (SKU): 7020-040209
Part Name: FIXING RUBBER BUSHING
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
35
P/N (SKU): 7030-040311
Part Name: STEERING COLUMN FRONT COVER
Effective: 2021-02-26
Alternative parts: null
Price: 8,00 € : 8,00 €
-+
36
P/N (SKU): 30801-02005
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts: null
Specification: 20
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 30400-02081
Part Name: BEARING
Effective: 2021-02-26
Alternative parts: null
Specification: 6904Z
Price: 5,00 € : 5,00 €
38
P/N (SKU): 7030-101010
Part Name: STEERING COLUMN ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 35,00 € : 35,00 €
39
P/N (SKU): 7030-101000
Part Name: STEERING COLUMN ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 123,00 € : 123,00 €
40
P/N (SKU): 30400-02005
Part Name: DEEP GROOVE BALL BEARING
Effective: 2021-02-26
Alternative parts: null
Specification: 6804Z
Price: 8,00 € : 8,00 €
-+
41
P/N (SKU): 7030-103003
Part Name: LOCK BOLT
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
42
P/N (SKU): 7030-103200
Part Name: LOCK SWING ARM
Effective: 2021-02-26
Alternative parts: null
Price: 26,00 € : 26,00 €
43
P/N (SKU): 7030-103002
Part Name: ADJUSTING NUT
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
44
P/N (SKU): 7030-103004
Part Name: RETURN SPRING, LOCK
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
45
P/N (SKU): 7030-103100
Part Name: TIGHTEN BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 25,00 € : 25,00 €
46
P/N (SKU): 7030-103001
Part Name: PIN SHAFT
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
47
P/N (SKU): 7030-106000
Part Name: EPS KITS
Effective: 2021-02-26
Alternative parts: null
Price: 715,00 € : 715,00 €
-+
48
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
49
P/N (SKU): 9CR6-102003
Part Name: BOLT M8x35
Effective: 2021-02-26
Alternative parts: null
Specification: M8x35
Price: 3,00 € : 3,00 €
50
P/N (SKU): 7030-105001
Part Name: TORSION SPRING, THROTTLE
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
51
P/N (SKU): 7030-100303
Part Name: RUBBER BUSHING, THROTTLE PEDAL
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
52
P/N (SKU): 7030-100300
Part Name: PEDAL ASSY, THROTTLE
Effective: 2021-02-26
Alternative parts: null
Price: 22,00 € : 22,00 €
53
P/N (SKU): 30306-140112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: φ14
Price: 1,50 € : 1,50 €
54
P/N (SKU): 30801-01405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts: null
Specification: 14
Price: 1,50 € : 1,50 €
-+
55
P/N (SKU): 7030-100600
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts: 7030-100600-10000
Price: 19,00 € : 19,00 €
-+
56
P/N (SKU): 9060-101170
Part Name: STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts: null
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
56
P/N (SKU): 9030-101170
Part Name: STEERING KNUCKLE ASSY
Effective: 2021-02-26
Alternative parts: 9060-101170
Specification: SOMIC
Price: 19,00 € : 19,00 €
57
P/N (SKU): 7030-106400
Part Name: UNIVERSAL SHAFT ASSY, OUTPUT END
Effective: 2021-02-26
Alternative parts: null
Price: 78,00 € : 78,00 €
58
P/N (SKU): 7030-106200
Part Name: EPS ASSY
Effective: 2021-02-26
Alternative parts: 7030-106200-00001
Price: 607,00 € : 607,00 €
59
P/N (SKU): 7030-106010
Part Name: EPS SUPPORT
Effective: 2021-02-26
Alternative parts: null
Price: 9,00 € : 9,00 €
60
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
61
P/N (SKU): 7030-106300
Part Name: CROSS SHAFT ASSY, INPUT END
Effective: 2021-02-26
Alternative parts: null
Price: 79,00 € : 79,00 €
-+
