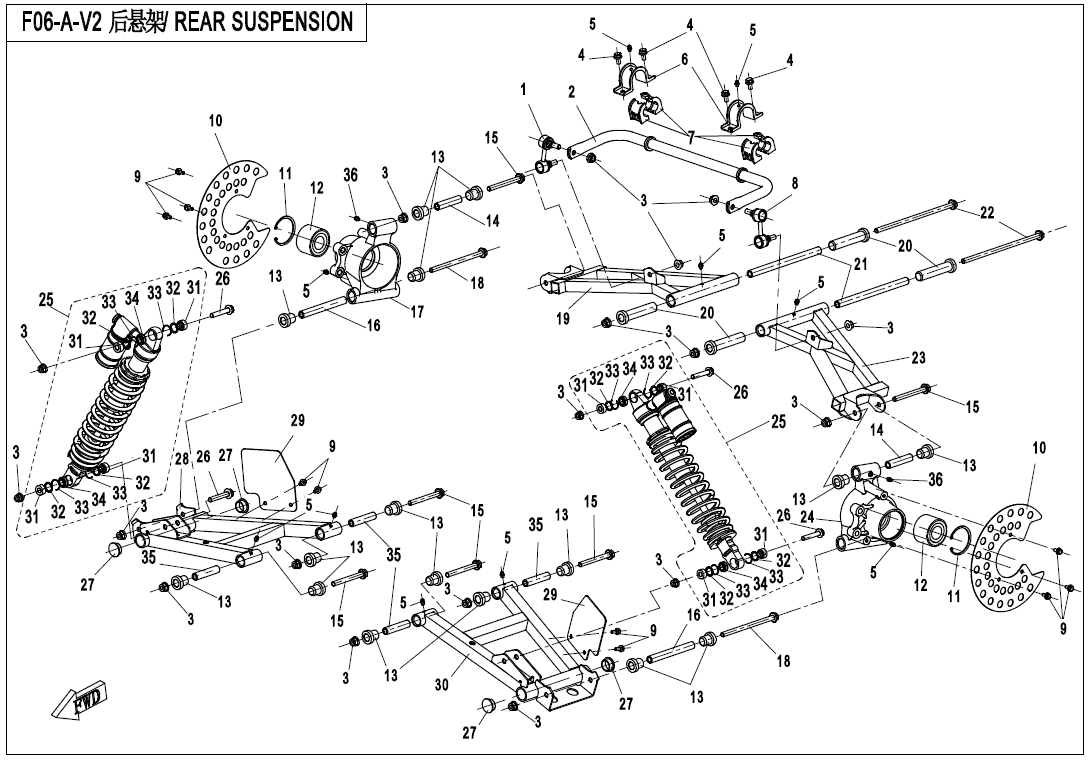

REAR SUSPENSION(2017) - F06-A-V2

REAR SUSPENSION(2017) - F06-A-V2

No.

01
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 28,00 € : 28,00 €
01
P/N (SKU): 9010-060800-20000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
02
P/N (SKU): 7000-060610-10000
Part Name: REAR SWAY BAR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 42,00 € : 42,00 €
-+
03
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Specification: 45 DEGREE
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 9030-060002
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 5,00 € : 5,00 €
-+
07
P/N (SKU): 7000-060003
Part Name: SWAY BAR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
08
P/N (SKU): 9010-060700-20000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
08
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 77,00 € : 77,00 €
09
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
10
P/N (SKU): 9060-060001
Part Name: REAR BRAKE DISC GUARD
Effective: 2021-02-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
11
P/N (SKU): 30800-06300
Part Name: CIRCLIP FOR HOLE
Effective: 2021-02-26
Alternative parts:
Specification: 63
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30499-03081
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts:
Specification: DAC3063W
Price: 38,00 € : 38,00 €
-+
13
P/N (SKU): 9060-050003
Part Name: SHORT BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
14
P/N (SKU): 9060-060701-10001
Part Name: REAR WHEEL SHAFT CARRIER UPPER MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060701-10002
Price: 3,50 € : 3,50 €
15
P/N (SKU): 30001-102095110
Part Name: BOLT M10x1.25x95
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x95
Price: 2,50 € : 2,50 €
-+
16
P/N (SKU): 9060-060702-10001
Part Name: REAR WHEEL SHAFT CARRIER LOWER MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060702-10002
Price: 6,00 € : 6,00 €
17
P/N (SKU): 9060-060703-20000
Part Name: REAR LH WHEEL SHAFT SUPPORT
Effective: 2021-02-26
Alternative parts:
Price: 139,00 € : 139,00 €
-+
18
P/N (SKU): 9060-060704
Part Name: REAR WHEEL SHAFT BRACKET LOWER MOUNTING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
19
P/N (SKU): 7000-060110-0E800
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 46,00 € : 46,00 €
-+
19
P/N (SKU): 7000-060110-0R000
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-060110-0R001
Specification: RED
Price: 51,00 € : 51,00 €
19
P/N (SKU): 7000-060110
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-060110-00001
Specification: ELECTROPHORESIS BLACK
Price: 51,00 € : 51,00 €
19
P/N (SKU): 7000-060110-0V200
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-060110-0V201
Specification: PEARL WHITE
Price: 51,00 € : 51,00 €
19
P/N (SKU): 7000-060110-00001
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 36,00 € : 36,00 €
-+
19
P/N (SKU): 7000-060110-0E801
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CORAL BLUE
Price: 51,00 € : 51,00 €
-+
19
P/N (SKU): 7000-060110-0R001
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: RED
Price: 51,00 € : 51,00 €
-+
19
P/N (SKU): 7000-060110-0V201
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: PEARL WHITE
Price: 51,00 € : 51,00 €
-+
20
P/N (SKU): 9060-050002
Part Name: LONG BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 10,00 € : 10,00 €
-+
21
P/N (SKU): 9060-060101-00001
Part Name: REAR UPPER SWING ARM MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060101-00002
Price: 5,00 € : 5,00 €
22
P/N (SKU): 4060-060101
Part Name: REAR SWING ARM MOUNTING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 5,00 € : 5,00 €
-+
23
P/N (SKU): 7000-060310
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-060310-00001
Specification: ELECTROPHORESIS BLACK
Price: 51,00 € : 51,00 €
23
P/N (SKU): 7000-060310-0R000
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-060310-0R001
Specification: RED
Price: 51,00 € : 51,00 €
23
P/N (SKU): 7000-060310-0E800
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 46,00 € : 46,00 €
-+
23
P/N (SKU): 7000-060310-0V200
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 7000-060310-0V201
Specification: PEARL WHITE
Price: 51,00 € : 51,00 €
23
P/N (SKU): 7000-060310-00001
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 36,00 € : 36,00 €
-+
23
P/N (SKU): 7000-060310-0R001
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: RED
Price: 51,00 € : 51,00 €
-+
23
P/N (SKU): 7000-060310-0E801
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CORAL BLUE
Price: 51,00 € : 51,00 €
-+
23
P/N (SKU): 7000-060310-0V201
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: PEARL WHITE
Price: 51,00 € : 51,00 €
-+
24
P/N (SKU): 9060-060803-20000
Part Name: HOLDER, REAR RH WHEEL SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 139,00 € : 139,00 €
-+
25
P/N (SKU): 7000-060500-1E800
Part Name: REAR SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts:
Specification: CORAL BLUE
Price: 299,00 € : 299,00 €
-+
25
P/N (SKU): 7000-060500-1R000
Part Name: REAR SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts:
Specification: RED
Price: 299,00 € : 299,00 €
-+
25
P/N (SKU): 7000-060500-10000
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: WHITE
Price: 294,00 € : 294,00 €
-+
26
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×55
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 9060-060002
Part Name: REAR SUSPENSION PLUG
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): 7000-060210-0E800
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CORAL BLUE
Price: 57,00 € : 57,00 €
-+
28
P/N (SKU): 7000-060210
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 50,00 € : 50,00 €
-+
28
P/N (SKU): 7000-060210-0R000
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: RED
Price: 57,00 € : 57,00 €
-+
28
P/N (SKU): 7000-060210-0V200
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: PEARL WHITE
Price: 51,00 € : 51,00 €
-+
29
P/N (SKU): 9060-050201
Part Name: FENDER, SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 7,50 € : 7,50 €
-+
30
P/N (SKU): 7000-060410-0R000
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: RED
Price: 57,00 € : 57,00 €
-+
30
P/N (SKU): 7000-060410-0E800
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CORAL BLUE
Price: 57,00 € : 57,00 €
-+
30
P/N (SKU): 7000-060410
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 50,00 € : 50,00 €
-+
30
P/N (SKU): 7000-060410-0V200
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: PEARL WHITE
Price: 51,00 € : 51,00 €
-+
31
P/N (SKU): 7000-050504
Part Name: SPACER RING 1
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
32
P/N (SKU): 7000-050501
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
33
P/N (SKU): 7000-050502
Part Name: CIRCLIP
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
34
P/N (SKU): 7000-050510
Part Name: BEARING ASSY
Effective: 2021-02-26
Alternative parts:
Price: 20,00 € : 20,00 €
-+
35
P/N (SKU): 9060-060201
Part Name: REAR LOWER SWING ARM MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060201-00001
Price: 7,50 € : 7,50 €
35
P/N (SKU): 9060-060201-00001
Part Name: REAR LOWER SWING ARM MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060201-00002
Price: 2,50 € : 2,50 €
36
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Remarks: 3120100 CAN BE SUPERSEDED BY 3121400 OR 3121401
Alternative parts:
Price: 1,50 € : 1,50 €
-+
36
P/N (SKU): 3121400
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Specification: 90 DEGREE
Price: 2,00 € : 2,00 €
-+
