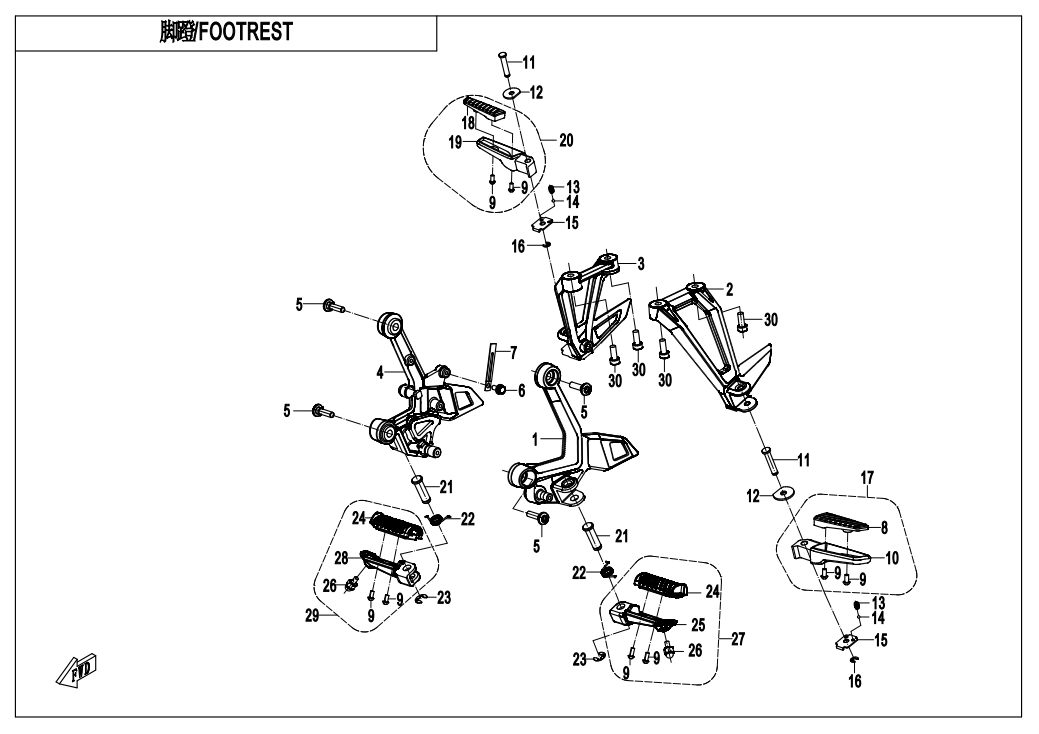

FOOTREST (ABS) - F14-B

FOOTREST (ABS) - F14-B

No.

01
P/N (SKU): 6KM0-140100
Part Name: FRONT LH FOOTREST BRACKET ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 66,00 € : 66,00 €
02
P/N (SKU): 6KM0-140001-10000
Part Name: REAR LH FOOTREST BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 73,00 € : 73,00 €
03
P/N (SKU): 6KM0-140002-10000
Part Name: REAR RH FOOTREST BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 62,00 € : 62,00 €
04
P/N (SKU): 6KM0-140200
Part Name: FRONT RH FOOTREST BRACKET ASSY
Effective: 2021-02-26
Alternative parts: 6KM0-140200-10000
Price: 72,00 € : 72,00 €
05
P/N (SKU): 6100-140103
Part Name: BOLT M8x25
Effective: 2021-02-26
Alternative parts: null
Specification: M8X25
Price: 4,50 € : 4,50 €
06
P/N (SKU): 30102-060012810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×12
Price: 1,50 € : 1,50 €
07
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2021-02-26
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 6KJ0-140132
Part Name: RUBBER, LH FOOT PEDAL
Effective: 2021-02-26
Alternative parts: 6KMV-140132-M100
Price: 6,50 € : 6,50 €
-+
09
P/N (SKU): 30105-050014410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2021-02-26
Alternative parts: null
Specification: M5×14
Price: 1,50 € : 1,50 €
10
P/N (SKU): 6KJ0-140151-2V600
Part Name: REAR LH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: 6KJV-140151-8000-0V600
Specification: MATTE SILVER WHITE
Price: 14,00 € : 14,00 €
11
P/N (SKU): A000-140142
Part Name: PIN SHAFT 8
Effective: 2021-02-26
Alternative parts: null
Specification: Dia 8
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2021-02-26
Alternative parts: 6HVV-140006-1000
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 30802-00605
Part Name: E RINGS
Effective: 2021-02-26
Alternative parts: null
Specification: 6
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 6KJ0-140150-1V600
Part Name: REAR LH FOOTREST ASSY
Effective: 2021-02-26
Alternative parts: null
Specification: MATTE SILVER WHITE
Price: 18,00 € : 18,00 €
18
P/N (SKU): 6KJ0-140142
Part Name: RH FOOTREST RUBBER ASSY
Effective: 2021-02-26
Alternative parts: 6KMV-140142-M100
Price: 8,50 € : 8,50 €
-+
19
P/N (SKU): 6KJ0-140161-2V600
Part Name: REAR RH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: 6KJV-140161-8000-0BP00
Specification: MATTE SILVER WHITE
Price: 14,00 € : 14,00 €
20
P/N (SKU): 6KJ0-140160-1V600
Part Name: REAR RH FOOTREST ASSY
Effective: 2021-02-26
Alternative parts: null
Specification: MATTE SILVER WHITE
Price: 18,00 € : 18,00 €
21
P/N (SKU): A000-140141
Part Name: PIN SHAFT Dia 12
Effective: 2021-02-26
Alternative parts: null
Specification: Dia 12
Price: 3,50 € : 3,50 €
22
P/N (SKU): A000-140103-10000
Part Name: SPRING
Effective: 2021-02-26
Alternative parts: A000-140103-20000
Price: 2,00 € : 2,00 €
23
P/N (SKU): 30802-00905
Part Name: E RINGS
Effective: 2021-02-26
Alternative parts: 30802-00903
Specification: 9
Price: 1,50 € : 1,50 €
24
P/N (SKU): 6KM0-140170
Part Name: RUBBERS, FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 6,00 € : 6,00 €
25
P/N (SKU): 6KM0-140131-0V600
Part Name: FRONT LH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: 6KM0-140131-1V600
Specification: MATTE SILVER WHITE
Price: 16,00 € : 16,00 €
26
P/N (SKU): A010-140123
Part Name: LIMIT BOLT
Effective: 2021-02-26
Alternative parts: 6KM0-130123
Price: 5,00 € : 5,00 €
27
P/N (SKU): 6KM0-140130-0V600
Part Name: FRONT LH FOOTREST ASSY
Effective: 2021-02-26
Alternative parts: 6KM0-140130-1V600
Specification: MATTE SILVER WHITE
Price: 24,00 € : 24,00 €
28
P/N (SKU): 6KM0-140141-0V600
Part Name: FRONT RH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: 6KM0-140141-1V600
Specification: MATTE SILVER WHITE
Price: 16,00 € : 16,00 €
29
P/N (SKU): 6KM0-140140-0V600
Part Name: FRONT RH FOOTREST ASSY
Effective: 2021-02-26
Alternative parts: 6KM0-140140-1V600
Specification: MATTE SILVER WHITE
Price: 24,00 € : 24,00 €
30
P/N (SKU): 30102-080020810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: M8x20@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
