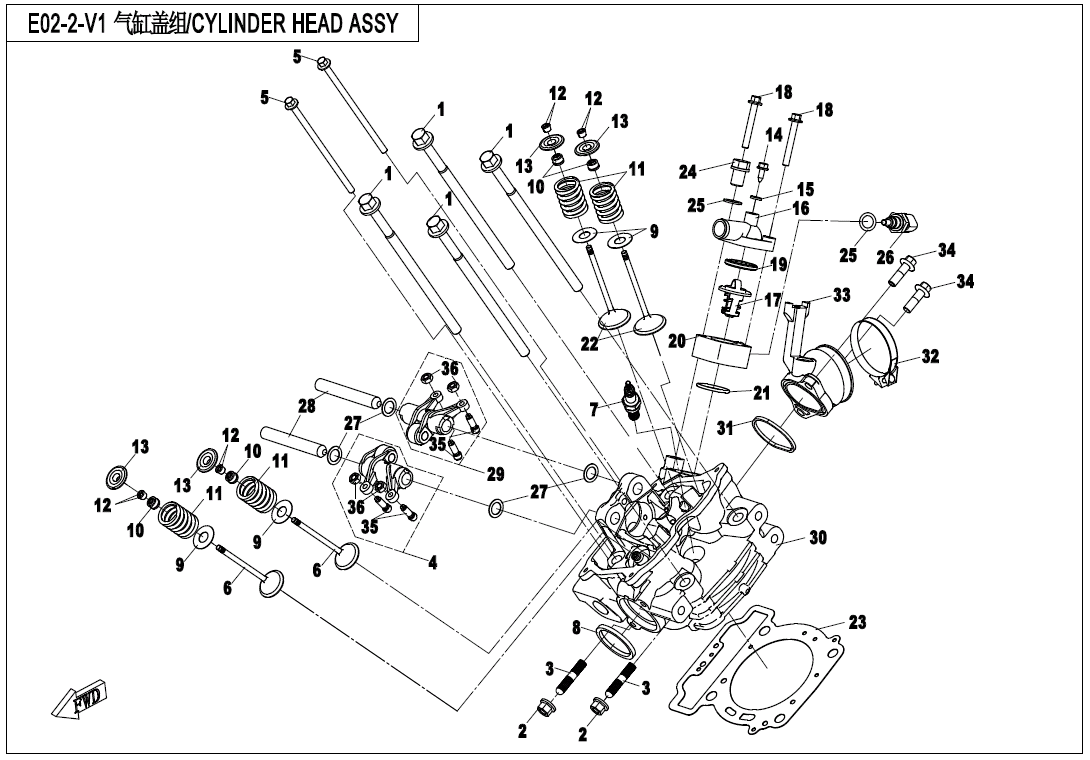

CYLINDER HEAD ASSY - E02-2-V1

CYLINDER HEAD ASSY - E02-2-V1

No.

01
P/N (SKU): 0700-022014
Part Name: CYLINDER HEAD BOLT
Effective: 2021-02-26
Alternative parts: 0700-022014-10000
Specification: M10x176
Price: 3,50 € : 3,50 €
02
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2021-02-26
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0180-022003-0010
Part Name: STUD M8x42
Effective: 2021-02-26
Alternative parts: 0180-022003-00001
Specification: M8x42
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0800-022600-1000
Part Name: SWING ARM, EXHAUST
Effective: 2021-02-26
Alternative parts: null
Price: 28,00 € : 28,00 €
-+
05
P/N (SKU): 0GQ0-022001
Part Name: BOLT M6x120
Effective: 2021-02-26
Alternative parts: 0GQ0-022001-00001
Specification: M6X120
Price: 2,00 € : 2,00 €
06
P/N (SKU): 0800-022005
Part Name: EXHAUST VALVE
Effective: 2021-02-26
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
07
P/N (SKU): 0800-022800
Part Name: SPARK PLUG
Effective: 2021-02-26
Alternative parts: null
Price: 15,00 € : 15,00 €
08
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
09
P/N (SKU): 0800-022008
Part Name: LOWER SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0010-022500
Part Name: VALVE STEM SEAL RING ASSY
Effective: 2021-02-26
Alternative parts: 0010-022500-10000
Price: 1,50 € : 1,50 €
11
P/N (SKU): 0800-022006
Part Name: SPRING, VALVE
Effective: 2021-02-26
Alternative parts: 0800-022006-10000/0800-022006-10001
Price: 2,50 € : 2,50 €
12
P/N (SKU): 0800-022016
Part Name: LOCK CLIP, VALVE
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
13
P/N (SKU): 0800-022007
Part Name: UPPER SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
14
P/N (SKU): 30132-480130030
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: null
Specification: ST4.8x13@CHROME-PLATED
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 0800-022011
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 0800-022011-00001
Specification: 5.3x11x1.5
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0800-022013
Part Name: THERMOSTAT CAP
Effective: 2021-02-26
Alternative parts: 0800-022013-10000
Price: 5,00 € : 5,00 €
17
P/N (SKU): 0800-022700
Part Name: THERMOSTAT
Effective: 2021-02-26
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
18
P/N (SKU): 0180-013208-0010
Part Name: BOLT M6x45
Effective: 2021-02-26
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 0010-022802
Part Name: SEAL RING
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
20
P/N (SKU): 0GR0-022003
Part Name: THERMOSTAT SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 5,50 € : 5,50 €
-+
21
P/N (SKU): 30502-028000N
Part Name: O-RING
Effective: 2021-02-26
Alternative parts: null
Specification: 28x2.65
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0800-022004
Part Name: VALVE, INTAKE
Effective: 2021-02-26
Alternative parts: null
Price: 13,00 € : 13,00 €
-+
23
P/N (SKU): 0800-022200
Part Name: CYLINDER HEAD GASKET
Effective: 2021-02-26
Alternative parts: 0800-022200-00002
Price: 19,00 € : 19,00 €
24
P/N (SKU): 0800-022015-00001
Part Name: SCREW PLUG M12x1.5
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 0800-022014
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: 12.2x18x1.5
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 018B-022810
Part Name: COOLANT TEMP. SENSOR
Effective: 2021-02-26
Alternative parts: null
Price: 27,00 € : 27,00 €
-+
27
P/N (SKU): 0800-022002
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: 12.3x18.5x0.5
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 0800-022001
Part Name: ROCKER ARM SHAFT
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
29
P/N (SKU): 0800-022500-1000
Part Name: SWING ARM, INTAKE
Effective: 2021-02-26
Alternative parts: null
Price: 28,00 € : 28,00 €
-+
30
P/N (SKU): 0JY0-022100
Part Name: CYLINDER HEAD ASSY
Effective: 2021-02-26
Alternative parts: 0010-022500-10000+0800-022500-20000+0800-022600-20000+0JY0-022100-10001
Price: 92,00 € : 92,00 €
31
P/N (SKU): 0800-025002
Part Name: INLET AIR HOSE SEAL RING
Effective: 2021-02-26
Alternative parts: 080V-025002-1000
Price: 1,50 € : 1,50 €
32
P/N (SKU): 01A0-110005
Part Name: CLAMP 57
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
33
P/N (SKU): 0GR0-022900
Part Name: FUEL INJECTOR SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 31,00 € : 31,00 €
-+
34
P/N (SKU): 0130-011114-0010
Part Name: BOLT M8x25
Effective: 2021-02-26
Alternative parts: 0130-011114-00001
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
35
P/N (SKU): 0800-022510
Part Name: ADJUST SCREW, VALVE CLEARANCE
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
36
P/N (SKU): 0800-022506
Part Name: ADJUST NUT, VALVE CLEARANCE
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
