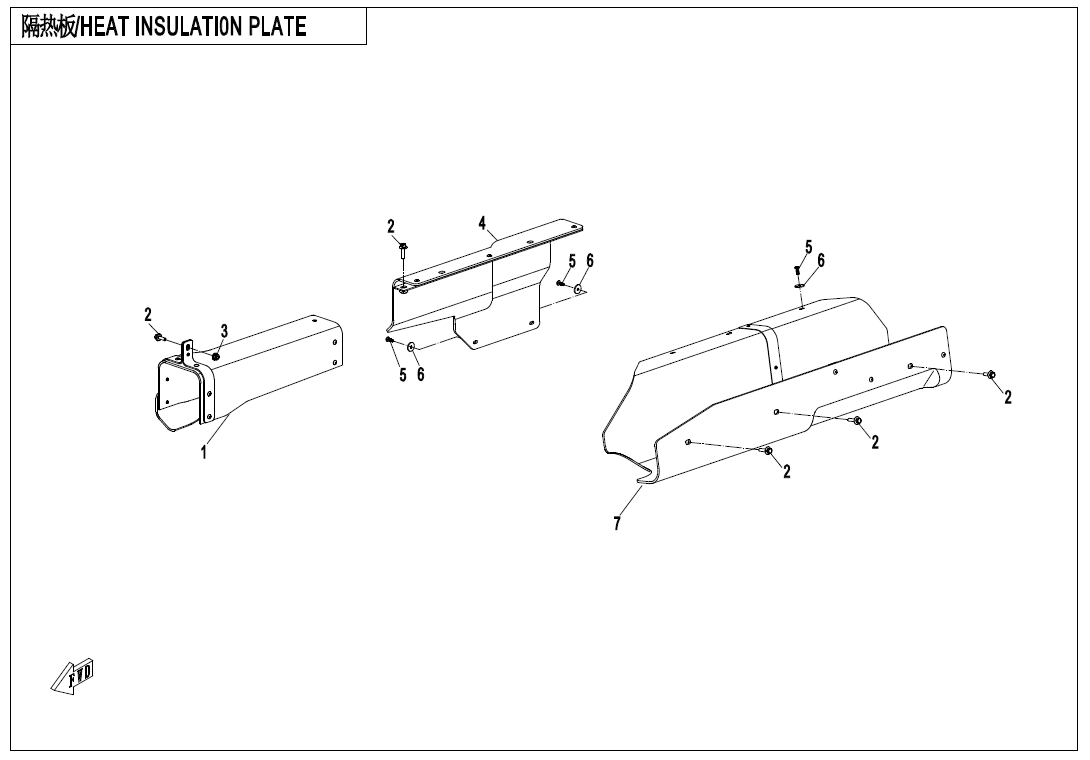

HEAT INSULATION PLATE - F02-2

No.

01
P/N (SKU): 9AWA-000410
Part Name: FRONT HEAT INSULATION COVER ASSY.
Effective: 2021-02-26
Alternative parts:
Price: 22,70 € : 22,70 €
-+
02
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts: 30006-060016870
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 30204-060810
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,05 € : 1,05 €
-+
04
P/N (SKU): 9AWA-000430
Part Name: REAR OUTER HEAT INSULATOR ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-000430-10000
Price: 16,90 € : 16,90 €
05
P/N (SKU): 30118-480160010
Part Name: SELF-TAPPING SCREW ST4.8x16
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8x16
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 6
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 9AWA-000420
Part Name: REAR INNER HEAT INSULATION ASSY
Effective: 2021-02-26
Alternative parts:
Price: 34,80 € : 34,80 €
-+
