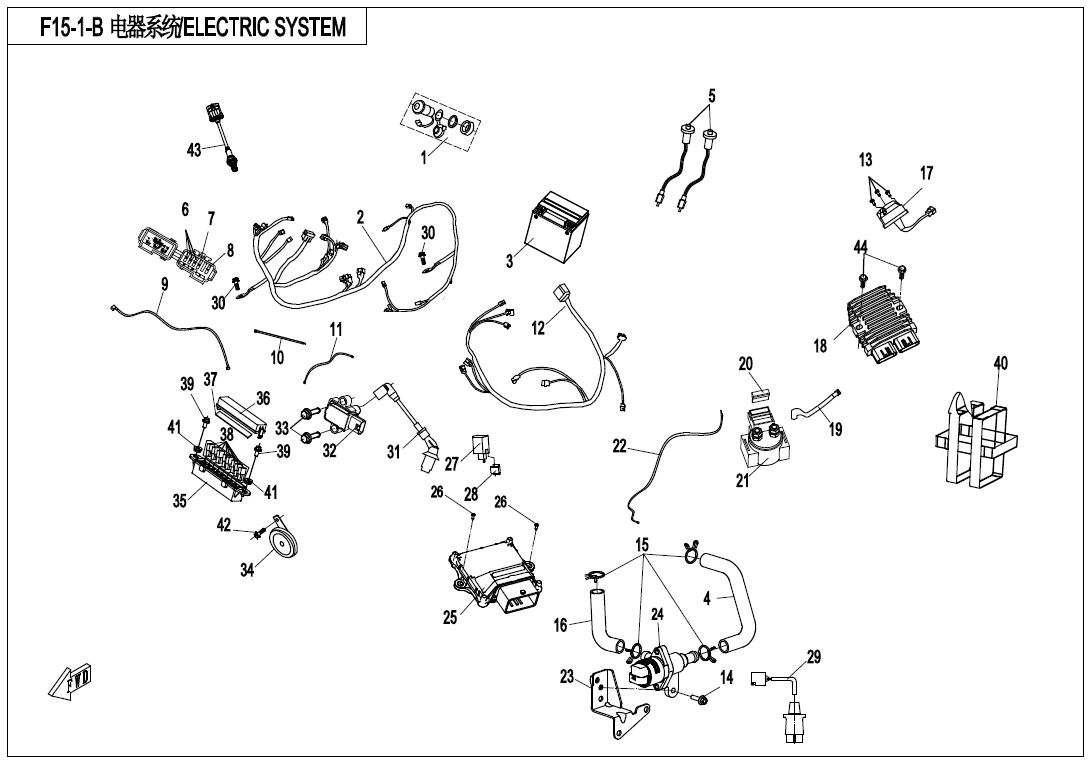

ELECTRIC SYSTEM - F15-1-B

ELECTRIC SYSTEM - F15-1-B

No.

01
P/N (SKU): 7020-150500
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 15,20 € : 15,20 €
-+
02
P/N (SKU): 9CS0-150100
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 9CS0-150100-00001
Price: 234,90 € : 234,90 €
03
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 155,00 € : 155,00 €
03
P/N (SKU): 31023002
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: YUASA, 12V30Ah
Price: 553,00 € : 553,00 €
04
P/N (SKU): 9GQA-001001
Part Name: STEPPER MOTOR INLET PIPE
Effective: 2021-02-26
Alternative parts: 9GQA-001001-00001
Price: 16,92 € : 16,92 €
-+
05
P/N (SKU): A010-170300-2000
Part Name: ADJUSTING BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts:
Price: 8,40 € : 8,40 €
-+
06
P/N (SKU): 806A-151303
Part Name: FUSE
Effective: 2021-02-26
Alternative parts: 806A-151305
Specification: 15A
Price: 3,70 € : 3,70 €
07
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 2,20 € : 2,20 €
-+
08
P/N (SKU): 8080-151301
Part Name: FUSE 5A
Effective: 2021-02-26
Alternative parts:
Specification: 5A
Price: 1,00 € : 1,00 €
-+
09
P/N (SKU): 7020-150210
Part Name: NEGATIVE CABLE, LONG
Effective: 2021-02-26
Alternative parts:
Price: 18,70 € : 18,70 €
-+
10
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,30 € : 1,30 €
-+
11
P/N (SKU): 9CR6-150240
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts:
Price: 14,70 € : 14,70 €
-+
12
P/N (SKU): 9CRB-150300
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 83,00 € : 83,00 €
-+
13
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
14
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts:
Specification: M6x12
Price: 1,00 € : 1,00 €
-+
15
P/N (SKU): 30601-118010
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: A18
Price: 1,00 € : 1,00 €
-+
16
P/N (SKU): 9GQA-001002
Part Name: STEPPER MOTOR EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 11,35 € : 11,35 €
-+
17
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 14,80 € : 14,80 €
-+
18
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: HIGH POWER, CHINESE
Price: 161,70 € : 161,70 €
-+
19
P/N (SKU): 9CR6-150230
Part Name: BATTERY POSITIVE WIRE
Effective: 2021-02-26
Alternative parts: 7020-150230
Price: 14,90 € : 14,90 €
20
P/N (SKU): 9010-150301
Part Name: FUSE
Effective: 2021-02-26
Alternative parts:
Specification: 22A
Price: 1,80 € : 1,80 €
-+
21
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 24,40 € : 24,40 €
-+
22
P/N (SKU): 9CR6-150220
Part Name: CABLE,STARTING MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 23,80 € : 23,80 €
-+
22
P/N (SKU): 7020-150220
Part Name: CABLE, STARTING MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 18,30 € : 18,30 €
-+
23
P/N (SKU): 9GQA-030010
Part Name: STEPPER MOTOR BRACKET
Effective: 2021-02-26
Alternative parts: 9GQA-030010-20000
Price: 2,40 € : 2,40 €
24
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 88,50 € : 88,50 €
-+
25
P/N (SKU): 0GR0-174000-60000
Part Name: ECU
Effective: 2021-02-26
Alternative parts:
Specification: BOSCH MSE6.0
Price: 240,00 € : 240,00 €
-+
26
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
27
P/N (SKU): 6NT1-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 18,70 € : 18,70 €
-+
28
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
29
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 15,66 € : 15,66 €
-+
30
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,00 € : 1,00 €
31
P/N (SKU): 0GR0-178000
Part Name: HIGH-TENSION CABLE
Effective: 2021-02-26
Alternative parts: 0GR0-178000-10000
Price: 15,30 € : 15,30 €
32
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 39,60 € : 39,60 €
-+
33
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×25
Price: 1,00 € : 1,00 €
-+
34
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 9,90 € : 9,90 €
-+
35
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 7,20 € : 7,20 €
-+
36
P/N (SKU): 7020-040412
Part Name: COVER, RELAY BOX
Effective: 2021-02-26
Alternative parts: 7020-040412-10000
Price: 6,10 € : 6,10 €
37
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER, RELAY BOX COVER
Effective: 2021-02-26
Alternative parts:
Price: 1,70 € : 1,70 €
-+
38
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 6,70 € : 6,70 €
-+
39
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,00 € : 1,00 €
-+
40
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2021-02-26
Alternative parts:
Price: 3,60 € : 3,60 €
-+
41
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
42
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×14
Price: 1,00 € : 1,00 €
-+
43
P/N (SKU): 018B-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 109,80 € : 109,80 €
-+
44
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×30
Price: 1,00 € : 1,00 €
-+
