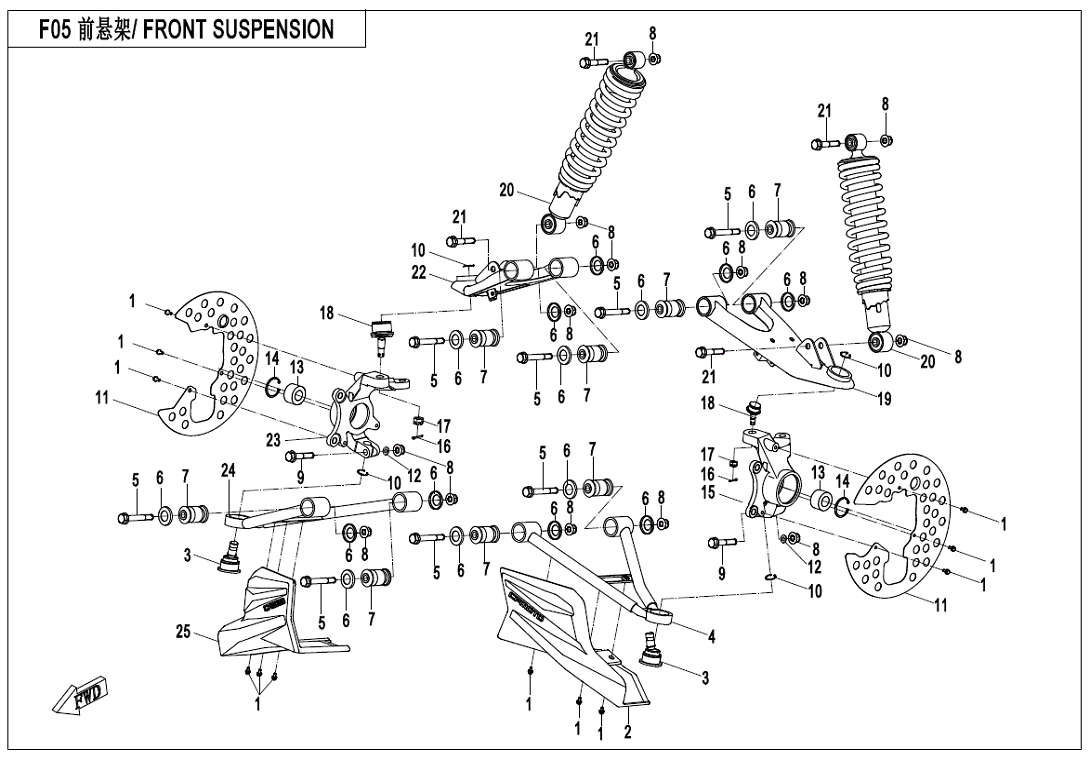

FRONT SUSPENSION - F05

FRONT SUSPENSION - F05

No.

01
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 9GQ0-044041
Part Name: PANEL, LH FRONT SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
03
P/N (SKU): 9010-050800-1000
Part Name: LOWER BALL PIN ASSY.
Effective: 2021-02-26
Alternative parts: 9010-050800-20000
Specification: CCVI
Price: 32,60 € : 32,60 €
03
P/N (SKU): 9010-050800
Part Name: BOTTOM BALL PIN
Effective: 2021-02-26
Alternative parts: 9010-050800-20000
Specification: SOMIC
Price: 26,00 € : 26,00 €
-+
04
P/N (SKU): 9GQ0-050210
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 56,00 € : 56,00 €
-+
05
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×70
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-02-26
Alternative parts: 9DSV-050900-6K00
Price: 1,65 € : 1,65 €
-+
07
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
08
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 30006-102035810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×35
Price: 0,95 € : 0,95 €
-+
10
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 34
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): 7020-050005
Part Name: GUARD, BRAKE DISC
Effective: 2021-02-26
Alternative parts:
Price: 6,60 € : 6,60 €
-+
12
P/N (SKU): 9010-300002
Part Name: WASHER Dia 10
Effective: 2021-02-26
Alternative parts:
Specification: Dia 10
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 31,30 € : 31,30 €
14
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE 55
Effective: 2021-02-26
Alternative parts:
Specification: 55
Price: 2,05 € : 2,05 €
-+
15
P/N (SKU): 9GQA-050701
Part Name: FRONT STEERING KNUCKLE,LH
Effective: 2021-02-26
Alternative parts: 9GQA-050701-10000
Price: 46,20 € : 46,20 €
16
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: φ2×16
Price: 0,95 € : 0,95 €
-+
17
P/N (SKU): 30207-102810
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 9010-100002
Specification: M10x1.25
Price: 0,55 € : 0,55 €
18
P/N (SKU): 9010-050700-1000
Part Name: TOP BALL PIN
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 32,60 € : 32,60 €
-+
18
P/N (SKU): 9010-050700
Part Name: TOP BALL PIN
Effective: 2021-02-26
Alternative parts: 9010-050700-1000
Specification: SOMIC
Price: 27,50 € : 27,50 €
19
P/N (SKU): 9GQ0-050110
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-050110-10000
Price: 56,00 € : 56,00 €
-+
20
P/N (SKU): 9GQ0-050500
Part Name: FRONT SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts:
Price: 71,20 € : 71,20 €
-+
21
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×55
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 9GQ0-050310
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-050310-10000
Price: 56,00 € : 56,00 €
-+
23
P/N (SKU): 9GQA-050801
Part Name: FRONT RH STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts: 9GQA-050801-10000
Price: 46,20 € : 46,20 €
24
P/N (SKU): 9GQ0-050410
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 56,00 € : 56,00 €
-+
25
P/N (SKU): 9GQ0-044042
Part Name: PANEL, FRONT SUSPENSION(RH)
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
