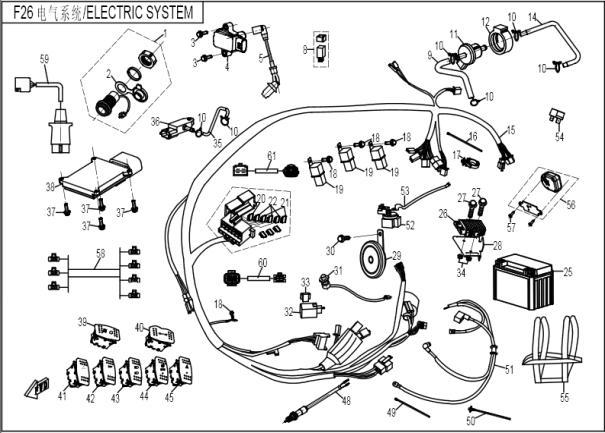

ELECTRIC SYSTEM - F26

ELECTRIC SYSTEM - F26

No.

01
P/N (SKU): 7020-150500-1000
Part Name: OUTPUT SEAT, POWER
Effective: 2021-02-26
Remarks: Sumitomo
Alternative parts:
Specification: SUMITOMO PLUG
Price: 17,30 € : 17,30 €
-+
01
P/N (SKU): 901B-150700
Part Name: OUTPUT SEAT, POWER
Effective: 2021-02-26
Alternative parts:
Price: 10,65 € : 10,65 €
-+
02
P/N (SKU): 901B-150702
Part Name: ANTI-DUST CAP
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
03
P/N (SKU): 30006-060025840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 35,60 € : 35,60 €
-+
05
P/N (SKU): 01AA-178200
Part Name: HIGH-VOLTAGE IGNITION CABLE
Effective: 2021-02-26
Alternative parts: 01AA-178200-10000
Price: 12,50 € : 12,50 €
-+
07
P/N (SKU): 9010-150002
Part Name: RUBBER RING, AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 4,10 € : 4,10 €
-+
08
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 6,65 € : 6,65 €
-+
09
P/N (SKU): 9060-000001
Part Name: BREATHER HOSE II, IDLE
Effective: 2021-02-26
Alternative parts: 806A-000001
Price: 1,50 € : 1,50 €
10
P/N (SKU): 30601-112010
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: A12
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): 018B-172000
Part Name: AIR CONTROL VALVE, IDLE
Effective: 2021-02-26
Alternative parts: 6KJB-1550A0
Price: 61,50 € : 61,50 €
12
P/N (SKU): 901F-000005
Part Name: RUBBER SLEEVE, IDLE VALVE
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
13
P/N (SKU): 30601-116010
Part Name: CLAMP A16
Effective: 2021-02-26
Alternative parts:
Specification: A16
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 806A-000001
Part Name: INLET HOSE, IDLE VALVE
Effective: 2021-02-26
Alternative parts:
Price: 10,65 € : 10,65 €
-+
15
P/N (SKU): 9060-150100-70000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: WATERPROOF, SUMITOMO, OPTIONAL
Alternative parts:
Specification: SUMITOMO PLUG
Price: 460,00 € : 460,00 €
-+
15
P/N (SKU): 9060-150100-4000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: Waterproof
Alternative parts: 9060-150100-5000
Price: 253,20 € : 253,20 €
16
P/N (SKU): 9010-150004
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 9060-150100-60001
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts:
Price: 297,10 € : 297,10 €
-+
17
P/N (SKU): 9010-150005
Part Name: CABLE CLIP
Effective: 2021-02-26
Alternative parts: 801F-100101
Price: 0,95 € : 0,95 €
18
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 0,55 € : 0,55 €
19
P/N (SKU): 8030-151400
Part Name: DIVERTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 9,05 € : 9,05 €
-+
20
P/N (SKU): 806A-151301
Part Name: FUSE 7.5A
Effective: 2021-02-26
Alternative parts:
Specification: 7.5A
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts: 806A-151303
Specification: 15A
Price: 0,55 € : 0,55 €
25
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 30A,DYNOVOLT
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 155,00 € : 155,00 €
26
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: 330W
Price: 102,20 € : 102,20 €
-+
27
P/N (SKU): 30006-060030840
Part Name: BOLT M6x30
Effective: 2021-02-26
Alternative parts: 30006-060030810
Specification: M6x30
Price: 0,55 € : 0,55 €
28
P/N (SKU): 9060-030489
Part Name: ALUM. PLATE, REGULATOR
Effective: 2021-02-26
Alternative parts:
Price: 8,80 € : 8,80 €
-+
29
P/N (SKU): 6050-150500
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
30
P/N (SKU): 30006-080014840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
31
P/N (SKU): 7030-170300
Part Name: BUTTON, CLOCK
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: WITHOUT WIRE
Price: 9,55 € : 9,55 €
-+
31
P/N (SKU): 6060-150800
Part Name: ADJUSTING BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts:
Price: 4,05 € : 4,05 €
-+
32
P/N (SKU): 8010-151000
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 4,05 € : 4,05 €
-+
33
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
35
P/N (SKU): 9060-000500
Part Name: BREATHER HOSE 3, IDLE
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
36
P/N (SKU): 018B-175000
Part Name: AIR INTAKE PRESSURE SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 60,40 € : 60,40 €
-+
37
P/N (SKU): 30105-050016440
Part Name: SCREW M5x16
Effective: 2021-02-26
Alternative parts: 30105-050016410
Specification: M5x16
Price: 0,55 € : 0,55 €
38
P/N (SKU): 060C-174000
Part Name: ECU
Effective: 2021-02-26
Remarks: EURO
Alternative parts:
Specification: BOSCH MSE3.0
Price: 190,80 € : 190,80 €
-+
39
P/N (SKU): 7000-151000-10000
Part Name: STOP SWITCH, ENGINE
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 14,30 € : 14,30 €
-+
39
P/N (SKU): 7000-151000
Part Name: STOP SWITCH, ENGINE
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 6,60 € : 6,60 €
-+
40
P/N (SKU): 7000-151500-10000
Part Name: TURNING SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 14,00 € : 14,00 €
-+
40
P/N (SKU): 7000-151500
Part Name: TURNING SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 6,60 € : 6,60 €
-+
41
P/N (SKU): 9060-151400-1000
Part Name: OVERRIDING SWITCH
Effective: 2021-02-26
Alternative parts:
Price: 9,15 € : 9,15 €
-+
41
P/N (SKU): 7000-151400-10000
Part Name: OVERRIDING SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 11,80 € : 11,80 €
-+
42
P/N (SKU): 7000-151300
Part Name: HORN SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 6,60 € : 6,60 €
-+
42
P/N (SKU): 7000-151300-10000
Part Name: HORN SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 11,80 € : 11,80 €
-+
43
P/N (SKU): 7000-151200-10000
Part Name: DIMMER SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 11,80 € : 11,80 €
-+
43
P/N (SKU): 7000-151200
Part Name: DIMMER SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 6,60 € : 6,60 €
-+
44
P/N (SKU): 7000-151100-10000
Part Name: ILLUMINATION SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 11,80 € : 11,80 €
-+
44
P/N (SKU): 7000-151100
Part Name: ILLUMINATION SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 6,60 € : 6,60 €
-+
45
P/N (SKU): 7000-151600-10000
Part Name: HAZARD SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 14,00 € : 14,00 €
-+
45
P/N (SKU): 7000-151600
Part Name: HAZARD SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 6,60 € : 6,60 €
-+
48
P/N (SKU): 9010-150500
Part Name: SWITCH, REAR BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 10,20 € : 10,20 €
-+
49
P/N (SKU): 8010-150003
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
50
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
51
P/N (SKU): 9060-150200
Part Name: STARTING TERMINAL CABLE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 52,00 € : 52,00 €
-+
52
P/N (SKU): 9010-150310-1000
Part Name: STARTER RELAY
Effective: 2021-02-26
Remarks: WITHOUT CABLE
Alternative parts: 9010-150310-10001/9CR6-150310
Price: 24,40 € : 24,40 €
53
P/N (SKU): 9060-150410
Part Name: CABLE, STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 16,20 € : 16,20 €
-+
54
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 2,45 € : 2,45 €
-+
55
P/N (SKU): 9060-152100
Part Name: BELT, BATTERY
Effective: 2021-02-26
Remarks: 30A
Alternative parts:
Price: 2,95 € : 2,95 €
-+
56
P/N (SKU): 9030-160700-10000
Part Name: SWTICH, 2WD/4WD
Effective: 2021-02-26
Remarks: WATERPROOF, SUMITOMO, OPTIONAL
Alternative parts:
Specification: SUMITOMO PLUG
Price: 22,40 € : 22,40 €
-+
56
P/N (SKU): 9030-160700
Part Name: SWITCH ASSY, 2WD/4WD
Effective: 2021-02-26
Alternative parts:
Price: 19,40 € : 19,40 €
-+
57
P/N (SKU): 30110-480160040
Part Name: SELF-TAPPING SCREW ST4.8x16
Effective: 2021-02-26
Alternative parts: 30110-480160010
Specification: ST4.8x16
Price: 0,95 € : 0,95 €
58
P/N (SKU): 9060-151700
Part Name: ADAPTOR CABLE, SWITCH
Effective: 2021-02-26
Alternative parts: 7000-152100
Price: 3,70 € : 3,70 €
59
P/N (SKU): 9010-151020
Part Name: ADAPTOR SEAT, TRAILER POWER
Effective: 2021-02-26
Alternative parts:
Price: 13,20 € : 13,20 €
-+
60
P/N (SKU): 9060-150101
Part Name: ADAPTOR CABLE 1, IGNITION SWITCH LOCK
Effective: 2021-02-26
Alternative parts:
Price: 6,60 € : 6,60 €
-+
61
P/N (SKU): 9060-150102
Part Name: ADAPTOR CABLE 2, IGNITION SWITCH LOCK
Effective: 2021-02-26
Alternative parts:
Price: 6,60 € : 6,60 €
-+
