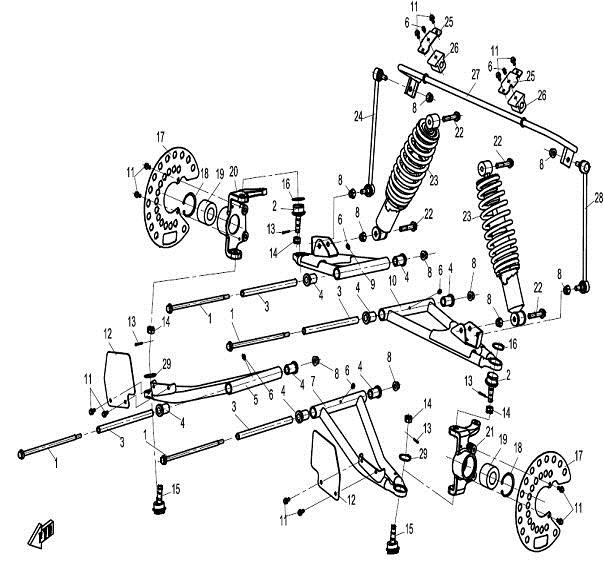

FRONT SUSPENSION - F10

FRONT SUSPENSION - F10

No.

01
P/N (SKU): 4060-050101
Part Name: SHAFT, FRONT SWNG ARM
Effective: 2021-02-26
Alternative parts:
Price: 8,15 € : 8,15 €
-+
02
P/N (SKU): 9030-050600-10000
Part Name: MAIN PIN ASSY
Effective: 2021-02-26
Remarks: CCVI, OPTIONAL
Alternative parts:
Specification: CCVI
Price: 20,20 € : 20,20 €
-+
02
P/N (SKU): 9030-050600
Part Name: MAIN PIN ASSY
Effective: 2021-02-26
Alternative parts: 9030-050600-10000
Specification: SOMIC
Price: 33,10 € : 33,10 €
03
P/N (SKU): 9060-050101
Part Name: SPACER, FRONT SWING ARM
Effective: 2021-02-26
Alternative parts: 9060-050101-00002
Price: 5,00 € : 5,00 €
03
P/N (SKU): 9060-050101-00001
Part Name: SPACER, FRONT SWING ARM
Effective: 2021-02-26
Alternative parts: 9060-050101-00002
Price: 6,10 € : 6,10 €
04
P/N (SKU): 9060-050002
Part Name: LONG BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 9,70 € : 9,70 €
-+
05
P/N (SKU): 9060-050410-1000
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLAC
Price: 38,50 € : 38,50 €
-+
06
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Specification: 45 DEGREE
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
07
P/N (SKU): 9060-050210-1000
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLAC
Price: 38,50 € : 38,50 €
-+
08
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 0,95 € : 0,95 €
09
P/N (SKU): 9060-050310-1000
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLAC
Price: 45,80 € : 45,80 €
-+
10
P/N (SKU): 9060-050110-1000
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLAC
Price: 45,80 € : 45,80 €
-+
11
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 0,55 € : 0,55 €
12
P/N (SKU): 9060-050201
Part Name: FENDER, SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
13
P/N (SKU): 30903-0322240
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts: 30903-0322210
Specification: 3.2x22
Price: 0,55 € : 0,55 €
14
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 1,25 € : 1,25 €
-+
15
P/N (SKU): 9060-050900
Part Name: LOWER PIN ASSY
Effective: 2021-02-26
Alternative parts: 9060-050900-10000
Specification: SOMIC
Price: 33,10 € : 33,10 €
-+
15
P/N (SKU): 9060-050900-10000
Part Name: BALL PIN ASSY
Effective: 2021-02-26
Remarks: CCVI, OPTIONAL
Alternative parts:
Specification: CCVI
Price: 21,60 € : 21,60 €
-+
16
P/N (SKU): 30801-03205
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 32 A-TYPE
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 9060-050001
Part Name: GUARD, BRAKE DISC
Effective: 2021-02-26
Alternative parts:
Price: 13,60 € : 13,60 €
-+
18
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE 55
Effective: 2021-02-26
Alternative parts:
Specification: 55
Price: 2,05 € : 2,05 €
-+
19
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 31,30 € : 31,30 €
20
P/N (SKU): 9060-050802
Part Name: STEERING KNUCKLE, RH
Effective: 2021-02-26
Remarks: ONLY FOR 14 INCHS RIM
Alternative parts:
Price: 61,20 € : 61,20 €
-+
20
P/N (SKU): 9060-050801-1000
Part Name: STEERING KNUCKLE, RH
Effective: 2021-02-26
Remarks: ONLY FOR 12 INCHS RIM
Alternative parts:
Price: 61,20 € : 61,20 €
-+
21
P/N (SKU): 9060-050701-1000
Part Name: LH STEERING KNUCKLE
Effective: 2021-02-26
Remarks: ONLY FOR 12 INCHS RIM
Alternative parts:
Price: 61,20 € : 61,20 €
-+
21
P/N (SKU): 9060-050702
Part Name: LH STEERING KNUCKLE
Effective: 2021-02-26
Remarks: ONLY FOR 14 INCHS RIM
Alternative parts:
Price: 61,20 € : 61,20 €
-+
22
P/N (SKU): 30006-102055840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
23
P/N (SKU): 9060-050500
Part Name: FRONT SHOCK ABSORBER
Effective: 2021-02-26
Remarks: YIT；is replaced by 9060-050500-2000
Alternative parts: 9060-050500-2000
Price: 98,90 € : 98,90 €
23
P/N (SKU): 9060-050500-1000
Part Name: FRONT SHOCK ABSORBER
Effective: 2021-02-26
Remarks: DNM
Alternative parts:
Price: 250,50 € : 250,50 €
-+
24
P/N (SKU): 9060-050640-1000
Part Name: FRONT RH SWAY LINKAGE BAR
Effective: 2021-02-26
Remarks: CANADA
Alternative parts: 9060-050640-20000
Price: 34,50 € : 34,50 €
24
P/N (SKU): 9060-050640
Part Name: FRONT RH SWAY LINKAGE BAR
Effective: 2021-02-26
Remarks: NOT FOR USA
Alternative parts: 9060-050640-30000
Price: 48,30 € : 48,30 €
-+
24
P/N (SKU): 9060-050640-20000
Part Name: FRONT RH SWAY LINKAGE BAR
Effective: 2021-02-26
Alternative parts:
Price: 30,10 € : 30,10 €
-+
24
P/N (SKU): 9060-050640-30000
Part Name: FRONT RH SWAY LINKAGE BAR
Effective: 2021-02-26
Alternative parts:
Price: 32,30 € : 32,30 €
-+
25
P/N (SKU): 9060-050602
Part Name: COVER, FRONT SWAY BAR
Effective: 2021-02-26
Remarks: NOT FOR USA
Alternative parts:
Price: 4,05 € : 4,05 €
-+
26
P/N (SKU): 9060-050601-1000
Part Name: RUBBER SEAT, FRONT SWAY BAR
Effective: 2021-02-26
Remarks: NOT FOR USA
Alternative parts:
Price: 4,00 € : 4,00 €
-+
26
P/N (SKU): 9060-050601
Part Name: RUBBER SEAT, FRONT SWAY BAR
Effective: 2021-02-26
Remarks: NOT FOR USA；is replaced by 9060-050601-1000
Alternative parts: 9060-050601-1000
Price: 2,60 € : 2,60 €
27
P/N (SKU): 9060-050610
Part Name: FRONT SWAY BAR ASSY
Effective: 2021-02-26
Remarks: NOT FOR USA
Alternative parts:
Price: 23,80 € : 23,80 €
-+
28
P/N (SKU): 9060-050620
Part Name: FRONT LH SWAY LINKAGE BAR
Effective: 2021-02-26
Remarks: NOT FOR USA
Alternative parts: 9060-050620-30000
Price: 48,30 € : 48,30 €
-+
28
P/N (SKU): 9060-050620-1000
Part Name: FRONT LH SWAY LINKAGE BAR
Effective: 2021-02-26
Remarks: CANADA
Alternative parts:
Price: 34,50 € : 34,50 €
-+
28
P/N (SKU): 9060-050620-30000
Part Name: FRONT LH SWAY LINKAGE BAR
Effective: 2021-02-26
Alternative parts:
Price: 32,30 € : 32,30 €
-+
28
P/N (SKU): 9060-050620-20000
Part Name: FRONT LH SWAY LINKAGE BAR
Effective: 2021-02-26
Alternative parts:
Price: 30,10 € : 30,10 €
-+
29
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 34
Price: 0,55 € : 0,55 €
-+
