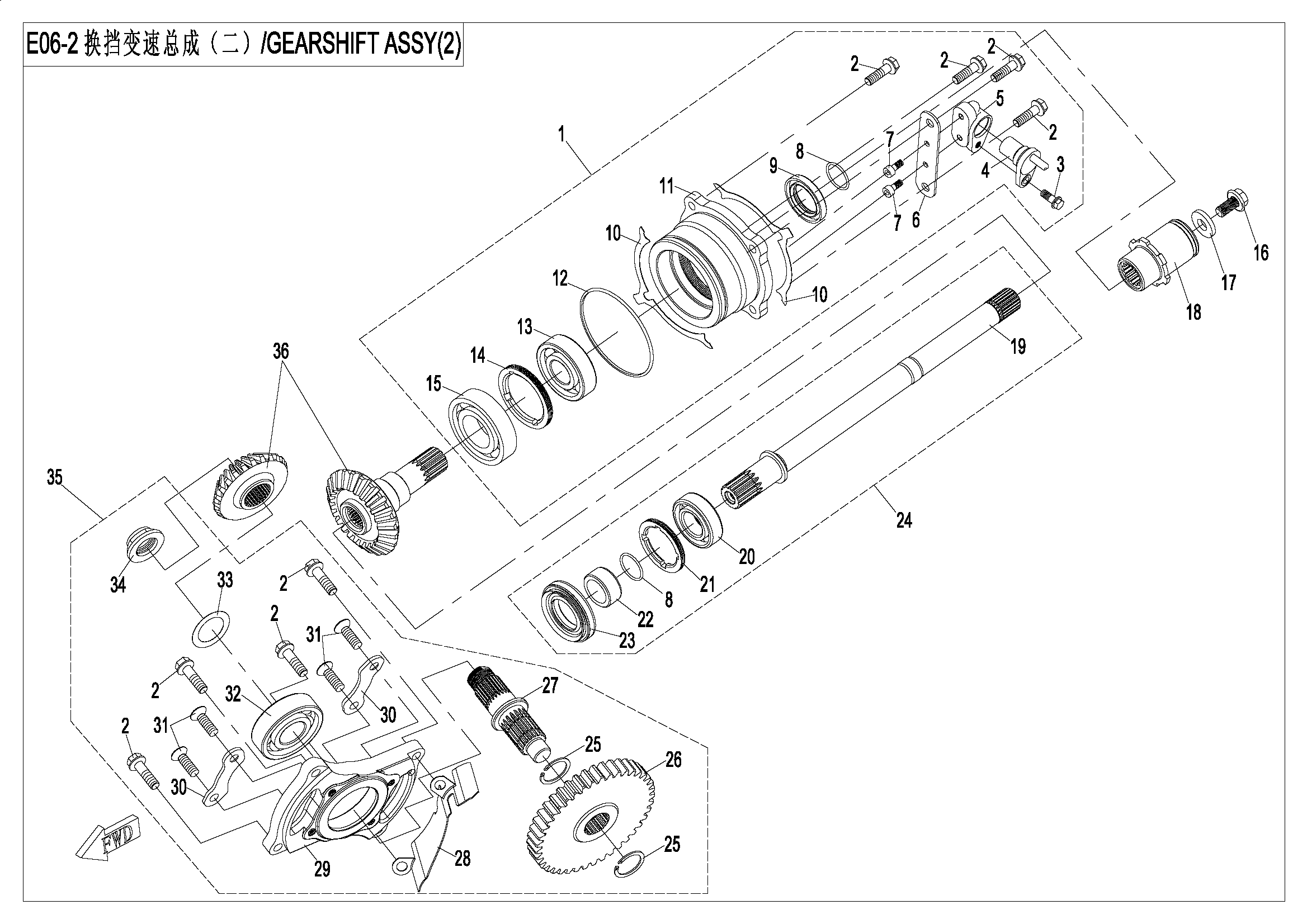

TRANSMISSION SYSTEM 2 - E06-2

TRANSMISSION SYSTEM 2 - E06-2

No.

01
P/N (SKU): 0JWA-0622A0
Part Name: BEARING SEAT ASSY,DRIVEN BEVEL GEAR
Effective: 2021-02-26
Alternative parts:
Price: 252,00 € : 252,00 €
-+
02
P/N (SKU): 0110-060011-0010
Part Name: BOLT M8×28
Effective: 2021-02-26
Alternative parts: 0JYA-062104
Specification: M8x28
Price: 2,00 € : 2,00 €
03
P/N (SKU): 30001-060014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×14
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 7020-150400
Part Name: SPEED SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 34,00 € : 34,00 €
-+
05
P/N (SKU): 0800-062208
Part Name: SPEED SENSOR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 6,00 € : 6,00 €
-+
06
P/N (SKU): 0800-062209
Part Name: SPEED SENSOR PLATE
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
07
P/N (SKU): 30102-050012810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5x12@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0800-062205
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 25x2
Price: 2,00 € : 2,00 €
-+
09
P/N (SKU): 0800-062204
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts:
Specification: 35x50x7
Price: 6,50 € : 6,50 €
-+
10
P/N (SKU): 0800-062203
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.1
Effective: 2021-02-26
Alternative parts:
Specification: T=0.1
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0800-062202-1000
Part Name: BEARING HOUSING, DRIVEN BEVEL GEAR
Effective: 2021-02-26
Alternative parts: 0800-062202-10001
Price: 43,00 € : 43,00 €
12
P/N (SKU): 0180-062205
Part Name: O-SEAL RING
Effective: 2021-02-26
Alternative parts:
Specification: 88x2.5
Price: 4,00 € : 4,00 €
-+
13
P/N (SKU): 30400-02502
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: CHINA
Price: 11,00 € : 11,00 €
-+
13
P/N (SKU): 30499-02501
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6305C3@NTN
Price: 20,00 € : 20,00 €
-+
14
P/N (SKU): 0800-062206
Part Name: STOPPER NUT, BEARING
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
15
P/N (SKU): 30400-03500
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 35
Price: 11,00 € : 11,00 €
-+
16
P/N (SKU): 0GR0-062203
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×20
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): 0GR0-062204
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 10x27.5x4
Price: 2,50 € : 2,50 €
-+
18
P/N (SKU): 0JWA-060100
Part Name: REAR OUTPUT BUSHING ASSY
Effective: 2021-02-26
Alternative parts:
Price: 21,00 € : 21,00 €
-+
19
P/N (SKU): 0800-062301
Part Name: FRONT OUTPUT SHAFT
Effective: 2021-02-26
Alternative parts: 0800-062301-00001
Price: 37,00 € : 37,00 €
-+
20
P/N (SKU): 30400-02501
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 25
Price: 7,50 € : 7,50 €
-+
21
P/N (SKU): 0180-060008
Part Name: BEARING RETAINER, FRONT OUTPUT SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 6,50 € : 6,50 €
-+
22
P/N (SKU): 0800-062201
Part Name: SHAFT SLEEVE, OUTPUT SHAFT
Effective: 2021-02-26
Alternative parts: 0800-062201-00001
Price: 9,00 € : 9,00 €
-+
23
P/N (SKU): 0JWA-062302
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts: 0JWA-062302-00001
Specification: 35x61x9
Price: 10,00 € : 10,00 €
24
P/N (SKU): 0800-062300
Part Name: FRONT OUTPUT SHAFT ASSY
Effective: 2021-02-26
Alternative parts: 0800-062300-00001
Price: 63,00 € : 63,00 €
25
P/N (SKU): 0180-061007-0050
Part Name: CIRCLIP 25
Effective: 2021-02-26
Alternative parts:
Specification: 25
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 0800-062102
Part Name: OUTPUT DRIVEN GEAR
Effective: 2021-02-26
Alternative parts:
Price: 42,00 € : 42,00 €
-+
27
P/N (SKU): 0800-062101
Part Name: DRIVE BEVEL GEAR SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 27,00 € : 27,00 €
-+
28
P/N (SKU): 0800-062108
Part Name: RETAINING PLATE
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
29
P/N (SKU): 0800-062103
Part Name: BEARING SEAT, DRIVE BEVEL GEAR
Effective: 2021-02-26
Alternative parts:
Price: 26,00 € : 26,00 €
-+
30
P/N (SKU): 0180-062104-0010
Part Name: LIMITATOR, BEARING
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
31
P/N (SKU): 30124-080025810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M8x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 0110-041007
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 28×68×18
Price: 39,00 € : 39,00 €
-+
33
P/N (SKU): 0180-062105
Part Name: ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.15
Effective: 2021-02-26
Alternative parts:
Specification: T=0.15
Price: 3,50 € : 3,50 €
-+
34
P/N (SKU): 0180-062107-0010
Part Name: LOCK NUT, BEVEL GEAR
Effective: 2021-02-26
Alternative parts: 0180-062107-00001
Price: 2,50 € : 2,50 €
35
P/N (SKU): 0800-0621B0
Part Name: DRIVE BEVEL GEAR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 85,00 € : 85,00 €
-+
36
P/N (SKU): 0GR0-0622A0
Part Name: BEVEL GEAR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 155,00 € : 155,00 €
-+
