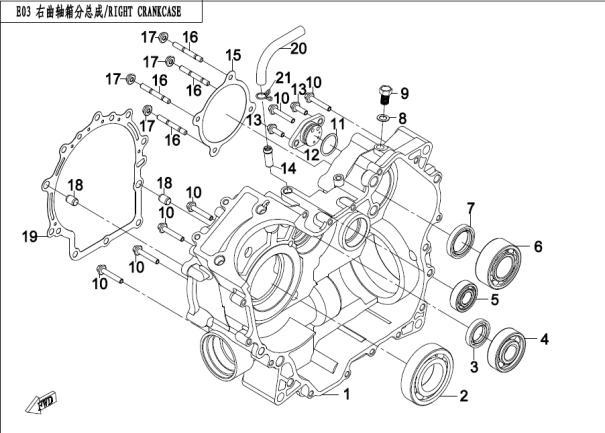

RIGHT CRANKCASE - E03 | 2016, ENGINE, 196S-C | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0180-012100-0080

Part Name: RH CRANKCASE ASSY

Effective: 2021-02-26

Alternative parts:

Price: 174,90 € : 174,90 €

02

P/N (SKU): 30499-04000

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 6208

Price: 33,10 € : 33,10 €

03

P/N (SKU): 0180-012004

Part Name: OIL SEAL

Effective: 2021-02-26

Alternative parts:

Specification: 22x38x7

Price: 10,00 € : 10,00 €

04

P/N (SKU): 30400-02200

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Price: 7,90 € : 7,90 €

05

P/N (SKU): 30400-01703

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 6203RZ

Price: 8,20 € : 8,20 €

06

P/N (SKU): 30499-03000

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 5206

Price: 66,10 € : 66,10 €

07

P/N (SKU): 0180-012006

Part Name: OIL SEAL

Effective: 2021-02-26

Alternative parts: 0180-012006-10000

Specification: 30x45x7

Price: 5,50 € : 5,50 €

08

P/N (SKU): 0010-060010

Part Name: WASHER 10

Effective: 2021-02-26

Alternative parts:

Specification: 10

Price: 1,00 € : 1,00 €

09

P/N (SKU): 0010-060011-0030

Part Name: DRAIN BOLT, M10x1.25

Effective: 2021-02-26

Alternative parts: 0010-060011-0010

Specification: M10x1.25

Price: 1,80 € : 1,80 €

10

P/N (SKU): 0010-013008-0030

Part Name: BOLT M6x35

Effective: 2021-02-26

Remarks: is replaced by 0010-013008-0010

Alternative parts: 0010-013008-0010

Specification: M6x35

Price: 1,00 € : 1,00 €

11

P/N (SKU): 0180-023002

Part Name: O-SEAL RING

Effective: 2021-02-26

Alternative parts:

Specification: 24x2.5

Price: 1,00 € : 1,00 €

12

P/N (SKU): 0180-012200-20000

Part Name: GEAR SENSOR

Effective: 2021-02-26

Remarks: SUOMITOMO,WATERPROOF,OPTIONAL,6 HOLES, WITH REVERSEGEAR SIGNAL

Alternative parts:

Specification: SUMITOMO PLUG

Price: 24,90 € : 24,90 €

12

P/N (SKU): 0180-012200-1000

Part Name: GEAR SENSOR ASSY

Effective: 2021-02-26

Remarks: WITH REVERSE GEAR

Alternative parts:

Price: 18,00 € : 18,00 €

13

P/N (SKU): 0010-023008-0030

Part Name: BOLT M6x18

Effective: 2021-02-26

Remarks: is replaced by 0010-023008-0010

Alternative parts: 0010-023008-0010

Specification: M6x18

Price: 1,00 € : 1,00 €

14

P/N (SKU): 0010-013006-0010

Part Name: BREATHER HOSE JOINT

Effective: 2021-02-26

Alternative parts:

Price: 1,80 € : 1,80 €

15

P/N (SKU): 0180-012002

Part Name: GASKET(2), CVT CASE

Effective: 2021-02-26

Alternative parts:

Price: 3,60 € : 3,60 €

16

P/N (SKU): 30011-060040820

Part Name: STUD

Effective: 2021-02-26

Alternative parts:

Specification: M6x40

Price: 1,80 € : 1,80 €

16

P/N (SKU): 0010-021017-0030

Part Name: BOLT M6x25

Effective: 2021-02-26

Remarks: is replaced by 0010-021017-0010

Alternative parts: 0010-021017-0010

Specification: M6x25

Price: 1,00 € : 1,00 €

17

P/N (SKU): 30204-060810

Part Name: NUT

Effective: 2021-02-26

Alternative parts:

Specification: M6

Price: 1,00 € : 1,00 €

18

P/N (SKU): 0010-021005

Part Name: DOWEL PIN

Effective: 2021-02-26

Alternative parts:

Specification: 10x14

Price: 1,00 € : 1,00 €

19

P/N (SKU): 0180-012001

Part Name: GASKET(1), CVT CASE

Effective: 2021-02-26

Alternative parts:

Price: 7,20 € : 7,20 €

20

P/N (SKU): 0031-013007

Part Name: BREATHER HOSE

Effective: 2021-02-26

Alternative parts:

Price: 3,50 € : 3,50 €

21

P/N (SKU): 30601-114010

Part Name: "CLAMP

Effective: 2021-02-26

Alternative parts:

Specification: "

Price: 1,00 € : 1,00 €
