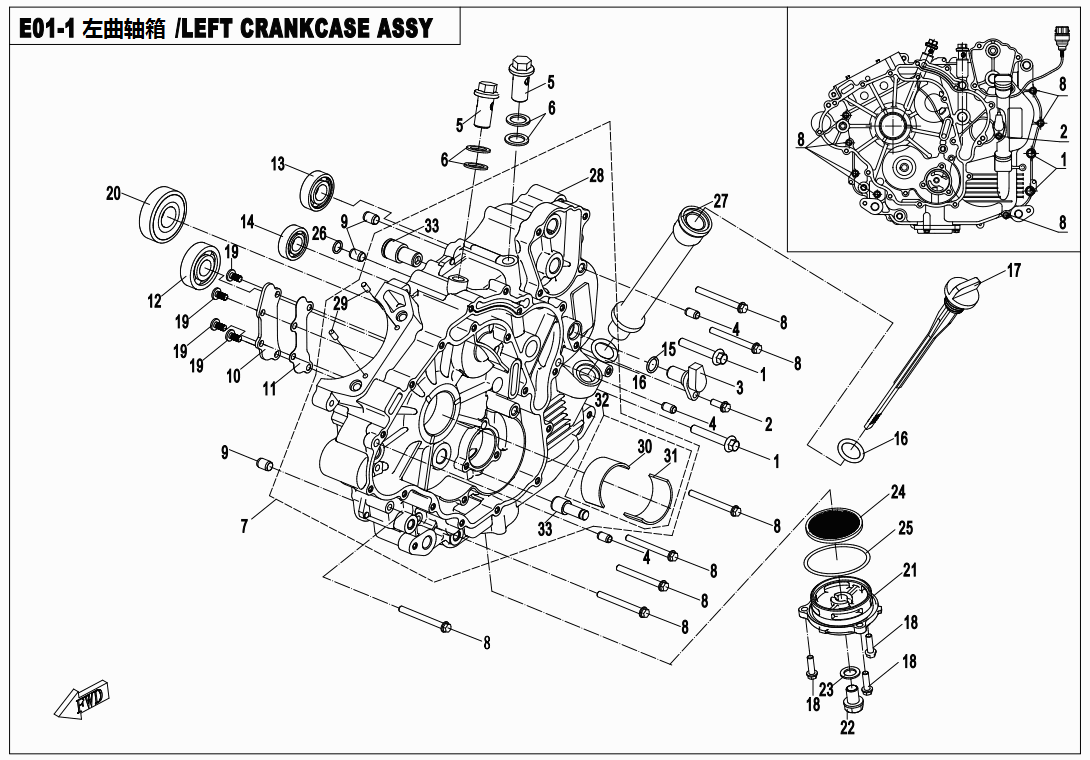

LEFT CRANKCASE ASSY - E01-1

LEFT CRANKCASE ASSY - E01-1

No.

01
P/N (SKU): 0040-012006-0010
Part Name: BOLT M8x50
Effective: 2021-02-26
Alternative parts:
Specification: M8X50
Price: 0,95 € : 0,95 €
-+
02
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts:
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 0GR0-011020
Part Name: SPEED SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 35,60 € : 35,60 €
-+
04
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts:
Specification: 8X14
Price: 1,05 € : 1,05 €
-+
05
P/N (SKU): 0180-011007-0010
Part Name: BOLT M14x1.5x32
Effective: 2021-02-26
Alternative parts:
Specification: M14x1.5x32
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Alternative parts:
Specification: 14
Price: 1,05 € : 1,05 €
-+
07
P/N (SKU): 0GR0-011100
Part Name: LH CRANKCASE ASSY
Effective: 2021-02-26
Alternative parts: 0GR0-011100-00001
Price: 223,30 € : 223,30 €
08
P/N (SKU): 0010-011017-0010
Part Name: BOLT M6x60
Effective: 2021-02-26
Alternative parts:
Specification: M6x60
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 0010-021005
Part Name: DOWEL PIN 10x14
Effective: 2021-02-26
Alternative parts:
Specification: 10x14
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 0GR0-011002
Part Name: OIL RAIL COVER PLATE
Effective: 2021-02-26
Alternative parts:
Price: 2,20 € : 2,20 €
-+
11
P/N (SKU): 0GR0-011004
Part Name: PAPER WASHER, OIL RAIL
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 30499-01700
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6303C3@NTN
Price: 11,00 € : 11,00 €
-+
13
P/N (SKU): 30400-01704
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 17
Price: 9,55 € : 9,55 €
-+
14
P/N (SKU): 30499-01500
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6202
Price: 7,65 € : 7,65 €
-+
15
P/N (SKU): 01A0-013005
Part Name: O-SEAL RING
Effective: 2021-02-26
Alternative parts:
Specification: 13x2
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 0110-013030
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 18x3.55
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 0GRB-011001
Part Name: DIPSTICK, ENGINE OIL
Effective: 2021-02-26
Alternative parts:
Price: 2,95 € : 2,95 €
-+
18
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20
Effective: 2021-02-26
Alternative parts:
Specification: M6x20
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): 30105-060012430
Part Name: SCREW M6x12
Effective: 2021-02-26
Alternative parts: 30105-060012410
Specification: M6x12
Price: 0,55 € : 0,55 €
20
P/N (SKU): 30400-02201
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Price: 10,65 € : 10,65 €
-+
21
P/N (SKU): 0GR0-011001
Part Name: PLATE, OIL STRAINER
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
22
P/N (SKU): 0110-013005-0010
Part Name: BOLT PLUG, OIL DRAIN M12x1.5x15
Effective: 2021-02-26
Alternative parts: 0110-013005-00002
Specification: COLOR ZINC TRIVALENT CHROMIUM
Price: 0,95 € : 0,95 €
23
P/N (SKU): 0010-021014
Part Name: WASHER 12
Effective: 2021-02-26
Alternative parts:
Specification: 12
Price: 1,65 € : 1,65 €
-+
24
P/N (SKU): 0GR0-011010
Part Name: OIL STRAINER
Effective: 2021-02-26
Alternative parts:
Price: 4,40 € : 4,40 €
-+
25
P/N (SKU): 0800-014003
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 63x2.5
Price: 0,95 € : 0,95 €
-+
26
P/N (SKU): 30502-010000N
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 10x1.8
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 0800-011011-1000
Part Name: JOINT PIPE, , OIL DIPSTICK
Effective: 2021-02-26
Alternative parts:
Price: 16,90 € : 16,90 €
-+
28
P/N (SKU): 0GR0-011101-10020
Part Name:
Effective: 2021-02-26
Remarks: B,WITH BLUE BEARING
Alternative parts:
Price: 167,20 € : 167,20 €
-+
28
P/N (SKU): 0GR0-011101-00021
Part Name: LH CRANKCASE
Effective: 2021-02-26
Remarks: B,WITH BLUE BEARING
Alternative parts:
Price: 246,20 € : 246,20 €
-+
28
P/N (SKU): 0GR0-011101-10010
Part Name:
Effective: 2021-02-26
Remarks: A,WITH RED BEARING
Alternative parts:
Price: 167,20 € : 167,20 €
-+
28
P/N (SKU): 0GR0-011101-00011
Part Name: LH CRANKCASE BODY
Effective: 2021-02-26
Remarks: A,WITH RED BEARING
Alternative parts: 0GR0-011101-20011+0800-011102-00011+0800-011103-00011
Price: 245,00 € : 245,00 €
29
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE P5x11.8
Effective: 2021-02-26
Alternative parts:
Specification: P5x11.8
Price: 1,05 € : 1,05 €
-+
30
P/N (SKU): 0800-011102-0001
Part Name: PLAIN BEARING 1
Effective: 2021-02-26
Alternative parts: 0800-011102-00011
Specification: RED@THIN
Price: 6,60 € : 6,60 €
30
P/N (SKU): 0800-011102-0002
Part Name: PLAIN BEARING 1
Effective: 2021-02-26
Alternative parts: 0800-011102-00021
Specification: BLUE@THICK
Price: 8,15 € : 8,15 €
31
P/N (SKU): 0800-011103-0002
Part Name: PLAIN BEARING 2
Effective: 2021-02-26
Alternative parts: 0800-011103-00021
Specification: BLUE@THICK
Price: 7,00 € : 7,00 €
31
P/N (SKU): 0800-011103-0001
Part Name: PLAIN BEARING 2
Effective: 2021-02-26
Alternative parts: 0800-011103-00011
Specification: RED@THIN
Price: 7,00 € : 7,00 €
-+
32
P/N (SKU): 0GR0-011103
Part Name: INTERMEDIATE GEAR SHAFT, REVERSE
Effective: 2021-02-26
Alternative parts:
Price: 4,80 € : 4,80 €
-+
33
P/N (SKU): 0GR0-011102
Part Name: DUAL GEAR SHAFT, OIL PUMP
Effective: 2021-02-26
Alternative parts:
Price: 3,30 € : 3,30 €
-+
34
P/N (SKU): 0180-014010
Part Name: WIRE CLIP
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
