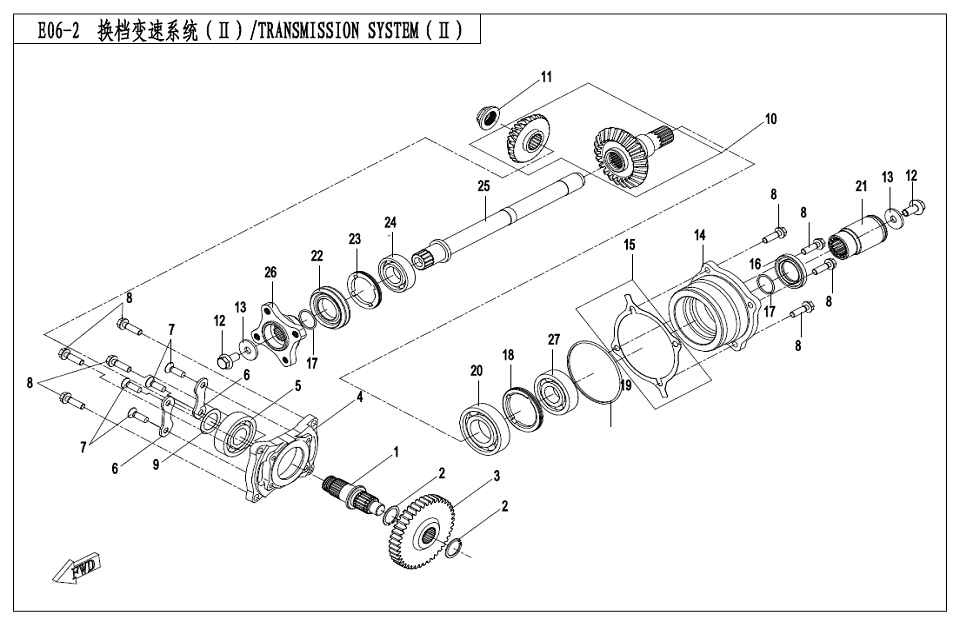

TRANSMISSION SYSTEM (Ⅱ)-OLD - E06-2

No.

01
P/N (SKU): 0180-062101
Part Name: DRIVE BEVEL GEAR SHAFT
Alternative parts:
Price: 29,30 € : 29,30 €
-+
02
P/N (SKU): 0180-061007-0050
Part Name: CIRCLIP 25
Alternative parts:
Specification: 25
Price: 1,35 € : 1,35 €
-+
03
P/N (SKU): 0180-062102
Part Name: OUTPUT DRIVEN GEAR
Alternative parts: 0180-062102-00001
Price: 57,50 € : 57,50 €
04
P/N (SKU): 0180-062103-10000
Part Name: BEARING SEAT, DRIVE BEVEL GEAR
Alternative parts:
Price: 26,80 € : 26,80 €
-+
05
P/N (SKU): 30499-02501
Part Name: BEARING
Alternative parts:
Specification: 25
Price: 16,30 € : 16,30 €
-+
06
P/N (SKU): 0180-062104-0010
Part Name: LIMITATOR, BEARING
Alternative parts:
Price: 1,25 € : 1,25 €
-+
07
P/N (SKU): 30124-080025810
Part Name: SCREW M8x25
Alternative parts:
Specification: M8x25
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 0110-060011-0010
Part Name: BOLT M8x28
Alternative parts: 0JYA-062104
Specification: M8x28
Price: 1,55 € : 1,55 €
-+
09
P/N (SKU): 0180-062105-0004
Part Name: ADJUSTING WASHER, DRIVE SHAFT GEAR
Alternative parts:
Specification: t=0.35
Price: 0,95 € : 0,95 €
-+
09
P/N (SKU): 0180-062105-0002
Part Name: ADJUST GASKET, DRIVE BEVEL GEAR
Alternative parts:
Specification: t=0.25
Price: 0,95 € : 0,95 €
-+
09
P/N (SKU): 0180-062105
Part Name: ADJUST GASKET, DRIVE BEVEL GEAR
Alternative parts:
Specification: t=0.15
Price: 3,30 € : 3,30 €
-+
09
P/N (SKU): 0180-062105-0003
Part Name: ADJUSTING WASHER, DRIVE SHAFT GEAR
Alternative parts:
Specification: t=0.3
Price: 0,95 € : 0,95 €
-+
09
P/N (SKU): 0180-062105-0001
Part Name: ADJUST GASKET, DRIVE BEVEL GEAR
Alternative parts:
Specification: t=0.2
Price: 0,95 € : 0,95 €
-+
10
P/N (SKU): 0GR0-0622A0
Part Name: BEVEL GEAR ASSY
Alternative parts:
Price: 152,50 € : 152,50 €
-+
11
P/N (SKU): 0180-062107-0010
Part Name: LOCK NUT, BEVEL GEAR
Alternative parts: 0180-062107-00001
Price: 1,50 € : 1,50 €
12
P/N (SKU): 0GR0-062203
Part Name: BOLT M10x1.25x20
Alternative parts:
Specification: M10x1.25x20
Price: 1,55 € : 1,55 €
-+
13
P/N (SKU): 0GR0-062204
Part Name: WASHER 10x27.5x4
Alternative parts:
Specification: 10x27.5x4
Price: 2,05 € : 2,05 €
-+
14
P/N (SKU): 0800-062202-1000
Part Name: BEARING HOUSING, DRIVEN BEVEL GEAR
Alternative parts: 0800-062202-10001
Price: 40,70 € : 40,70 €
15
P/N (SKU): 0800-062203-0001
Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR
Alternative parts:
Specification: t=0.2
Price: 0,95 € : 0,95 €
-+
15
P/N (SKU): 0800-062203-0002
Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR
Alternative parts:
Specification: t=0.3
Price: 0,95 € : 0,95 €
-+
15
P/N (SKU): 0800-062203-0003
Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR
Alternative parts:
Specification: t=0.4
Price: 0,95 € : 0,95 €
-+
15
P/N (SKU): 0800-062203-0004
Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR
Alternative parts:
Specification: t=0.5
Price: 0,95 € : 0,95 €
-+
15
P/N (SKU): 0800-062203
Part Name: ADJUST GASKET, DRIVEN BEVEL GEAR
Alternative parts:
Specification: t=0.1
Price: 0,95 € : 0,95 €
-+
16
P/N (SKU): 0800-062204
Part Name: OIL SEAL 35x50x7
Alternative parts:
Specification: 35x50x7
Price: 5,10 € : 5,10 €
-+
17
P/N (SKU): 0800-062205
Part Name: O-SEAL RING 25x2
Alternative parts:
Specification: 25x2
Price: 1,25 € : 1,25 €
-+
18
P/N (SKU): 0800-062206
Part Name: STOPPER NUT, BEARING
Alternative parts:
Price: 2,95 € : 2,95 €
-+
19
P/N (SKU): 0180-062205
Part Name: O-SEAL RING 88x2.5
Alternative parts:
Specification: 88x2.5
Price: 2,95 € : 2,95 €
-+
20
P/N (SKU): 30400-03500
Part Name: BEARING
Alternative parts:
Specification: 35
Price: 8,45 € : 8,45 €
-+
21
P/N (SKU): 9CR6-300201-10000
Part Name: DRIVE SLEEVE, ENGINE
Alternative parts:
Price: 27,50 € : 27,50 €
-+
22
P/N (SKU): 0180-331007
Part Name: OIL SEAL 35x61x9(14)
Alternative parts:
Specification: 35x61x9(14)
Price: 8,15 € : 8,15 €
-+
22
P/N (SKU): 0JWA-062302
Part Name: OIL SEAL 35x61x9(14)
Alternative parts:
Specification: 35x61x9
Price: 7,00 € : 7,00 €
-+
23
P/N (SKU): 0180-060008
Part Name: BEARING RETAINER, FRONT OUTPUT SHAFT
Alternative parts:
Price: 4,40 € : 4,40 €
-+
24
P/N (SKU): 30400-02501
Part Name: BEARING
Alternative parts:
Specification: 25
Price: 5,15 € : 5,15 €
-+
25
P/N (SKU): 0GR0-062301
Part Name: FRONT OUTPUT SHAFT
Alternative parts: 0GR0-062301-10001
Price: 40,70 € : 40,70 €
-+
26
P/N (SKU): 0GR0-060003
Part Name: COUPLER
Alternative parts:
Price: 29,50 € : 29,50 €
-+
27
P/N (SKU): 30400-02502
Part Name: BEARING
Alternative parts:
Specification: CHINA
Price: 7,00 € : 7,00 €
-+
