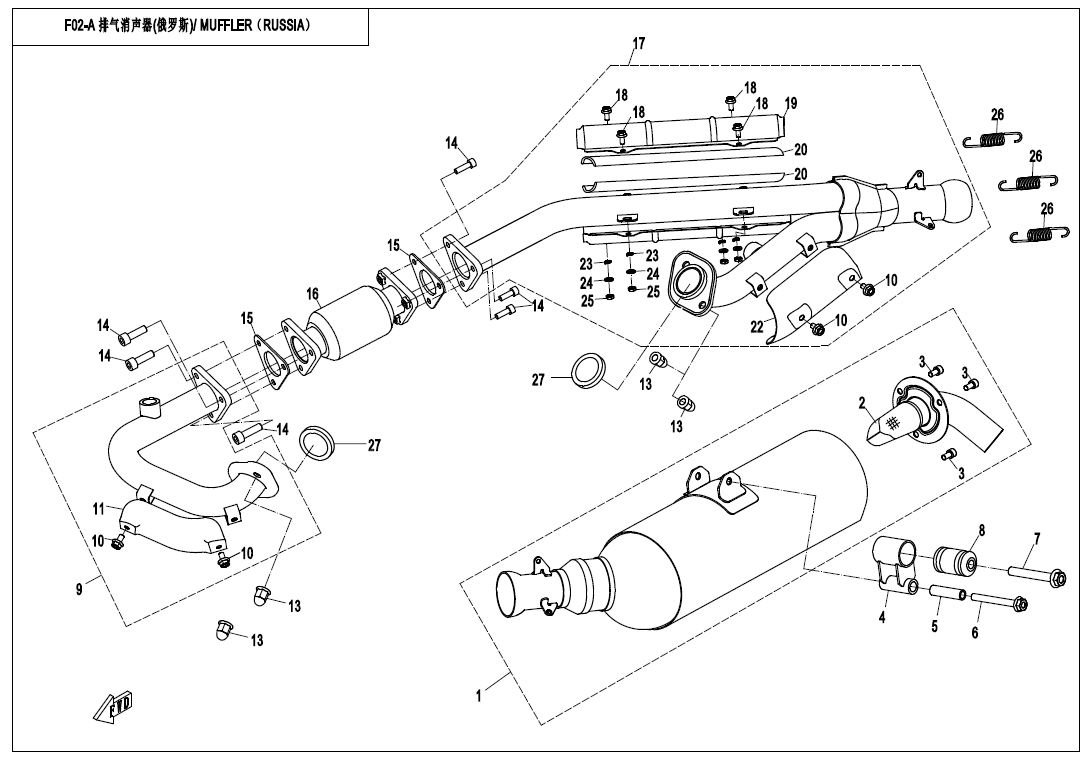

MUFFLER (RUSSIA) - F02-A

MUFFLER (RUSSIA) - F02-A

No.

01
P/N (SKU): 7020-021300-10002
Part Name: null
Effective: 2021-02-26
Alternative parts: null
Specification: null
Price: 507,00 € : 507,00 €
02
P/N (SKU): 7020-021320-10000
Part Name: SPARK ARRESTOR
Effective: 2021-02-26
Alternative parts: null
Price: 22,00 € : 22,00 €
03
P/N (SKU): 30102-060012810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×12
Price: 1,50 € : 1,50 €
04
P/N (SKU): 7020-022000-00001
Part Name: MOUNT ASSY, MUFFLER
Effective: 2021-02-26
Alternative parts: 9CR6-020003+9CR6-020020
Price: 9,50 € : 9,50 €
05
P/N (SKU): 7020-020001
Part Name: MUFFLER LINER
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 30006-080065810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8x65
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 30006-102070810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M10×1.25×70
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
09
P/N (SKU): 7020-021100-10000
Part Name: FRONT EXHAUST PIPE, FRONT CYLINDER
Effective: 2021-02-26
Alternative parts: null
Price: 22,00 € : 22,00 €
10
P/N (SKU): 30006-060010810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×10
Price: 1,50 € : 1,50 €
11
P/N (SKU): 7020-021101
Part Name: HEAT INSULATOR, FRONT CYLINDER
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
13
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2021-02-26
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30102-080030810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: M8×30
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 7020-021001
Part Name: GASKET
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
16
P/N (SKU): 7020-021400
Part Name: CORRUGATED EXHAUST PIPE
Effective: 2021-02-26
Alternative parts: null
Price: 39,00 € : 39,00 €
-+
17
P/N (SKU): 7020-021200-20000
Part Name: 2 IN 1 EXHAUST PIPE ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 84,00 € : 84,00 €
18
P/N (SKU): 30006-050012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M5×12
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 7020-021202
Part Name: HEAT INSULATOR 2, MIDDLE EXHAUST PIPE
Effective: 2021-02-26
Alternative parts: null
Price: 22,00 € : 22,00 €
20
P/N (SKU): 7020-021203
Part Name: GLASS FABRIC INSULATOR
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
22
P/N (SKU): 7020-021201
Part Name: CYLINDER 2 HEAT INSULATOR
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
23
P/N (SKU): 30300-050140
Part Name: null
Effective: 2021-02-26
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
24
P/N (SKU): 30303-050012
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2021-02-26
Alternative parts: 30303-050042
Price: 2,00 € : 2,00 €
25
P/N (SKU): 30200-050810
Part Name: HEXAGON NUT TYPE 1
Effective: 2021-02-26
Alternative parts: null
Specification: M5
Price: 1,50 € : 1,50 €
26
P/N (SKU): 9030-020002
Part Name: SPRING
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
27
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
