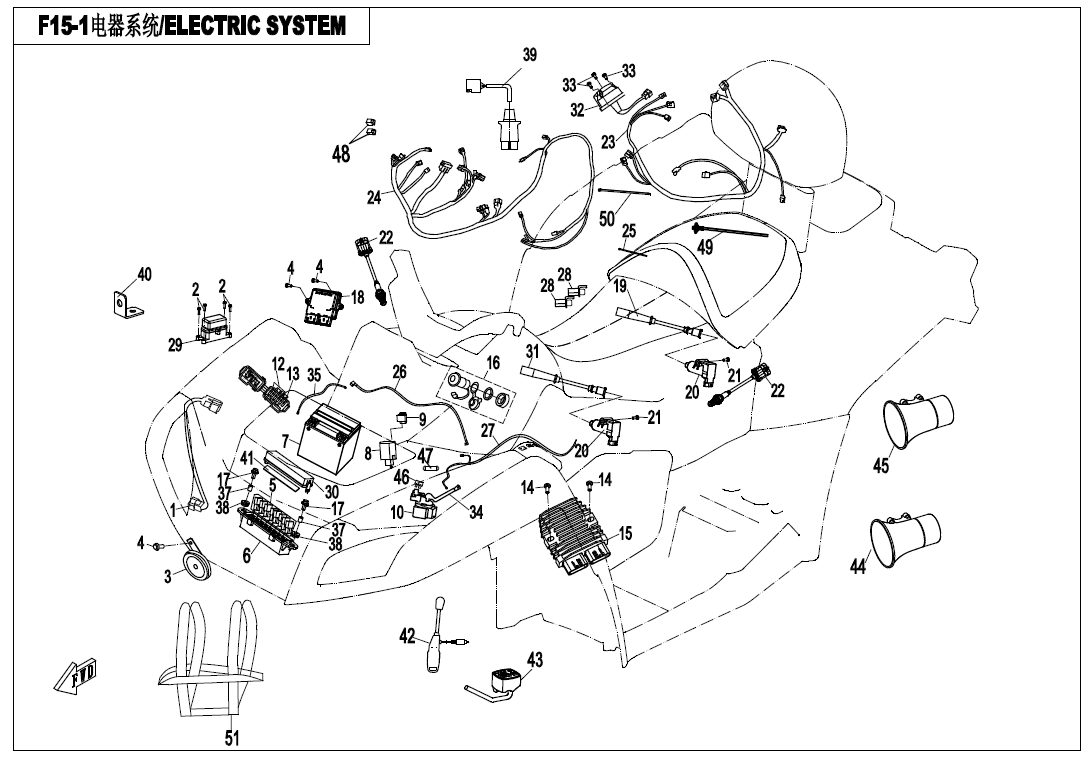

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 7020-150401
Part Name: SPEED SENSOR ADAPTOR WIRE
Effective: 2021-02-26
Alternative parts:
Price: 7,35 € : 7,35 €
-+
02
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×25
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Remarks: ORDINARY
Alternative parts:
Price: 7,00 € : 7,00 €
-+
03
P/N (SKU): 7020-150770
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Remarks: ONLY FOR X8 FACELIFT
Alternative parts:
Price: 7,00 € : 7,00 €
-+
04
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 6,65 € : 6,65 €
-+
06
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 7,15 € : 7,15 €
-+
07
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 155,00 € : 155,00 €
07
P/N (SKU): 31023002
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: YUASA, 12V30Ah
Price: 553,00 € : 553,00 €
08
P/N (SKU): 8010-151000
Part Name: FLASHER
Effective: 2021-02-26
Remarks: ORDINARY
Alternative parts:
Price: 4,05 € : 4,05 €
-+
08
P/N (SKU): 9GQ1-150340
Part Name: FLASHER
Effective: 2021-02-26
Remarks: FACELIFT
Alternative parts: 9GQV-161000-7000
Price: 19,40 € : 19,40 €
-+
09
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 5270-150500
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 23,30 € : 23,30 €
-+
12
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts:
Specification: 15A
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×30
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: 330W
Price: 102,20 € : 102,20 €
-+
15
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: HIGH POWER, CHINESE
Price: 161,70 € : 161,70 €
-+
15
P/N (SKU): 0800-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: 0800-177000-10000
Specification: HIGH POWER, JAPANESE
Price: 233,90 € : 233,90 €
16
P/N (SKU): 7020-150500-1000
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 17,30 € : 17,30 €
-+
16
P/N (SKU): 7020-150500
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 15,20 € : 15,20 €
-+
18
P/N (SKU): 0800-174000
Part Name: ECU
Effective: 2021-02-26
Alternative parts:
Specification: DELPHI MT05.3
Price: 392,10 € : 392,10 €
-+
18
P/N (SKU): 0800-174000-3000
Part Name: ECU
Effective: 2021-02-26
Remarks: X8,Only used if speed sensor mounted on engine output coupler
Alternative parts:
Specification: DELPHI MT05.3
Price: 215,60 € : 215,60 €
-+
19
P/N (SKU): 0800-179100
Part Name: HIGH-TENSION CABLE ASSY 1
Effective: 2021-02-26
Alternative parts: 0800-179100-10000
Price: 10,10 € : 10,10 €
20
P/N (SKU): 0800-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 45,30 € : 45,30 €
-+
21
P/N (SKU): 30006-060040810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6x40
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 0800-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 125,60 € : 125,60 €
-+
23
P/N (SKU): 7020-150300-1000
Part Name: EFI AUXILIARY CABLE, X8
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 133,30 € : 133,30 €
-+
23
P/N (SKU): 7020-150300
Part Name: EFI AUXILIARY CABLE, X8
Effective: 2021-02-26
Alternative parts:
Price: 85,40 € : 85,40 €
-+
24
P/N (SKU): 7020-150100-30001
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts:
Specification: EPS
Price: 159,90 € : 159,90 €
-+
24
P/N (SKU): 7020-150100-50001
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG, EPS
Price: 260,80 € : 260,80 €
-+
24
P/N (SKU): 7020-150100-B0001
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: LOF+EPS
Alternative parts: 7020-150100-C0000
Specification: LOF, EPS
Price: 139,40 € : 139,40 €
24
P/N (SKU): 7020-150100-C0000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts:
Specification: LOF
Price: 174,50 € : 174,50 €
-+
24
P/N (SKU): 7020-150100-5000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 7020-150100-50001
Specification: SUMITOMO PLUG, EPS
Price: 261,70 € : 261,70 €
24
P/N (SKU): 7020-150100-B000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: LOF
Alternative parts: 7020-150100-C0000
Specification: LOF, WITHOUT EPS
Price: 139,40 € : 139,40 €
25
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
26
P/N (SKU): 7020-150220
Part Name: CABLE, STARTING MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 18,30 € : 18,30 €
-+
27
P/N (SKU): 7020-150210
Part Name: NEGATIVE CABLE, LONG
Effective: 2021-02-26
Alternative parts:
Price: 18,70 € : 18,70 €
-+
28
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 2,45 € : 2,45 €
-+
30
P/N (SKU): 7020-040412
Part Name: COVER, RELAY BOX
Effective: 2021-02-26
Alternative parts: 7020-040412-10000
Price: 6,10 € : 6,10 €
31
P/N (SKU): 0800-179200
Part Name: HIGH-TENSION CABLE ASSY 2
Effective: 2021-02-26
Alternative parts: 0800-179200-10000
Price: 10,65 € : 10,65 €
-+
32
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 12,10 € : 12,10 €
-+
32
P/N (SKU): 7020-150800-1000
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 20,20 € : 20,20 €
-+
32
P/N (SKU): 9010-151010-1000
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: LOF
Price: 12,90 € : 12,90 €
-+
33
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 0,55 € : 0,55 €
-+
34
P/N (SKU): 7020-150230
Part Name: BATTERY POSITIVE WIRE
Effective: 2021-02-26
Alternative parts:
Price: 15,10 € : 15,10 €
-+
35
P/N (SKU): 7020-150240
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
37
P/N (SKU): 6090-040303
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
38
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
39
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 13,20 € : 13,20 €
-+
40
P/N (SKU): 7020-038002
Part Name: FUSE BOX BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
41
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER, RELAY BOX COVER
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
42
P/N (SKU): 8030-151610
Part Name: SPEAKER
Effective: 2021-02-26
Alternative parts:
Price: 19,10 € : 19,10 €
-+
43
P/N (SKU): A030-250800
Part Name: CONTROL UNIT, MTH-A02A TYPE
Effective: 2021-02-26
Alternative parts:
Price: 47,60 € : 47,60 €
-+
44
P/N (SKU): 8030-151640
Part Name: SPEAKER
Effective: 2021-02-26
Alternative parts:
Price: 126,90 € : 126,90 €
-+
45
P/N (SKU): 8030-151650
Part Name: SPEAKER
Effective: 2021-02-26
Alternative parts:
Price: 73,20 € : 73,20 €
-+
46
P/N (SKU): 7020-150111
Part Name: CHIP-TYPE FUSE 30A
Effective: 2021-02-26
Alternative parts:
Specification: 30A
Price: 2,60 € : 2,60 €
-+
47
P/N (SKU): 7030-150111
Part Name: FUSE 25A
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
48
P/N (SKU): 905B-150103
Part Name: PDA PLUG
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
49
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
50
P/N (SKU): 9010-150004
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
51
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2021-02-26
Alternative parts:
Price: 2,95 € : 2,95 €
-+
