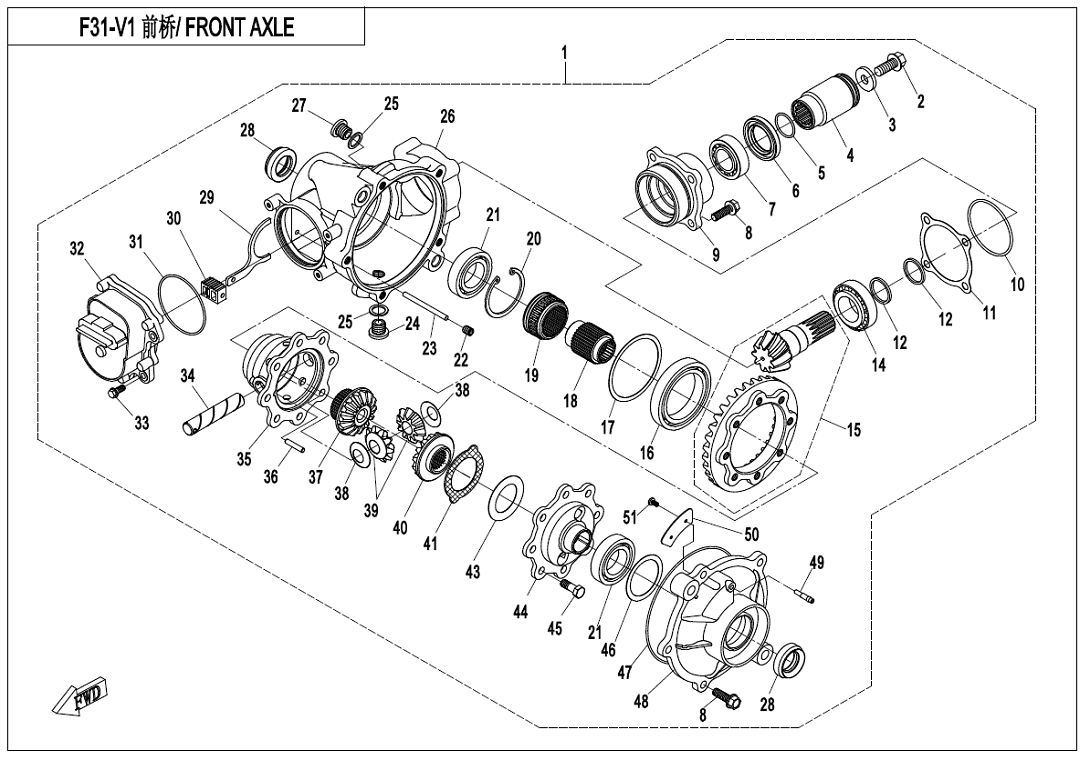

FRONT AXLE - F31-V1 | 2016, ATV, CF400AU-L | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): Q830-310000

Part Name: FRONT GEAR CASE ASSY

Effective: 2021-02-26

Alternative parts: Q830-310000-10002

Price: 571,85 € : 571,85 €

02

P/N (SKU): 0GR0-062203

Part Name: BOLT M10x1.25x20

Effective: 2021-02-26

Alternative parts:

Specification: M10x1.25x20

Price: 1,70 € : 1,70 €

03

P/N (SKU): 0GR0-062204

Part Name: WASHER

Effective: 2021-02-26

Alternative parts:

Specification: 10x27.5x4

Price: 2,10 € : 2,10 €

04

P/N (SKU): 9CR6-300201-10000

Part Name: DRIVE SLEEVE, ENGINE

Effective: 2021-02-26

Alternative parts:

Price: 27,64 € : 27,64 €

05

P/N (SKU): 0800-062205

Part Name: O-RING

Effective: 2021-02-26

Alternative parts:

Specification: 25x2

Price: 1,70 € : 1,70 €

06

P/N (SKU): 0800-062204

Part Name: OIL SEAL

Effective: 2021-02-26

Alternative parts:

Specification: 35x50x7

Price: 6,10 € : 6,10 €

07

P/N (SKU): 30409-02500

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 33005(25x47x17)

Price: 17,82 € : 17,82 €

08

P/N (SKU): 30008-080025810

Part Name: BOLT ASSY

Effective: 2021-02-26

Alternative parts:

Specification: M8x25@COLOR ZINC-PLATED

Price: 1,00 € : 1,00 €

09

P/N (SKU): Q830-311002

Part Name: BEARING SEAT

Effective: 2021-02-26

Alternative parts: 0110-060011-0010+Q830-310007-10002+Q830-311002-00001

Price: 14,90 € : 14,90 €

10

P/N (SKU): Q830-310006

Part Name: O-SEAL RING

Effective: 2021-02-26

Alternative parts: Q830-310006-10000

Specification: 55x2.5

Price: 1,80 € : 1,80 €

11

P/N (SKU): Q830-310023-00100

Part Name: ADJUSTING WASHER T=0.20

Effective: 2021-02-26

Alternative parts:

Specification: T=0.20

Price: 1,70 € : 1,70 €

11

P/N (SKU): Q830-310023-00200

Part Name: ADJUSTING WASHER T=0.30

Effective: 2021-02-26

Alternative parts:

Specification: T=0.30

Price: 1,70 € : 1,70 €

12

P/N (SKU): Q830-311003-00100

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.10

Price: 1,00 € : 1,00 €

12

P/N (SKU): Q830-311003-00200

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.20

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-00300

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.30

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-00400

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.40

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-00500

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.42

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-00600

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.44

Price: 1,00 € : 1,00 €

12

P/N (SKU): Q830-311003-00700

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.46

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-00800

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.48

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-00900

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.50

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-01000

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.60

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-01100

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.70

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-01200

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.80

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-01300

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=2.90

Price: 1,60 € : 1,60 €

12

P/N (SKU): Q830-311003-01400

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-02-26

Alternative parts:

Specification: T=3.00

Price: 1,60 € : 1,60 €

14

P/N (SKU): 30409-03000

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 32006(30x55x17)

Price: 15,75 € : 15,75 €

15

P/N (SKU): Q830-3100A0

Part Name: BEVEL GEAR ASSY, FRONT GEAR CASE

Effective: 2021-02-26

Alternative parts: Q830-3100B0

Price: 92,80 € : 92,80 €

16

P/N (SKU): 30400-05500

Part Name: BEARING

Effective: 2021-02-26

Alternative parts:

Specification: 61911(55x80x13)

Price: 23,52 € : 23,52 €

17

P/N (SKU): Q830-310015-00100

Part Name: ADJUSTING WASHER 79.5x68 T=0.10

Effective: 2021-02-26

Alternative parts:

Specification: T=0.10

Price: 1,70 € : 1,70 €

17

P/N (SKU): Q830-310015-00200

Part Name: ADJUSTING WASHER 79.5x68 T=0.20

Effective: 2021-02-26

Alternative parts:

Specification: T=0.20

Price: 1,70 € : 1,70 €

17

P/N (SKU): Q830-310015-00300

Part Name: ADJUSTING WASHER 79.5x68 T=0.30

Effective: 2021-02-26

Alternative parts:

Specification: T=0.30

Price: 1,70 € : 1,70 €

17

P/N (SKU): Q830-310015-00400

Part Name: ADJUSTING WASHER 79.5x68 T=0.40

Effective: 2021-02-26

Alternative parts:

Specification: T=0.40

Price: 1,70 € : 1,70 €

17

P/N (SKU): Q830-310015-00500

Part Name: ADJUSTING WASHER 79.5x68 T=0.50

Effective: 2021-02-26

Alternative parts:

Specification: T=0.50

Price: 1,70 € : 1,70 €

17

P/N (SKU): Q830-310015-00600

Part Name: ADJUSTING WASHER 79.5x68 T=1.00

Effective: 2021-02-26

Alternative parts:

Specification: T=1.00

Price: 1,70 € : 1,70 €

18

P/N (SKU): Q830-310014

Part Name: DRIVE CLUTCH COVER

Effective: 2021-02-26

Alternative parts:

Price: 18,40 € : 18,40 €

19

P/N (SKU): Q830-310013

Part Name: SPLINE BUSHING

Effective: 2021-02-26

Alternative parts:

Price: 14,90 € : 14,90 €

20

P/N (SKU): 30800-05505

Part Name: CIRCLIP FOR HOLE 55

Effective: 2021-02-26

Alternative parts:

Specification: 55

Price: 2,10 € : 2,10 €

21

P/N (SKU): 30400-03001

Part Name: BEARING 30x55x13

Effective: 2021-02-26

Alternative parts:

Specification: 6006

Price: 9,50 € : 9,50 €

22

P/N (SKU): 30130-080010820

Part Name: INNER HEX SCREW M8x10

Effective: 2021-02-26

Alternative parts: 30130-080010810

Specification: M8x10

Price: 1,00 € : 1,00 €

23

P/N (SKU): Q830-310003

Part Name: PIN SHAFT

Effective: 2021-02-26

Alternative parts:

Price: 3,00 € : 3,00 €

24

P/N (SKU): 0180-332100

Part Name: MAGNETIC DRAIN BOLT

Effective: 2021-02-26

Alternative parts:

Specification: M14x1.25x12

Price: 5,00 € : 5,00 €

25

P/N (SKU): 0180-011006

Part Name: GASKET 14

Effective: 2021-02-26

Alternative parts:

Specification: 14

Price: 1,00 € : 1,00 €

26

P/N (SKU): Q830-310007

Part Name: FRONT GEAR CASE

Effective: 2021-02-26

Alternative parts: Q830-310007-10000

Price: 83,60 € : 83,60 €

27

P/N (SKU): 0180-332100

Part Name: MAGNETIC DRAIN BOLT

Effective: 2021-02-26

Alternative parts:

Specification: M14x1.25x12

Price: 5,00 € : 5,00 €

28

P/N (SKU): 0180-311001

Part Name: OIL SEAL

Effective: 2021-02-26

Alternative parts:

Specification: 24x38x8

Price: 4,00 € : 4,00 €

29

P/N (SKU): Q830-310005

Part Name: SHIFT FORK

Effective: 2021-02-26

Alternative parts:

Price: 18,30 € : 18,30 €

30

P/N (SKU): Q830-310004

Part Name: RACK

Effective: 2021-02-26

Alternative parts:

Price: 10,29 € : 10,29 €

31

P/N (SKU): Q830-310012

Part Name: O-SEAL RING 67.5x2

Effective: 2021-02-26

Alternative parts: Q830-310012-10000

Price: 2,10 € : 2,10 €

32

P/N (SKU): Q830-314000

Part Name: MOTOR ASSY, FRONT GEAR CASE

Effective: 2021-02-26

Alternative parts:

Specification: ORDINARY

Price: 161,70 € : 161,70 €

33

P/N (SKU): 0010-023008-0010

Part Name: BOLT M6x18

Effective: 2021-02-26

Alternative parts: 0010-023008-00001

Specification: M6x18

Price: 1,00 € : 1,00 €

34

P/N (SKU): 0180-313002-10000

Part Name: CENTER GEAR SHAFT, DIFFERENTIAL

Effective: 2021-02-26

Alternative parts:

Price: 5,90 € : 5,90 €

35

P/N (SKU): Q830-313003

Part Name: FRONT DIFFERENTIAL CASE

Effective: 2021-02-26

Alternative parts: Q830-313003-10000

Price: 81,40 € : 81,40 €

36

P/N (SKU): 30906-0503000

Part Name: PIN

Effective: 2021-02-26

Alternative parts:

Specification: 5x30

Price: 1,00 € : 1,00 €

37

P/N (SKU): Q830-313004

Part Name: GEAR, CV SHAFT

Effective: 2021-02-26

Alternative parts:

Price: 45,80 € : 45,80 €

38

P/N (SKU): 0181-313011

Part Name: WEARING RING

Effective: 2021-02-26

Alternative parts:

Price: 1,70 € : 1,70 €

39

P/N (SKU): 0180-313003-00003

Part Name: CENTER GEAR, DIFFERENTIAL

Effective: 2021-02-26

Alternative parts: 0180-313003-00004

Specification: SURFACE PEENING TREATMENT

Price: 8,30 € : 8,30 €

40

P/N (SKU): 0180-313006-00001

Part Name: DRIVEN GEAR, DIFFERENTIAL

Effective: 2021-02-26

Alternative parts:

Price: 22,84 € : 22,84 €

41

P/N (SKU): 0180-313009-0010

Part Name: GASKET

Effective: 2021-02-26

Alternative parts:

Price: 4,00 € : 4,00 €

43

P/N (SKU): 0180-313010

Part Name: ADJUST GASKET

Effective: 2021-02-26

Alternative parts:

Specification: ADJUSTING WASHER 57x40x0.1

Price: 1,50 € : 1,50 €

44

P/N (SKU): Q830-313001

Part Name: MOUNTING PLATE

Effective: 2021-02-26

Alternative parts: Q830-313001-00001

Price: 30,80 € : 30,80 €

45

P/N (SKU): 9010-290001

Part Name: BOLT M8x1x22

Effective: 2021-02-26

Alternative parts:

Specification: M8x1x22

Price: 1,70 € : 1,70 €

46

P/N (SKU): Q830-310009-00100

Part Name: ADJUSTING WASHER 54.5x43 T=0.10

Effective: 2021-02-26

Alternative parts:

Specification: T=0.10

Price: 1,00 € : 1,00 €

46

P/N (SKU): Q830-310009-00200

Part Name: ADJUSTING WASHER 54.5x43 T=0.20

Effective: 2021-02-26

Alternative parts:

Specification: T=0.20

Price: 1,00 € : 1,00 €

46

P/N (SKU): Q830-310009-00300

Part Name: ADJUSTING WASHER 54.5x43 T=0.30

Effective: 2021-02-26

Alternative parts:

Specification: T=0.30

Price: 1,00 € : 1,00 €

46

P/N (SKU): Q830-310009-00400

Part Name: ADJUSTING WASHER 54.5x43 T=0.40

Effective: 2021-02-26

Alternative parts:

Specification: T=0.40

Price: 1,00 € : 1,00 €

46

P/N (SKU): Q830-310009-00500

Part Name: ADJUSTING WASHER 54.5x43 T=0.50

Effective: 2021-02-26

Alternative parts:

Specification: T=0.50

Price: 1,00 € : 1,00 €

46

P/N (SKU): Q830-310009-00600

Part Name: ADJUSTING WASHER 54.5x43 T=1.00

Effective: 2021-02-26

Alternative parts:

Specification: T=1.00

Price: 1,00 € : 1,00 €

47

P/N (SKU): Q830-310011

Part Name: O-SEAL RING

Effective: 2021-02-26

Alternative parts:

Specification: 130x2

Price: 3,00 € : 3,00 €

48

P/N (SKU): Q830-310008

Part Name: FRONT GEAR CASE COVER

Effective: 2021-02-26

Alternative parts: Q830-310008-00001

Price: 64,40 € : 64,40 €

49

P/N (SKU): 0180-311004-0020

Part Name: BREATHER HOSE JOINT

Effective: 2021-02-26

Alternative parts:

Price: 1,40 € : 1,40 €

50

P/N (SKU): Q830-310022

Part Name: OIL BAFFLE

Effective: 2021-02-26

Alternative parts:

Price: 1,60 € : 1,60 €

51

P/N (SKU): 30105-040008410

Part Name: SCREW

Effective: 2021-02-26

Alternative parts:

Specification: M4x8@TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €
