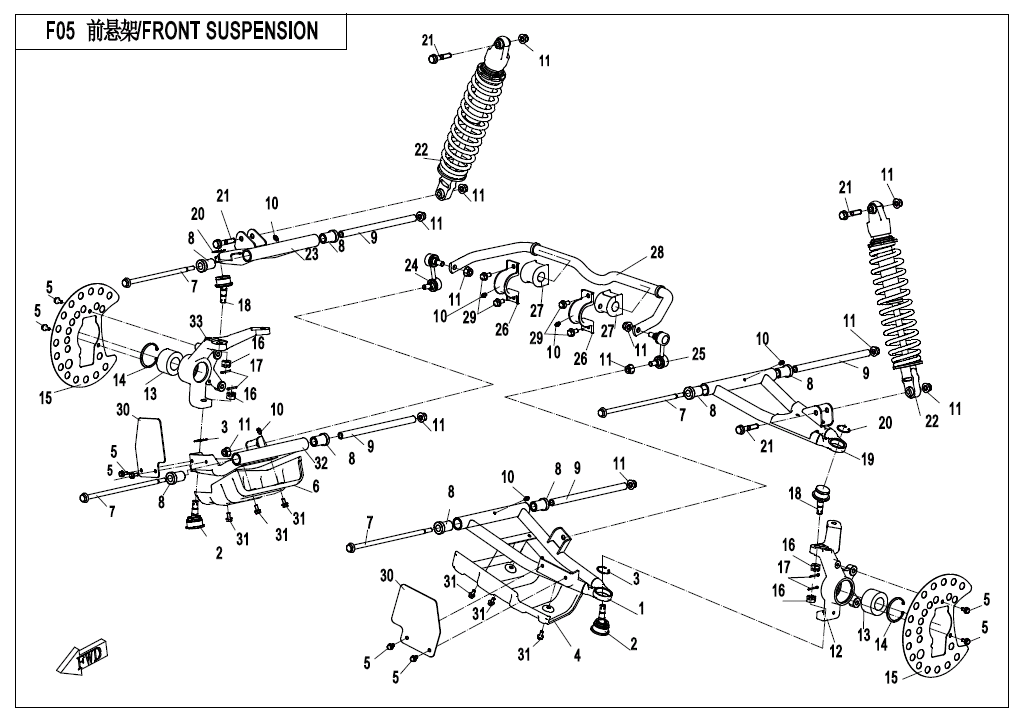

FRONT SUSPENSION - F05

FRONT SUSPENSION - F05

No.

01
P/N (SKU): 703A-050210
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 703A-050210-10000/703V-050210-1500
Specification: ELECTROPHORESIS BLAC
Price: 45,20 € : 45,20 €
02
P/N (SKU): 9060-050900
Part Name: LOWER PIN ASSY
Effective: 2021-02-26
Alternative parts: 9060-050900-10000
Specification: SOMIC
Price: 33,10 € : 33,10 €
-+
02
P/N (SKU): 9060-050900-10000
Part Name: BALL PIN ASSY
Effective: 2021-02-26
Remarks: CCVI, OPTIONAL
Alternative parts:
Specification: CCVI
Price: 22,32 € : 22,32 €
-+
03
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 34
Price: 1,00 € : 1,00 €
-+
04
P/N (SKU): 7030-040721
Part Name: COVER, LH FRONT SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 7,20 € : 7,20 €
-+
05
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 1,00 € : 1,00 €
06
P/N (SKU): 7030-040731
Part Name: FRONT RH SWING ARM GUARD
Effective: 2021-02-26
Alternative parts:
Price: 7,20 € : 7,20 €
-+
07
P/N (SKU): 4060-050101
Part Name: SHAFT, FRONT SWNG ARM
Effective: 2021-02-26
Alternative parts:
Price: 8,20 € : 8,20 €
-+
08
P/N (SKU): 9060-050002
Part Name: LONG BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 9,70 € : 9,70 €
-+
09
P/N (SKU): 9060-050101
Part Name: SPACER, FRONT SWING ARM
Effective: 2021-02-26
Alternative parts: 9060-050101-00002
Price: 5,00 € : 5,00 €
10
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Specification: 45 DEGREE
Price: 1,00 € : 1,00 €
-+
11
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 1,00 € : 1,00 €
12
P/N (SKU): 703A-050001
Part Name: FRONT STEERING KNUCKLE, LH
Effective: 2021-02-26
Alternative parts:
Price: 56,00 € : 56,00 €
-+
13
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 31,30 € : 31,30 €
14
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 2,10 € : 2,10 €
-+
15
P/N (SKU): 7030-050003
Part Name: GUARD, BRAKE DISC
Effective: 2021-02-26
Alternative parts:
Price: 19,64 € : 19,64 €
-+
16
P/N (SKU): 30219-122840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
17
P/N (SKU): 30903-0322240
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts: 30903-0322210
Specification: 3.2x22
Price: 1,00 € : 1,00 €
18
P/N (SKU): 9030-050600-10000
Part Name: MAIN PIN ASSY
Effective: 2021-02-26
Remarks: CCVI, OPTIONAL
Alternative parts:
Specification: CCVI
Price: 20,80 € : 20,80 €
-+
18
P/N (SKU): 9030-050600
Part Name: MAIN PIN ASSY
Effective: 2021-02-26
Alternative parts: 9030-050600-10000
Specification: SOMIC
Price: 37,28 € : 37,28 €
19
P/N (SKU): 703A-050110
Part Name: FRONT UPPER SWING ARM, LH
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 42,10 € : 42,10 €
-+
20
P/N (SKU): 30801-03205
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 32 A-TYPE
Price: 1,00 € : 1,00 €
-+
21
P/N (SKU): 30006-102055840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
22
P/N (SKU): 703A-050500
Part Name: FRONT SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: OIL SHOCK ABSORBER
Price: 111,90 € : 111,90 €
-+
22
P/N (SKU): 703A-050500-10000
Part Name: FRONT SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts: 703A-050500
Specification: GAS SHOCK ABSORBER
Price: 298,90 € : 298,90 €
23
P/N (SKU): 703A-050310
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLAC
Price: 66,00 € : 66,00 €
-+
24
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 75,06 € : 75,06 €
25
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
26
P/N (SKU): 9030-060002
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 4,60 € : 4,60 €
-+
27
P/N (SKU): 9030-060003
Part Name: RUBBER SUPPORT SEAT
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
28
P/N (SKU): 7030-050610
Part Name: FRONT SWAY BAR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 39,60 € : 39,60 €
-+
29
P/N (SKU): 30006-080016840
Part Name: BOLT M8x16
Effective: 2021-02-26
Alternative parts: 30006-080016810
Specification: M8x16
Price: 1,70 € : 1,70 €
-+
30
P/N (SKU): 9060-050201
Part Name: FENDER, SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 7,20 € : 7,20 €
-+
31
P/N (SKU): 30006-060016840
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060016810
Specification: M6x16
Price: 1,00 € : 1,00 €
32
P/N (SKU): 703A-050410
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 703A-050410-10000
Specification: ELECTROPHORESIS BLAC
Price: 65,12 € : 65,12 €
33
P/N (SKU): 7030-050002
Part Name: RH STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts:
Price: 54,60 € : 54,60 €
-+
34
P/N (SKU): 703A-050002
Part Name: FRONT RH STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts:
Price: 74,94 € : 74,94 €
-+
