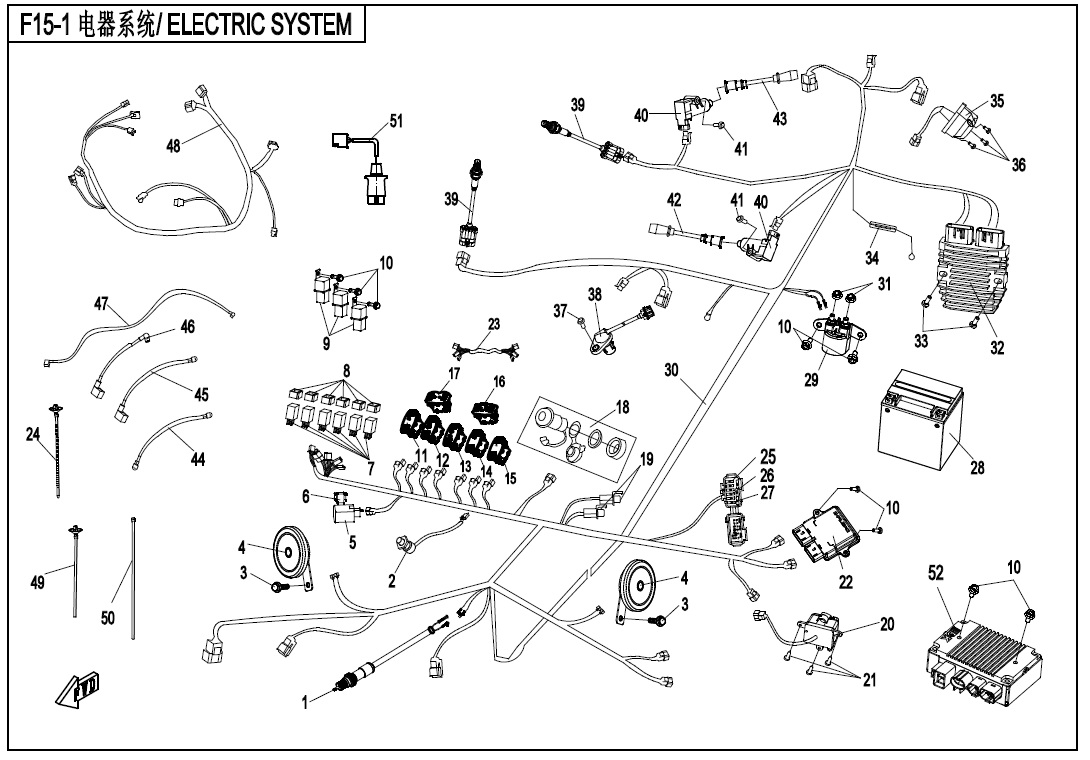

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 9010-150500
Part Name: SWITCH, REAR BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 10,20 € : 10,20 €
-+
02
P/N (SKU): 8030-150300
Part Name: ADJUSTING BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts:
Specification: WITH WIRE
Price: 4,05 € : 4,05 €
-+
02
P/N (SKU): 7030-170300
Part Name: BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts:
Specification: WITHOUT WIRE
Price: 9,55 € : 9,55 €
-+
03
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×14
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 6060-150600
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
05
P/N (SKU): 4020-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 18,30 € : 18,30 €
-+
06
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 6,65 € : 6,65 €
-+
08
P/N (SKU): 9010-150002
Part Name: RUBBER RING, AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 4,10 € : 4,10 €
-+
10
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 0,55 € : 0,55 €
11
P/N (SKU): 7000-151400-10000
Part Name: OVERRIDING SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 11,80 € : 11,80 €
-+
11
P/N (SKU): 7000-151400
Part Name: OVERRIDING SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 6,60 € : 6,60 €
-+
12
P/N (SKU): 7000-151300
Part Name: HORN SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 6,60 € : 6,60 €
-+
12
P/N (SKU): 7000-151300-10000
Part Name: HORN SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 11,80 € : 11,80 €
-+
13
P/N (SKU): 7000-151200-10000
Part Name: DIMMER SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 11,80 € : 11,80 €
-+
13
P/N (SKU): 7000-151200
Part Name: DIMMER SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 6,60 € : 6,60 €
-+
14
P/N (SKU): 7000-151100
Part Name: ILLUMINATION SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 6,60 € : 6,60 €
-+
14
P/N (SKU): 7000-151100-10000
Part Name: ILLUMINATION SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 11,80 € : 11,80 €
-+
15
P/N (SKU): 7000-151600
Part Name: HAZARD SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 6,60 € : 6,60 €
-+
15
P/N (SKU): 7000-151600-10000
Part Name: HAZARD SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 14,00 € : 14,00 €
-+
16
P/N (SKU): 7000-151000-10000
Part Name: STOP SWITCH, ENGINE
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 14,30 € : 14,30 €
-+
16
P/N (SKU): 7000-151000
Part Name: STOP SWITCH, ENGINE
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 6,60 € : 6,60 €
-+
17
P/N (SKU): 7000-151500
Part Name: TURNING SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 6,60 € : 6,60 €
-+
17
P/N (SKU): 7000-151500-10000
Part Name: TURNING SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts:
Specification: SUMITOMO PLUG
Price: 14,00 € : 14,00 €
-+
18
P/N (SKU): 7020-150500-1000
Part Name: OUTPUT SEAT, POWER
Effective: 2021-02-26
Remarks: Sumitomo
Alternative parts:
Specification: SUMITOMO PLUG
Price: 17,30 € : 17,30 €
-+
18
P/N (SKU): 7020-150500
Part Name: OUTPUT SEAT, POWER
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 15,20 € : 15,20 €
-+
19
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 2,45 € : 2,45 €
-+
20
P/N (SKU): 7030-160700-10000
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts: 7030-160700-10002
Specification: SUMITOMO PLUG
Price: 33,70 € : 33,70 €
-+
20
P/N (SKU): 7030-160700
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 7030-160700-00002
Specification: ORDINARY
Price: 24,60 € : 24,60 €
-+
21
P/N (SKU): 30110-480160040
Part Name: SELF-TAPPING SCREW ST4.8x16
Effective: 2021-02-26
Alternative parts: 30110-480160010
Specification: ST4.8x16
Price: 0,95 € : 0,95 €
22
P/N (SKU): 0800-174000-2000
Part Name: ECU
Effective: 2021-02-26
Remarks: Only used for Z8。If used for U8,it is only for AUSTRALIA
Alternative parts:
Specification: FOR ZFORCE 800 ONLY, DELPHI MT05.3
Price: 210,50 € : 210,50 €
-+
23
P/N (SKU): 7000-152100
Part Name: ADAPTOR CABLE, SWITCH
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
24
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
25
P/N (SKU): 8080-151301
Part Name: FUSE 5A
Effective: 2021-02-26
Alternative parts:
Specification: 5A
Price: 0,55 € : 0,55 €
-+
26
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts: 806A-151303
Specification: 15A
Price: 0,55 € : 0,55 €
28
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 30A,DYNOVOLT
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 155,00 € : 155,00 €
29
P/N (SKU): 5270-150500
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 23,30 € : 23,30 €
-+
30
P/N (SKU): 7000-150100-20001
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts: 7000-150100-70000
Specification: SEPARATE RELAY, SUMITOMO PLUG, WITH EPS
Price: 325,20 € : 325,20 €
30
P/N (SKU): 7000-150100-30001
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: OPTIONAL,EPS
Alternative parts: 7000-150100-80000
Specification: SEPARATE RELAY, ORDINARY, WITH EPS
Price: 218,70 € : 218,70 €
30
P/N (SKU): 7000-150100-A0000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: For LOF
Alternative parts: 7000-150100-B0000
Specification: SEPARATE RELAY, ORDINARY, WITH EPS, LOF
Price: 218,10 € : 218,10 €
30
P/N (SKU): 7000-150100-A0001
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: For LOF
Alternative parts:
Price: 302,30 € : 302,30 €
-+
31
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6
Price: 0,55 € : 0,55 €
-+
32
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: 330W
Price: 102,20 € : 102,20 €
-+
32
P/N (SKU): 0800-177000
Part Name: REGULATOR
Effective: 2021-02-26
Remarks: FOR EPS
Alternative parts: 0800-177000-10000
Specification: HIGH POWER, JAPANESE
Price: 233,90 € : 233,90 €
33
P/N (SKU): 30006-060030840
Part Name: BOLT M6x30
Effective: 2021-02-26
Alternative parts: 30006-060030810
Specification: M6x30
Price: 0,55 € : 0,55 €
34
P/N (SKU): 7030-150111
Part Name: FUSE 25A
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
35
P/N (SKU): 7020-150800-1000
Part Name: POWER SOCKET, TRAILER
Effective: 2021-02-26
Remarks: Sumitomo
Alternative parts:
Specification: SUMITOMO PLUG
Price: 20,20 € : 20,20 €
-+
35
P/N (SKU): 7020-150800
Part Name: POWER SOCKET, TRAILER
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 12,10 € : 12,10 €
-+
36
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5×30
Price: 0,55 € : 0,55 €
-+
38
P/N (SKU): 7020-150400
Part Name: SPEED SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 32,50 € : 32,50 €
-+
39
P/N (SKU): 0800-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 125,60 € : 125,60 €
-+
40
P/N (SKU): 0800-178000
Part Name: IGNITION COIL SUB ASSY
Effective: 2021-02-26
Alternative parts:
Price: 45,30 € : 45,30 €
-+
41
P/N (SKU): 30006-060040840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
42
P/N (SKU): 0800-179100
Part Name: HIGH-TENSION CABLE 1
Effective: 2021-02-26
Alternative parts: 0800-179100-10000
Price: 10,10 € : 10,10 €
43
P/N (SKU): 0800-179200
Part Name: HIGH-TENSION CABLE 2
Effective: 2021-02-26
Alternative parts: 0800-179200-10000
Price: 10,65 € : 10,65 €
-+
44
P/N (SKU): 7000-150620
Part Name: NEGATIVE CABLE, STARTER MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 14,30 € : 14,30 €
-+
45
P/N (SKU): 7000-150610
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts: 700V-150420-1500
Price: 24,90 € : 24,90 €
46
P/N (SKU): 7000-150510
Part Name: POSITIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts: 700V-150410-1500
Price: 16,50 € : 16,50 €
47
P/N (SKU): 7000-150520
Part Name: POSITIVE CABLE, STARTER MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 29,70 € : 29,70 €
-+
48
P/N (SKU): 7000-150200-10001
Part Name: AUXILIARY CABLE, EFI
Effective: 2021-02-26
Remarks: SUMITOMO PLUG
Alternative parts:
Specification: SUMITOMO PLUG
Price: 263,00 € : 263,00 €
-+
48
P/N (SKU): 7000-150200-00001
Part Name: AUXILIARY CABLE, EFI
Effective: 2022-09-14
Remarks: ORDINARY
Alternative parts:
Specification: ODRINARY
Price: 181,50 € : 181,50 €
-+
49
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
50
P/N (SKU): 9010-150004
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
51
P/N (SKU): 9010-151020
Part Name: ADAPTOR SEAT, TRAILER POWER
Effective: 2021-02-26
Alternative parts:
Price: 13,20 € : 13,20 €
-+
52
P/N (SKU): 7030-150800
Part Name: EPS CONTROLLER
Effective: 2021-02-26
Alternative parts:
Price: 301,40 € : 301,40 €
-+
