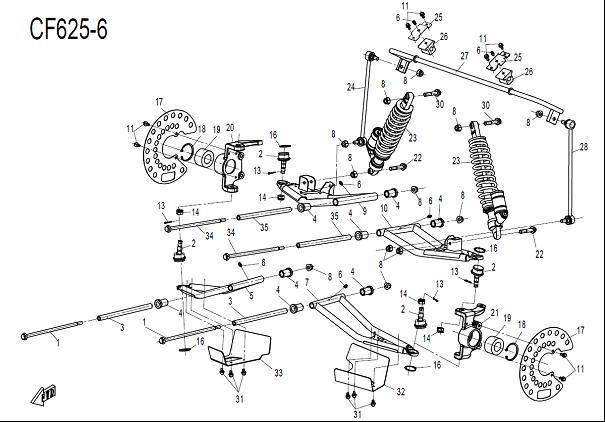

FRONT SUSPENSION - F10

FRONT SUSPENSION - F10

No.

01
P/N (SKU): 4060-050101
Part Name: SHAFT, FRONT SWNG ARM
Effective: 2021-02-26
Alternative parts:
Price: 8,50 € : 8,50 €
-+
02
P/N (SKU): 9030-050600-10000
Part Name: MAIN PIN ASSY
Effective: 2021-02-26
Remarks: CCVI, OPTIONAL
Alternative parts:
Specification: CCVI
Price: 22,00 € : 22,00 €
-+
02
P/N (SKU): 9030-050600
Part Name: MAIN PIN ASSY
Effective: 2021-02-26
Alternative parts: 9030-050600-10000
Specification: SOMIC
Price: 38,00 € : 38,00 €
03
P/N (SKU): 9060-050101
Part Name: SPACER, FRONT SWING ARM
Effective: 2021-02-26
Alternative parts: 9060-050101-00002
Price: 5,50 € : 5,50 €
03
P/N (SKU): 9060-050101-00001
Part Name: SPACER, FRONT SWING ARM
Effective: 2021-02-26
Alternative parts: 9060-050101-00002
Price: 7,50 € : 7,50 €
04
P/N (SKU): 9060-050002
Part Name: LONG BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 10,00 € : 10,00 €
-+
05
P/N (SKU): 4060-050410
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 59,00 € : 59,00 €
-+
06
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Specification: 45 DEGREE
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 4060-050210
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLAC
Price: 59,00 € : 59,00 €
-+
08
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 1,50 € : 1,50 €
09
P/N (SKU): 4060-050310
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLAC
Price: 65,00 € : 65,00 €
-+
10
P/N (SKU): 4060-050110
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLAC
Price: 65,00 € : 65,00 €
-+
11
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 1,50 € : 1,50 €
13
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30219-122810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 9060-050900-10000
Part Name: BALL PIN ASSY
Effective: 2021-02-26
Remarks: CCVI, OPTIONAL
Alternative parts:
Specification: CCVI
Price: 23,00 € : 23,00 €
-+
16
P/N (SKU): 30801-03205
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 32 A-TYPE
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 7000-050001
Part Name: GUARD, BRAKE DISC
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
18
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
19
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 32,00 € : 32,00 €
20
P/N (SKU): 7000-050802
Part Name: RH STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts:
Price: 74,00 € : 74,00 €
-+
21
P/N (SKU): 7000-050702
Part Name: LH STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts:
Price: 72,00 € : 72,00 €
-+
22
P/N (SKU): 30006-102055840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 4060-051500
Part Name: FRONT SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts: 4060-051500-1000
Price: 245,00 € : 245,00 €
23
P/N (SKU): 4060-051500-1000
Part Name: FRONT SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts: 4060-051500-20000
Price: 245,00 € : 245,00 €
23
P/N (SKU): 4060-051500-20000
Part Name: FRONT SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts:
Price: 245,00 € : 245,00 €
-+
23
P/N (SKU): 4060-052500
Part Name: FRONT SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts: 4060-051500
Price: 285,00 € : 285,00 €
24
P/N (SKU): 9060-050640-1000
Part Name: FRONT RH SWAY LINKAGE BAR
Effective: 2021-02-26
Alternative parts: 9060-050640-20000
Price: 38,00 € : 38,00 €
25
P/N (SKU): 9060-050602
Part Name: COVER, FRONT SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 5,00 € : 5,00 €
-+
26
P/N (SKU): 9060-050601-1000
Part Name: RUBBER SEAT, FRONT SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
27
P/N (SKU): 4060-050610
Part Name: FRONT SWAY BAR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 27,00 € : 27,00 €
-+
28
P/N (SKU): 9060-050620-1000
Part Name: FRONT LH SWAY LINKAGE BAR
Effective: 2021-02-26
Alternative parts:
Price: 37,00 € : 37,00 €
-+
30
P/N (SKU): 30006-102050840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
31
P/N (SKU): 30006-060016840
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060016810
Specification: M6x16
Price: 1,50 € : 1,50 €
32
P/N (SKU): 4060-050203
Part Name: PANEL, FRONT LH LOWER SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 23,00 € : 23,00 €
-+
33
P/N (SKU): 4060-050403
Part Name: PANEL, FRONT RH LOWER SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 23,00 € : 23,00 €
-+
34
P/N (SKU): 4060-060101
Part Name: REAR SWING ARM MOUNTING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 5,00 € : 5,00 €
-+
35
P/N (SKU): 9060-060101
Part Name: REAR UPPER SWING ARM MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060101-00002
Price: 7,50 € : 7,50 €
35
P/N (SKU): 9060-060101-00001
Part Name: REAR UPPER SWING ARM MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 9060-060101-00002
Price: 5,00 € : 5,00 €
