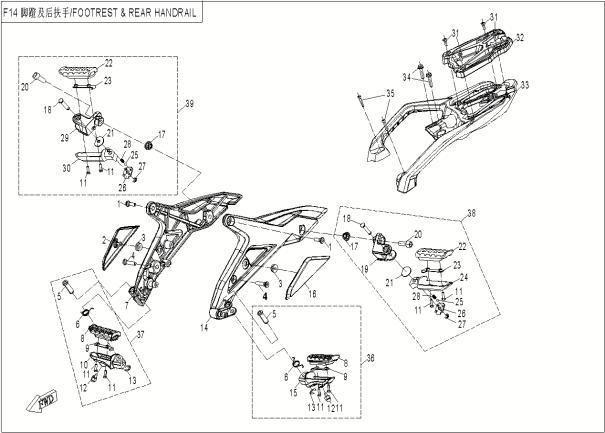

FOOTREST @^ REAR HANDRAIL - F14

FOOTREST @^ REAR HANDRAIL - F14

No.

01
P/N (SKU): 6100-140103
Part Name: BOLT M8x25
Effective: 2021-02-26
Alternative parts: null
Specification: M8X25
Price: 4,50 € : 4,50 €
02
P/N (SKU): 6NTG-140102
Part Name: RH FOOTREST PANEL
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
03
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): A000-140107
Part Name: BOLT M8
Effective: 2021-02-26
Alternative parts: 6KM0-140107
Specification: M8
Price: 4,00 € : 4,00 €
05
P/N (SKU): A000-140141
Part Name: PIN SHAFT Dia 12
Effective: 2021-02-26
Alternative parts: null
Specification: Dia 12
Price: 3,50 € : 3,50 €
06
P/N (SKU): A000-140103-10000
Part Name: SPRING
Effective: 2021-02-26
Alternative parts: A000-140103-20000
Price: 2,00 € : 2,00 €
07
P/N (SKU): 6NTA-140140-0H300
Part Name: RH FOOTREST BRACKET ASSY
Effective: 2021-02-26
Remarks: MATTE SILVER BLACK
Alternative parts: 6NTA-140140-0H301
Specification: MATTE SILVER BLACK
Price: 63,00 € : 63,00 €
07
P/N (SKU): 6NTA-140140-0V100
Part Name: RH FOOTREST BRACKET ASSY
Effective: 2021-02-26
Remarks: SILVER WHITE
Alternative parts: 6NTA-140140-0V101
Specification: SILVER WHITE
Price: 63,00 € : 63,00 €
08
P/N (SKU): 6NTG-140122
Part Name: RUBBER, FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 7,50 € : 7,50 €
09
P/N (SKU): 6NTG-140160
Part Name: CONNECTING PLATE, FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
10
P/N (SKU): 6NTG-140131-0V100
Part Name: FRONT RH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER WHITE
Price: 15,00 € : 15,00 €
11
P/N (SKU): 30006-050016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M5×16
Price: 1,50 € : 1,50 €
12
P/N (SKU): A010-140123
Part Name: LIMIT BOLT
Effective: 2021-02-26
Alternative parts: 6KM0-130123
Price: 5,00 € : 5,00 €
13
P/N (SKU): 30802-00903
Part Name: SPLIT WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: 9
Price: 1,50 € : 1,50 €
14
P/N (SKU): 6NTA-140110-0H300
Part Name: LH FOOTREST BRACKET ASSY
Effective: 2021-02-26
Remarks: MATTE SILVER BLACK
Alternative parts: null
Specification: MATTE SILVER BLACK
Price: 60,00 € : 60,00 €
14
P/N (SKU): 6NTA-140110-0V100
Part Name: LH FOOTREST BRACKET ASSY
Effective: 2021-02-26
Remarks: SILVER WHITE
Alternative parts: null
Specification: SILVER WHITE
Price: 62,00 € : 62,00 €
15
P/N (SKU): 6NTG-140121-0V100
Part Name: FRONT LH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER WHITE
Price: 16,00 € : 16,00 €
16
P/N (SKU): 6NTG-140101
Part Name: PANEL, LH FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
17
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): A000-140142
Part Name: PIN SHAFT 8
Effective: 2021-02-26
Alternative parts: null
Specification: Dia 8
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 6NTA-140151-0V100
Part Name: MOUNTING SEAT, LH REAR FOOTREST
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER WHITE
Price: 27,00 € : 27,00 €
20
P/N (SKU): 30102-102035810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: null
Specification: M10×1.25×35
Price: 1,50 € : 1,50 €
21
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): A010-140122-10000
Part Name: RUBBER, FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
23
P/N (SKU): A010-140160-10000
Part Name: CONNECTING PLATE, FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 6,50 € : 6,50 €
24
P/N (SKU): A010-140141-1V100
Part Name: REAR LH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER WHITE
Price: 27,00 € : 27,00 €
25
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2021-02-26
Alternative parts: 6HVV-140006-1000
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 30802-00605
Part Name: SPLIT WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: 6
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 6NTA-140152-0V100
Part Name: BRACKET, RH REAR FOOTREST
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER WHITE
Price: 27,00 € : 27,00 €
30
P/N (SKU): A010-140151-1V100
Part Name: REAR RH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER WHITE
Price: 21,00 € : 21,00 €
31
P/N (SKU): A000-040703
Part Name: INNER HEX SCREW
Effective: 2021-02-26
Alternative parts: null
Specification: M6x20
Price: 2,00 € : 2,00 €
32
P/N (SKU): 6NTA-141001
Part Name: REAR ARMREST COVER
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
33
P/N (SKU): 6NTA-140201-0V100
Part Name: REAR ARMREST
Effective: 2021-02-26
Alternative parts: 6NTV-140201-J000-0V100
Specification: SILVER WHITE
Price: 106,00 € : 106,00 €
34
P/N (SKU): 30006-080030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8×30
Price: 1,50 € : 1,50 €
35
P/N (SKU): 30102-080030810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: null
Specification: M8×30
Price: 1,50 € : 1,50 €
-+
36
P/N (SKU): 6NTA-1401A0
Part Name: FRONT FOOTREST, LH
Effective: 2021-02-26
Alternative parts: null
Price: 37,00 € : 37,00 €
37
P/N (SKU): 6NTA-1401B0
Part Name: FRONT RH FOOTREST ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 37,00 € : 37,00 €
38
P/N (SKU): 6NTA-1401C0
Part Name: LH REAR FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 57,00 € : 57,00 €
39
P/N (SKU): 6NTA-1401D0
Part Name: REAR FOOTREST, RH
Effective: 2021-02-26
Alternative parts: null
Price: 57,00 € : 57,00 €
