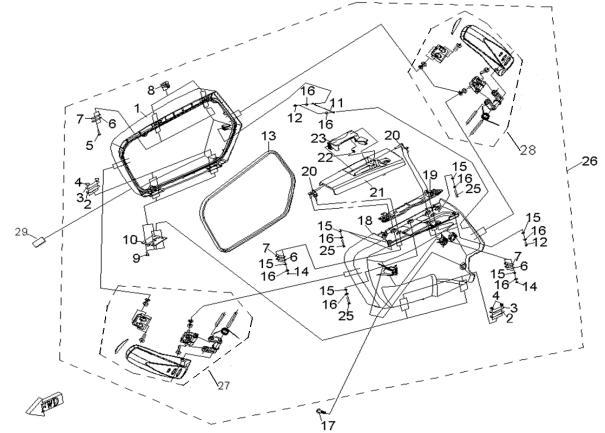

SIDE BOX ,RH - F22-2

SIDE BOX ,RH - F22-2

No.

01
P/N (SKU): A010-220004-0RD0
Part Name: RH SIDE BOX COVER
Effective: 2021-02-26
Remarks: CFMOTO RED
Alternative parts:
Specification: CFMOTO RED
Price: 189,00 € : 189,00 €
-+
01
P/N (SKU): A010-220004-0R30
Part Name: RH SIDE BOX COVER
Effective: 2021-02-26
Remarks: BRIGHT RED
Alternative parts:
Specification: HONDA RED
Price: 193,00 € : 193,00 €
-+
01
P/N (SKU): A010-220004-0B30
Part Name: RH SIDE BOX COVER
Effective: 2021-02-26
Remarks: PEARL BLACK
Alternative parts:
Specification: PEARL BLACK
Price: 188,00 € : 188,00 €
-+
01
P/N (SKU): A010-220004-0V20
Part Name: RH SIDE BOX COVER
Effective: 2021-02-26
Remarks: PEARL WHITE
Alternative parts: A010-220004-1V200
Specification: PEARL WHITE
Price: 226,00 € : 226,00 €
01
P/N (SKU): A010-220004-0B50
Part Name: RH SIDE BOX COVER
Effective: 2021-02-26
Remarks: TITANIUM GREY
Alternative parts:
Specification: TITANIUM GREY
Price: 191,00 € : 191,00 €
-+
01
P/N (SKU): A010-220004-1BJ00
Part Name:
Effective: 2021-02-26
Remarks: TITANIUM GREY+MATTE PEARL BLACK
Alternative parts:
Price: 188,00 € : 188,00 €
-+
01
P/N (SKU): A010-220004-1EE00
Part Name:
Effective: 2021-02-26
Remarks: LAKE BLUE+MATTE SILVER BLACK
Alternative parts:
Price: 188,00 € : 188,00 €
-+
01
P/N (SKU): A010-220004-1VA00
Part Name:
Effective: 2021-02-26
Remarks: NEW PEARL WHITE+MATTE SILVER BLACK
Alternative parts:
Price: 188,00 € : 188,00 €
-+
01
P/N (SKU): A010-220004-0V900
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 226,00 € : 226,00 €
-+
02
P/N (SKU): A010-220006
Part Name: WASHER, HINGE
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
03
P/N (SKU): A010-220005
Part Name: PLATE, HINGE
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
04
P/N (SKU): 30202-050140
Part Name: NUT M5
Effective: 2021-02-26
Alternative parts: 30202-050110
Specification: M5
Price: 1,50 € : 1,50 €
05
P/N (SKU): 30110-420250040
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: 30110-420250010
Specification: ST4.2x25@ARMY GREEN
Price: 1,50 € : 1,50 €
06
P/N (SKU): A010-220012
Part Name: PLATE, LOCK SEAT
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): A010-220013
Part Name: WASHER, LOCK SEAT
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): A010-220014
Part Name: LOCK SEAT
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
09
P/N (SKU): 30105-050012440
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 30105-050012410
Specification: M5x12@ARMY GREEN
Price: 1,50 € : 1,50 €
10
P/N (SKU): A010-220100
Part Name: HINGE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
11
P/N (SKU): A010-220501
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Price: 6,50 € : 6,50 €
-+
12
P/N (SKU): 30110-420160040
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: 30110-420160010
Specification: ST4.2x16@ARMY GREEN
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): A010-220007
Part Name: SEAL STRIP
Effective: 2021-02-26
Alternative parts: A010-220007-10000
Specification: 3m
Price: 12,00 € : 12,00 €
14
P/N (SKU): 30202-040140
Part Name: NUT M4
Effective: 2021-02-26
Remarks: is replaced by 30202-040110
Alternative parts: 30202-040110
Specification: M4
Price: 1,50 € : 1,50 €
15
P/N (SKU): 6090-040203
Part Name: DEFLECTOR DAMPER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 30305-040142
Part Name: WASHER
Effective: 2021-02-26
Remarks: is replaced by 30305-040112
Alternative parts: 30305-040112
Specification: 4
Price: 3,00 € : 3,00 €
17
P/N (SKU): A010-220021
Part Name: BOLT M8x32
Effective: 2021-02-26
Alternative parts:
Specification: M8x32
Price: 4,50 € : 4,50 €
-+
18
P/N (SKU): A010-220003-0H30
Part Name: RH SIDE BOX
Effective: 2021-02-26
Remarks: MAT BLACK
Alternative parts:
Specification: SILVER BLACK
Price: 116,00 € : 116,00 €
-+
19
P/N (SKU): A010-220300
Part Name: SIDE BOX LOCK ASSY
Effective: 2021-02-26
Alternative parts:
Price: 13,00 € : 13,00 €
-+
20
P/N (SKU): A010-220200
Part Name: SEAT, LOCKING COVER
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
21
P/N (SKU): A010-220017-0H30
Part Name: COVER, RH LOCK SET
Effective: 2021-02-26
Remarks: MAT BLACK
Alternative parts:
Specification: SILVER BLACK
Price: 21,00 € : 21,00 €
-+
22
P/N (SKU): A010-220009-00001
Part Name: SPRING 1, RETURN
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): A010-220019-0H30
Part Name: LOCKING COVER, RH
Effective: 2021-02-26
Remarks: MAT BLACK
Alternative parts:
Specification: SILVER BLACK
Price: 18,00 € : 18,00 €
-+
25
P/N (SKU): 30110-420320040
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: 30110-420320010
Specification: ST4.2x32@ARMY GREEN
Price: 1,50 € : 1,50 €
26
P/N (SKU): A010-2230A0-0B30
Part Name: RH SIDE BOX ASSY
Effective: 2021-02-26
Remarks: PEARL BLACK
Alternative parts: A010-223000-1B300
Specification: PEARL BLACK
Price: 221,00 € : 221,00 €
26
P/N (SKU): A010-2230A0-0V20
Part Name: RH SIDE BOX ASSY
Effective: 2021-02-26
Remarks: PEARL WHITE
Alternative parts: A010-223000-1V200
Specification: PEARL WHITE
Price: 224,00 € : 224,00 €
26
P/N (SKU): A010-2230A0-0R30
Part Name: RH SIDE BOX ASSY
Effective: 2021-02-26
Remarks: BRIGHT RED
Alternative parts: A010-223000-1R300
Specification: HONDA RED
Price: 220,00 € : 220,00 €
26
P/N (SKU): A010-2230A0-0B50
Part Name: RH SIDE BOX ASSY
Effective: 2021-02-26
Remarks: TITANIUM GREY
Alternative parts: A010-223000-1B500
Specification: TITANIUM GREY
Price: 280,00 € : 280,00 €
26
P/N (SKU): A010-2230A0-0RD0
Part Name: RH SIDE BOX ASSY
Effective: 2021-02-26
Remarks: CFMOTO RED
Alternative parts:
Specification: CFMOTO RED
Price: 225,00 € : 225,00 €
-+
27
P/N (SKU): A010-220040
Part Name: FASTNER ASSY 2
Effective: 2021-02-26
Alternative parts: A010-220022+A010-220040-10000
Price: 11,00 € : 11,00 €
28
P/N (SKU): A010-220030
Part Name: FASTNER ASSY1
Effective: 2021-02-26
Alternative parts: A010-220022+A010-220030-10000
Price: 11,00 € : 11,00 €
29
P/N (SKU): A010-160005-1000
Part Name: REAR REFLECTOR
Effective: 2021-02-26
Remarks: DOT
Alternative parts:
Price: 3,00 € : 3,00 €
-+
