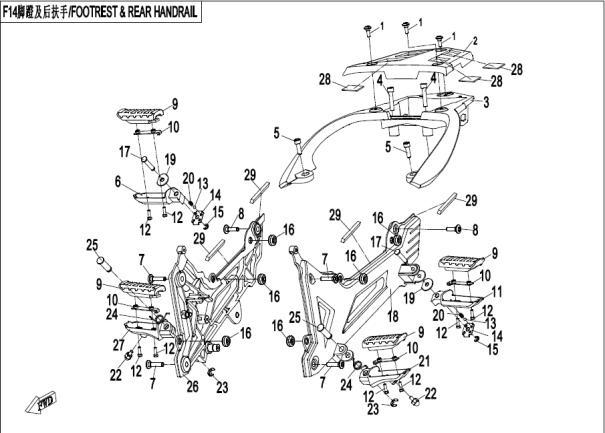

FOOTREST @^ REAR HANDRAIL - F14

FOOTREST @^ REAR HANDRAIL - F14

No.

01
P/N (SKU): A000-060002
Part Name: CHAIN GUARD SCREW
Effective: 2021-02-26
Alternative parts: null
Price: 4,00 € : 4,00 €
-+
02
P/N (SKU): A010-140202
Part Name: REAR ARMREST DECO GUARD
Effective: 2021-02-26
Alternative parts: null
Price: 7,50 € : 7,50 €
03
P/N (SKU): A010-140201-0H30
Part Name: REAR ARMREST
Effective: 2021-02-26
Remarks: MATT SILVER BLACK
Alternative parts: null
Specification: SILVER BLACK
Price: 78,00 € : 78,00 €
03
P/N (SKU): A010-140201-0B500
Part Name: null
Effective: 2021-02-26
Remarks: TITANIUM GREY
Alternative parts: null
Specification: null
Price: 100,00 € : 100,00 €
04
P/N (SKU): 30102-080045810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 30102-080030860
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: M8x30@DACROMET
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): A010-140151
Part Name: REAR RH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: A010-140122-10000+A010-140151-1V100+A010-140160-10000
Price: 15,00 € : 15,00 €
06
P/N (SKU): A010-140151-1V100
Part Name: REAR RH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER WHITE
Price: 21,00 € : 21,00 €
07
P/N (SKU): A000-140107
Part Name: BOLT M8
Effective: 2021-02-26
Alternative parts: 6KM0-140107
Specification: M8
Price: 4,00 € : 4,00 €
08
P/N (SKU): A000-020008
Part Name: BOLT M8x20
Effective: 2021-02-26
Alternative parts: null
Specification: M8x20
Price: 3,50 € : 3,50 €
09
P/N (SKU): A010-140122-10000
Part Name: RUBBER, FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
09
P/N (SKU): A010-140122
Part Name: RUBBER, FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 4,00 € : 4,00 €
10
P/N (SKU): A010-140160
Part Name: CONNECTING PLATE, FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
10
P/N (SKU): A010-140160-10000
Part Name: CONNECTING PLATE, FOOTREST
Effective: 2021-02-26
Alternative parts: null
Price: 6,50 € : 6,50 €
11
P/N (SKU): A010-140141-1V100
Part Name: REAR LH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER WHITE
Price: 27,00 € : 27,00 €
12
P/N (SKU): 30105-050016410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2021-02-26
Alternative parts: null
Specification: M5x16@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
13
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2021-02-26
Alternative parts: 6HVV-140006-1000
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 30802-00603
Part Name: E RINGS
Effective: 2021-02-26
Remarks: is replaced by 30802-00605
Alternative parts: null
Specification: GB/T896_6
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): A000-040302
Part Name: RUBBER DAMPER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): A000-140142
Part Name: PIN SHAFT 8
Effective: 2021-02-26
Alternative parts: null
Specification: Dia 8
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): A010-140101-0V101
Part Name: LH FOOTREST BRACKET
Effective: 2021-02-26
Remarks: SILVER WHITE
Alternative parts: null
Specification: SILVER WHITE
Price: 93,00 € : 93,00 €
18
P/N (SKU): A010-140101-0B801
Part Name: LH FOOTREST BRACKET
Effective: 2021-02-26
Remarks: MATT PEARL BLACK
Alternative parts: A010-140101-1B800
Specification: MATTE PEARL BLACK
Price: 70,00 € : 70,00 €
18
P/N (SKU): A010-140101-0B501
Part Name: null
Effective: 2021-02-26
Remarks: MATTE BLACK
Alternative parts: null
Specification: null
Price: 87,00 € : 87,00 €
19
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): A010-140121-1V100
Part Name: FRONT LH FOOTREST SEAT
Effective: 2021-02-26
Remarks: SILVER WHITE
Alternative parts: null
Specification: SILVER WHITE
Price: 21,00 € : 21,00 €
21
P/N (SKU): A010-140121
Part Name: FRONT LH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: A010-140121-1V100+A010-140122-10000+A010-140160-10000
Price: 15,00 € : 15,00 €
22
P/N (SKU): A010-140123
Part Name: LIMIT BOLT
Effective: 2021-02-26
Alternative parts: 6KM0-130123
Price: 5,00 € : 5,00 €
23
P/N (SKU): 30802-00903
Part Name: E RINGS
Effective: 2021-02-26
Alternative parts: null
Specification: 9
Price: 1,50 € : 1,50 €
24
P/N (SKU): A000-140103-10000
Part Name: SPRING
Effective: 2021-02-26
Alternative parts: A000-140103-20000
Price: 2,00 € : 2,00 €
25
P/N (SKU): A000-140141
Part Name: PIN SHAFT Dia 12
Effective: 2021-02-26
Alternative parts: null
Specification: Dia 12
Price: 3,50 € : 3,50 €
26
P/N (SKU): A010-140110-0B801
Part Name: RH FOOTREST BRACKET ASSY
Effective: 2021-02-26
Remarks: MATT PEARL BLACK
Alternative parts: A010-140110-1B800
Specification: MATTE PEARL BLACK
Price: 78,00 € : 78,00 €
26
P/N (SKU): A010-140110-0V101
Part Name: null
Effective: 2021-02-26
Remarks: SILVER WHITE
Alternative parts: null
Specification: null
Price: 107,00 € : 107,00 €
26
P/N (SKU): A010-140110-0B501
Part Name: null
Effective: 2021-02-26
Remarks: TITANIUM GREY
Alternative parts: null
Specification: null
Price: 74,00 € : 74,00 €
27
P/N (SKU): A010-140131
Part Name: FRONT RH FOOTREST
Effective: 2021-02-26
Alternative parts: A010-140122-10000+A010-140131-1V100+A010-140160-10000
Price: 15,00 € : 15,00 €
27
P/N (SKU): A010-140131-1V100
Part Name: FRONT RH FOOTREST SEAT
Effective: 2021-02-26
Alternative parts: null
Specification: SILVER WHITE
Price: 26,00 € : 26,00 €
28
P/N (SKU): 9010-120008
Part Name: SPONGE PAD, FUEL TANK
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9060-038128
Part Name: HEAT INSULATOR SPONGE STRIP 2
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
