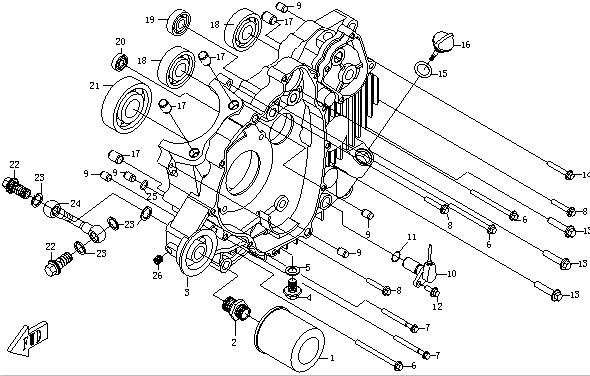

LEFT CRANKCASE - E02

LEFT CRANKCASE - E02

No.

01
P/N (SKU): 0180-011300-0B00
Part Name: OIL FILTER
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 12,20 € : 12,20 €
-+
02
P/N (SKU): 0180-011004-0010
Part Name: OIL FILTER BOLT
Effective: 2021-02-26
Alternative parts:
Price: 7,20 € : 7,20 €
-+
03
P/N (SKU): 0180-011100-0080
Part Name: LH CRANKCASE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 171,90 € : 171,90 €
-+
04
P/N (SKU): 0180-011500
Part Name: MAGNETIC DRAIN BOLT
Effective: 2021-02-26
Remarks: MAGNETIC
Alternative parts:
Specification: M12x1.5
Price: 3,00 € : 3,00 €
-+
05
P/N (SKU): 0010-021014
Part Name: WASHER 12
Effective: 2021-02-26
Alternative parts:
Specification: 12
Price: 1,70 € : 1,70 €
-+
06
P/N (SKU): 0110-013031-0030
Part Name: BOLT M6x80
Effective: 2021-02-26
Remarks: is replaced by 0110-013031-0010
Alternative parts: 0110-013031-0010
Specification: M6x80
Price: 1,00 € : 1,00 €
07
P/N (SKU): 0010-011017-0030
Part Name: BOLT M6x60
Effective: 2021-02-26
Remarks: is replaced by 0010-011017-0010
Alternative parts: 0010-011017-0010
Specification: M6x60
Price: 1,00 € : 1,00 €
08
P/N (SKU): 0010-013008-0030
Part Name: BOLT M6x35
Effective: 2021-02-26
Remarks: is replaced by 0010-013008-0010
Alternative parts: 0010-013008-0010
Specification: M6x35
Price: 1,00 € : 1,00 €
09
P/N (SKU): 0010-021005
Part Name: DOWEL PIN 10x14
Effective: 2021-02-26
Alternative parts:
Specification: 10x14
Price: 1,00 € : 1,00 €
-+
10
P/N (SKU): 0130-011300-0001
Part Name: SPEEDOMETER SENSOR
Effective: 2021-02-26
Remarks: 155℃
Alternative parts:
Price: 36,60 € : 36,60 €
-+
11
P/N (SKU): 0130-011303
Part Name: O-SEAL RING 14x1.4
Effective: 2021-02-26
Alternative parts:
Price: 1,30 € : 1,30 €
-+
12
P/N (SKU): 0010-090005-0030
Part Name: BOLT M6x16
Effective: 2021-02-26
Remarks: is replaced by 0010-090005-0010
Alternative parts: 0010-090005-0010
Specification: M6x16
Price: 1,00 € : 1,00 €
13
P/N (SKU): 0110-060010-0030
Part Name: BOLT M8x38
Effective: 2021-02-26
Alternative parts: 0110-060010-0010
Specification: M8X38
Price: 1,80 € : 1,80 €
14
P/N (SKU): 0010-013009-0030
Part Name: BOLT M6x40
Effective: 2021-02-26
Remarks: is replaced by 0010-013009-0010
Alternative parts: 0010-013009-0010
Specification: M6x40
Price: 1,00 € : 1,00 €
15
P/N (SKU): 0110-013030
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 18x3.55
Price: 1,00 € : 1,00 €
-+
16
P/N (SKU): 0GR0-011005
Part Name: DIPSTICK, ENGINE OIL
Effective: 2021-02-26
Alternative parts:
Price: 2,80 € : 2,80 €
-+
17
P/N (SKU): 0180-011005
Part Name: DOWEL PIN Dia 13x18
Effective: 2021-02-26
Alternative parts:
Specification: Dia13x18
Price: 1,70 € : 1,70 €
-+
18
P/N (SKU): 30400-01701
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6303
Price: 7,70 € : 7,70 €
-+
19
P/N (SKU): 30499-01500
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6202
Price: 7,70 € : 7,70 €
-+
20
P/N (SKU): 30400-02200
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Price: 7,90 € : 7,90 €
-+
21
P/N (SKU): 30499-03500
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6307
Price: 27,90 € : 27,90 €
-+
22
P/N (SKU): 0180-011007-0030
Part Name: BOLT M14x1.5
Effective: 2021-02-26
Remarks: is replaced by 0180-011007-0010
Alternative parts: 0180-011007-0010
Specification: M14x1.5
Price: 3,00 € : 3,00 €
23
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Alternative parts:
Specification: 14
Price: 1,00 € : 1,00 €
-+
24
P/N (SKU): 0180-011400-0030
Part Name: OUTER OIL PIPE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 10,50 € : 10,50 €
-+
25
P/N (SKU): 30502-010000N
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 10x1.8
Price: 1,00 € : 1,00 €
-+
26
P/N (SKU): 30131-100010810
Part Name: INNER HEX SCREW M8x10
Effective: 2021-02-26
Alternative parts:
Specification: M10x10
Price: 1,00 € : 1,00 €
-+
