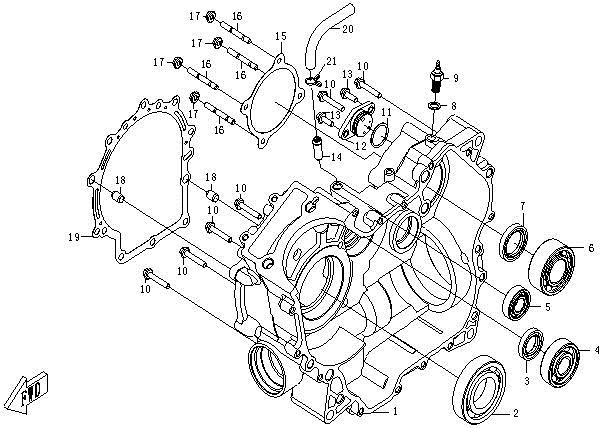

RIGHT CRANKCASE - E03

No.

01
P/N (SKU): 0180-012100-0080
Part Name: RH CRANKCASE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 174,90 € : 174,90 €
-+
02
P/N (SKU): 30499-04000
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6208
Price: 33,10 € : 33,10 €
-+
03
P/N (SKU): 0180-012004
Part Name: OIL SEAL 22x38x7
Effective: 2021-02-26
Alternative parts:
Specification: 22x38x7
Price: 8,10 € : 8,10 €
-+
04
P/N (SKU): 30400-02200
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Price: 5,90 € : 5,90 €
-+
05
P/N (SKU): 30400-01703
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6203RZ
Price: 8,15 € : 8,15 €
-+
06
P/N (SKU): 30499-03000
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 5206
Price: 66,10 € : 66,10 €
-+
07
P/N (SKU): 0180-012006
Part Name: OIL SEAL 30x45x7
Effective: 2021-02-26
Alternative parts: 0180-012006-00001
Specification: 30x45x7
Price: 5,10 € : 5,10 €
08
P/N (SKU): 0010-060010
Part Name: WASHER 10
Effective: 2021-02-26
Alternative parts:
Specification: 10
Price: 0,95 € : 0,95 €
-+
09
P/N (SKU): 0180-012310-0010
Part Name: REVERSE SENSOR ASSY
Effective: 2021-02-26
Alternative parts: 0700-065210
Price: 16,30 € : 16,30 €
10
P/N (SKU): 0010-013008-0010
Part Name: BOLT M6x35
Effective: 2021-02-26
Alternative parts:
Specification: M6x35
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): 0180-023002
Part Name: O-SEAL RING 24x2.5
Effective: 2021-02-26
Alternative parts:
Specification: 24x2.5
Price: 1,05 € : 1,05 €
-+
12
P/N (SKU): 0180-012200
Part Name: GEAR SENSOR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 20,90 € : 20,90 €
-+
13
P/N (SKU): 0010-023008-0010
Part Name: BOLT M6x18
Effective: 2021-02-26
Alternative parts: 0010-023008-00001
Specification: M6x18
Price: 0,55 € : 0,55 €
14
P/N (SKU): 0010-013006-0010
Part Name: JOINT, BREATHER HOSE
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
15
P/N (SKU): 0180-012002
Part Name: GASKET(2), CVT CASE
Effective: 2021-02-26
Alternative parts:
Price: 3,60 € : 3,60 €
-+
16
P/N (SKU): 30011-060040820
Part Name: STUD
Effective: 2021-02-26
Alternative parts:
Specification: M6x40
Price: 0,95 € : 0,95 €
-+
17
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,05 € : 1,05 €
-+
18
P/N (SKU): 0010-021005
Part Name: DOWEL PIN 10x14
Effective: 2021-02-26
Alternative parts:
Specification: 10x14
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): 0180-012001
Part Name: GASKET(1), CVT CASE
Effective: 2021-02-26
Alternative parts:
Price: 7,15 € : 7,15 €
-+
20
P/N (SKU): 0180-012008
Part Name: BREATHER HOSE
Effective: 2021-02-26
Alternative parts: 0010-013007
Price: 2,60 € : 2,60 €
21
P/N (SKU): 30601-114010
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: A14
Price: 0,55 € : 0,55 €
-+
