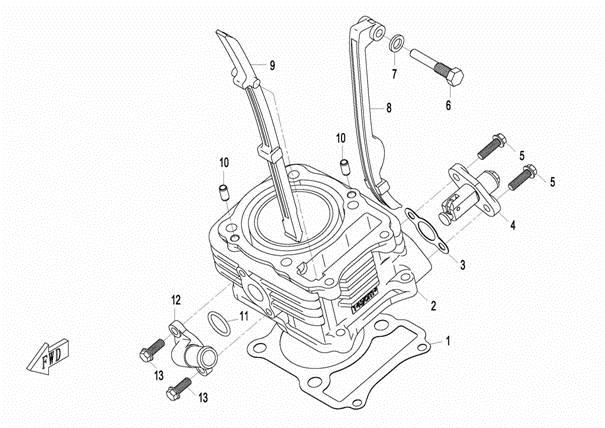

CYLINDER BODY ASSY - E02-3

CYLINDER BODY ASSY - E02-3

No.

01
P/N (SKU): 0A70-023004-0G30
Part Name: CYLINDER BODY GASKET
Effective: 2021-02-26
Remarks: WITH NO ASBESTOS
Alternative parts:
Specification: MUSTARD GREEN
Price: 1,00 € : 1,00 €
-+
02
P/N (SKU): 0A80-023100-0B220
Part Name: CYLINDER ASSY
Effective: 2021-02-26
Remarks: MATTE BLACK'/Ⅱ,57.010-57.019
Alternative parts: 0A80-023100-0B221
Specification: THE SIZE OF 57.010 - 57.019
Price: 48,00 € : 48,00 €
02
P/N (SKU): 0A80-023100-0B210
Part Name: CYLINDER ASSY
Effective: 2021-02-26
Remarks: MATTE BLACK',Ⅰ,57.000-57.010
Alternative parts: 0A80-023100-0B211
Specification: THE SIZE OF 57.000 - 57.010
Price: 48,00 € : 48,00 €
03
P/N (SKU): 0A70-023001-0G30
Part Name: GASKET,TENSIONER
Effective: 2021-02-26
Remarks: WITH NO ASBESTOS
Alternative parts:
Specification: MUSTARD GREEN
Price: 1,00 € : 1,00 €
-+
04
P/N (SKU): 0A70-023200-0B20
Part Name: TENSIONER ASSY
Effective: 2021-02-26
Alternative parts: 0A70-023200-10000
Specification: MATTE BLACK
Price: 9,90 € : 9,90 €
05
P/N (SKU): 0010-023008-0030
Part Name: BOLT M6x18
Effective: 2021-02-26
Remarks: is replaced by 0010-023008-0010
Alternative parts: 0010-023008-0010
Specification: M6x18
Price: 1,00 € : 1,00 €
06
P/N (SKU): 0180-023007-0030
Part Name: TENSIONER PLATE BOLT
Effective: 2021-02-26
Remarks: is replaced by 0180-023007-0010
Alternative parts: 0180-023007-0010
Price: 2,70 € : 2,70 €
-+
07
P/N (SKU): 0010-021016
Part Name: WASHER 8
Effective: 2021-02-26
Alternative parts:
Specification: 8
Price: 1,00 € : 1,00 €
-+
08
P/N (SKU): 0A70-023300
Part Name: TENSION PLATE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 7,70 € : 7,70 €
-+
09
P/N (SKU): 0A70-023400
Part Name: CHAIN GUIDE
Effective: 2021-02-26
Alternative parts:
Price: 6,10 € : 6,10 €
-+
10
P/N (SKU): 01A0-056004
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts:
Specification: 6x12
Price: 1,00 € : 1,00 €
-+
11
P/N (SKU): 0A70-060011
Part Name: O-RING, DRIVE SPROCKET BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
12
P/N (SKU): 0A70-023003-0B20
Part Name: CYLINDER WATER INLET PIPE JOINT
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 5,20 € : 5,20 €
-+
13
P/N (SKU): 0010-090005-0030
Part Name: BOLT M6x16
Effective: 2021-02-26
Remarks: is replaced by 0010-090005-0010
Alternative parts: 0010-090005-0010
Specification: M6x16
Price: 1,00 € : 1,00 €
