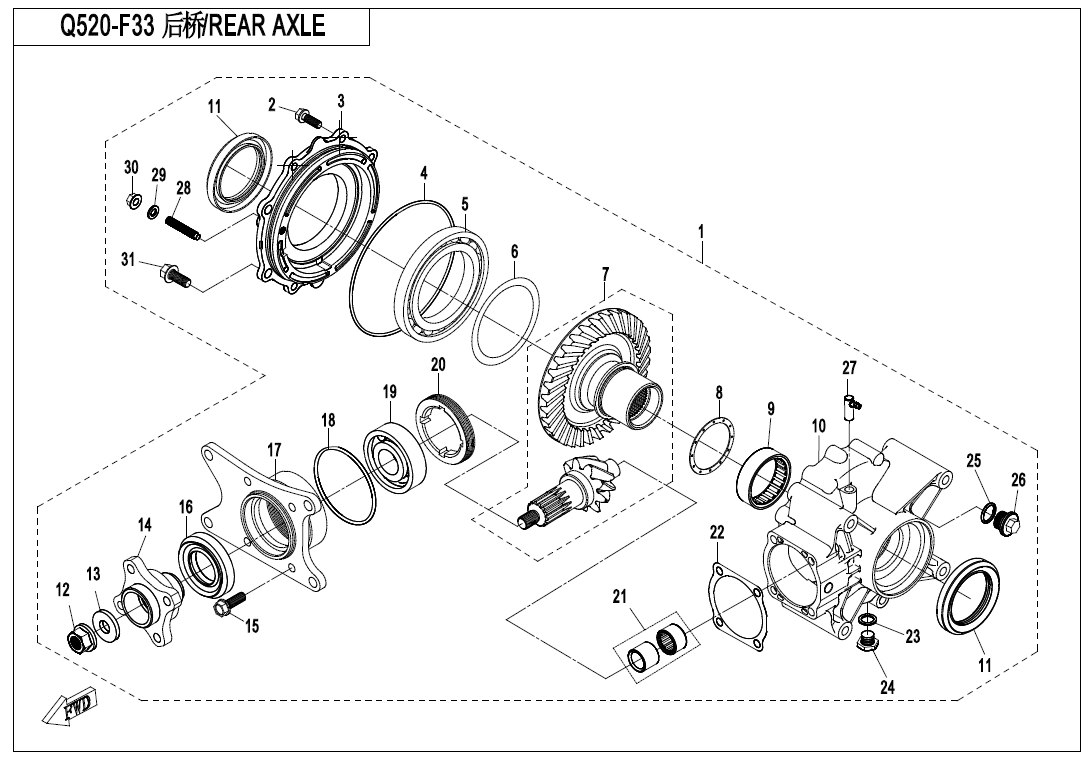

REAR AXLE - F33

REAR AXLE - F33

No.

01
P/N (SKU): Q520-330000
Part Name: REAR GEAR CASE ASSY
Effective: 2021-02-26
Alternative parts: Q520-330000-00001
Price: 445,00 € : 445,00 €
02
P/N (SKU): 30008-080025810
Part Name: BOLT ASSY
Effective: 2021-02-26
Remarks: M8×25
Alternative parts:
Specification: M8x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0180-334001-0080
Part Name: RH COVER, REAR GEAR CASE CASE
Effective: 2021-02-26
Alternative parts:
Price: 18,00 € : 18,00 €
-+
04
P/N (SKU): 0180-334002
Part Name: O-RING
Effective: 2021-02-26
Remarks: 151×3
Alternative parts:
Specification: 151x3
Price: 3,50 € : 3,50 €
-+
05
P/N (SKU): 30499-08500
Part Name: BEARING
Effective: 2021-02-26
Remarks: 16017/C2
Alternative parts:
Specification: 16017
Price: 53,00 € : 53,00 €
-+
06
P/N (SKU): 0180-330002-0001
Part Name: ADJUSTING GASKET 2
Effective: 2021-02-26
Remarks: 0.30mm/AN
Alternative parts:
Specification: 100x86x0.3
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 0180-330002
Part Name: ADJUSTING GASKET 2
Effective: 2021-02-26
Remarks: 0.20mm/AN
Alternative parts:
Specification: 100x86x0.2
Price: 3,00 € : 3,00 €
-+
06
P/N (SKU): 0180-330002-0002
Part Name: ADJUSTING GASKET 2
Effective: 2021-02-26
Remarks: 0.40mm/AN
Alternative parts:
Specification: 100x86x0.4
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): 0180-330010
Part Name: BEVEL GEAR ASSY REAR ALXE
Effective: 2021-02-26
Alternative parts: 0180-330010-00001
Specification: EURO
Price: 230,00 € : 230,00 €
08
P/N (SKU): 0180-330001
Part Name: ADJUSTING GASKET 1
Effective: 2021-02-26
Remarks: 1.00mm/AN
Alternative parts:
Specification: 1
Price: 2,50 € : 2,50 €
-+
08
P/N (SKU): 0180-330001-0003
Part Name: ADJUSTING GASKET 1
Effective: 2021-02-26
Remarks: 1.60mm/AN
Alternative parts:
Specification: 1.6
Price: 2,50 € : 2,50 €
-+
08
P/N (SKU): 0180-330001-0004
Part Name: ADJUSTING GASKET 1
Effective: 2021-02-26
Remarks: 1.80mm/AN
Alternative parts:
Specification: 1.8
Price: 2,50 € : 2,50 €
-+
08
P/N (SKU): 0180-330001-0001
Part Name: ADJUSTING GASKET 1
Effective: 2021-02-26
Remarks: 1.20mm/AN
Alternative parts:
Specification: 1.2
Price: 2,50 € : 2,50 €
-+
08
P/N (SKU): 0180-330001-0002
Part Name: ADJUSTING GASKET 1
Effective: 2021-02-26
Remarks: 1.40mm/AN
Alternative parts:
Specification: 1.4
Price: 2,50 € : 2,50 €
-+
09
P/N (SKU): 30404-05500
Part Name: NEEDLE BEARING
Effective: 2021-02-26
Remarks: 55BTM6720A
Alternative parts:
Specification: 55BTM6720A
Price: 16,00 € : 16,00 €
-+
10
P/N (SKU): Q520-332001
Part Name: REAR GEAR CASE
Effective: 2021-02-26
Alternative parts: Q520-332001-00002
Price: 104,00 € : 104,00 €
10
P/N (SKU): Q520-332001-00001
Part Name: REAR GEAR CASE
Effective: 2021-02-26
Alternative parts: Q520-332001-00002
Price: 80,00 € : 80,00 €
11
P/N (SKU): 0180-334003
Part Name: OIL SEAL
Effective: 2021-02-26
Remarks: SD4 65×90×9 NS
Alternative parts:
Specification: SD465x90x9NS
Price: 16,00 € : 16,00 €
-+
12
P/N (SKU): 0180-331009-0020
Part Name: NUT
Effective: 2021-02-26
Remarks: M12×1.25
Alternative parts:
Specification: M12x1.25
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 0180-331008-0050
Part Name: GASKET
Effective: 2021-02-26
Remarks: 12.5×30×4
Alternative parts:
Specification: 12.5x30x4
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): Q520-331006
Part Name: COUPLER, REAR GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 39,00 € : 39,00 €
-+
15
P/N (SKU): 30008-080035810
Part Name: BOLT M8×35
Effective: 2021-02-26
Remarks: M8×35
Alternative parts:
Specification: M8x35@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0180-331007
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts:
Specification: 35×61×9_14
Price: 8,50 € : 8,50 €
-+
17
P/N (SKU): 0180-331005
Part Name: BEVEL GEAR BEARING HOUSING
Effective: 2021-02-26
Alternative parts:
Price: 27,00 € : 27,00 €
-+
18
P/N (SKU): 0180-331004
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 64.5x3
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 30400-02502
Part Name: BEARING
Effective: 2021-02-26
Remarks: 6305-1BB
Alternative parts:
Specification: CHINA
Price: 11,00 € : 11,00 €
-+
19
P/N (SKU): 30499-02501
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6305C3@NTN
Price: 20,00 € : 20,00 €
-+
20
P/N (SKU): 0180-331003
Part Name: BEARING RETAINER
Effective: 2021-02-26
Alternative parts:
Price: 8,50 € : 8,50 €
-+
21
P/N (SKU): 30403-01700
Part Name: NEEDLE BEARING
Effective: 2021-02-26
Alternative parts:
Specification: NA5903(17x30x18)
Price: 17,00 € : 17,00 €
-+
22
P/N (SKU): 0180-330003
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.40mm/AN
Alternative parts:
Specification: ADJUST GASKET 0.5
Price: 3,00 € : 3,00 €
-+
22
P/N (SKU): 0180-330003-0002
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.60mm/AN
Alternative parts:
Specification: ADJUST GASKET 0.4
Price: 2,00 € : 2,00 €
-+
22
P/N (SKU): 0180-330003-0001
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.50mm/AN
Alternative parts:
Specification: ADJUST GASKET 0.6
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Alternative parts:
Specification: 14
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0180-332100
Part Name: MAGNETIC DRAIN BOLT M14×1.25×12
Effective: 2021-02-26
Alternative parts:
Specification: M14x1.25x12
Price: 5,50 € : 5,50 €
-+
25
P/N (SKU): 0180-332004
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 19x2.5
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 0180-332003-0030
Part Name: BOLT M20x1.5x12
Effective: 2021-02-26
Alternative parts: 0180-332003-0010
Specification: M20x1.5x12
Price: 3,00 € : 3,00 €
27
P/N (SKU): 0180-332006
Part Name: PIPE JOINT
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
28
P/N (SKU): 0180-334005-0030
Part Name: INNER HEX SCREW M8x45
Effective: 2021-02-26
Alternative parts: 0180-334005-0010
Specification: M8x45
Price: 2,00 € : 2,00 €
29
P/N (SKU): 0180-334004
Part Name: GASKET
Effective: 2021-02-26
Alternative parts:
Specification: 8.2x15x1.5
Price: 2,00 € : 2,00 €
-+
30
P/N (SKU): 0180-334006-0030
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts: 0180-334006-0010
Specification: M8
Price: 1,50 € : 1,50 €
31
P/N (SKU): 0180-330004-0030
Part Name: BOLT M10x1.25x25
Effective: 2021-02-26
Remarks: M10×1.25×25
Alternative parts: 0180-330004-0010
Specification: M10x1.25x25
Price: 1,50 € : 1,50 €
