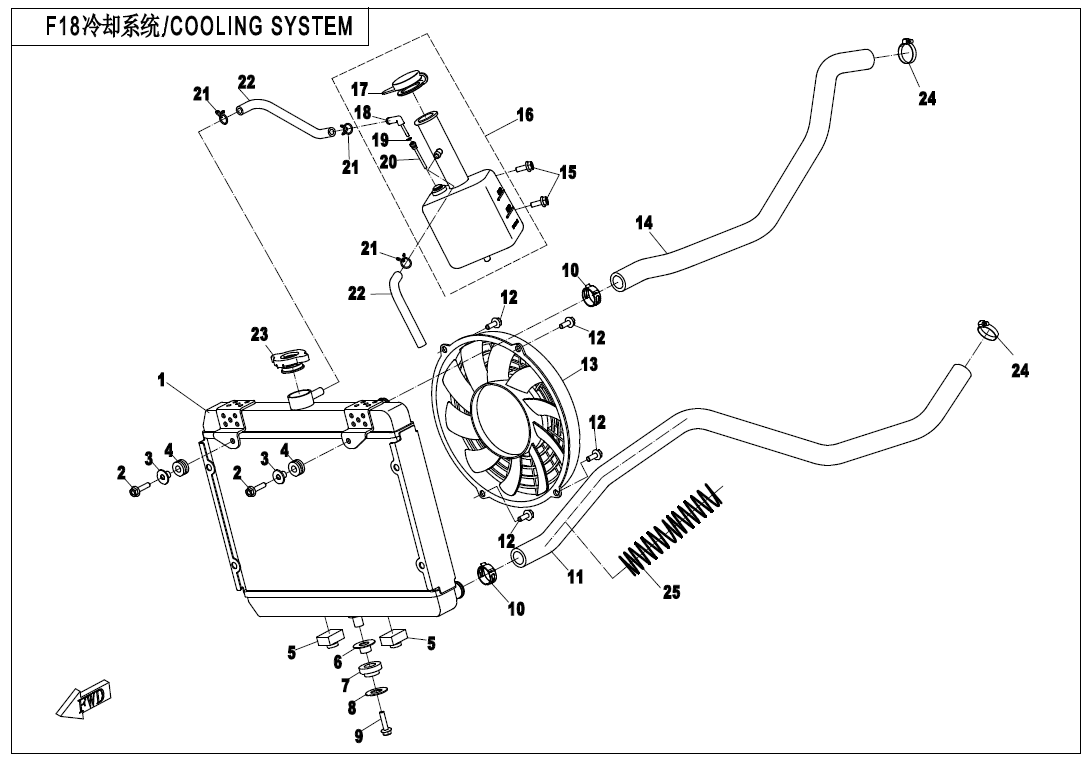

COOLING SYSTEM - F18 | 2015, ATV, CF500ATR | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9010-180100-1000

Part Name: RADIATOR ASSY

Effective: 2021-02-26

Specification: STAINLESS STEEL

Price: 171,00 € : 171,00 €

02

P/N (SKU): 30006-060025840

Part Name: null

Effective: 2021-02-26

Price: 1,50 € : 1,50 €

03

P/N (SKU): 5020-031002

Part Name: RUBBER SLEEVE LINER

Effective: 2021-02-26

Specification: FOR FRONT LICENSE BRACKET

Price: 1,50 € : 1,50 €

04

P/N (SKU): 9010-030047

Part Name: RUBBER CUSHION WASHER

Effective: 2021-02-26

Price: 1,50 € : 1,50 €

05

P/N (SKU): 5190-001003

Part Name: MAIN BRACKET RUBBER DAMPER

Effective: 2021-02-26

Price: 1,50 € : 1,50 €

06

P/N (SKU): 9010-180010

Part Name: STEEL SLEEVE, RADIATIOR

Effective: 2021-02-26

Price: 1,50 € : 1,50 €

07

P/N (SKU): 9010-180004

Part Name: RUBBER SLEEVE, RADIATOR

Effective: 2021-02-26

Price: 6,00 € : 6,00 €

08

P/N (SKU): 30301-060442

Part Name: WASHER

Effective: 2021-02-26

Remarks: Ï10

Alternative parts: 30301-060412

Specification: 6

Price: 1,50 € : 1,50 €

09

P/N (SKU): 30006-060012840

Part Name: BOLT M6x12

Effective: 2021-02-26

Alternative parts: 30006-060012810

Specification: MILITARY GREEN

Price: 1,50 € : 1,50 €

10

P/N (SKU): A000-180006

Part Name: CLAMP B30

Effective: 2021-02-26

Specification: B30

Price: 3,00 € : 3,00 €

11

P/N (SKU): 9CR6-180002

Part Name: RADIATOR WATER OUTLET HOSE

Effective: 2021-02-26

Price: 23,00 € : 23,00 €

12

P/N (SKU): 30006-060016840

Part Name: BOLT M6x16

Effective: 2021-02-26

Alternative parts: 30006-060016810

Specification: MILITARY GREEN

Price: 1,50 € : 1,50 €

13

P/N (SKU): 9010-180200-3000

Part Name: FAN&MOTOR

Effective: 2021-02-26

Price: 109,00 € : 109,00 €

13

P/N (SKU): 9010-180200-40000

Part Name: FAN&MOTOR

Effective: 2021-02-26

Remarks: Sumitomo

Specification: SUMITOMO PLUG

Price: 109,00 € : 109,00 €

14

P/N (SKU): 9CR6-180003

Part Name: RADIATOR WATER INLET HOSE

Effective: 2021-02-26

Alternative parts: 9CR6-180003-10000

Price: 24,00 € : 24,00 €

15

P/N (SKU): 30006-060020840

Part Name: BOLT M6x20

Effective: 2021-02-26

Alternative parts: 30006-060020810

Specification: MILITARY GREEN

Price: 1,50 € : 1,50 €

16

P/N (SKU): 7030-180900

Part Name: RESERVOIR TANK ASSY

Effective: 2021-02-26

Price: 17,00 € : 17,00 €

17

P/N (SKU): 8010-180023

Part Name: RESERVOIR CAP

Effective: 2021-02-26

Price: 3,00 € : 3,00 €

18

P/N (SKU): 8030-180302

Part Name: JOINT

Effective: 2021-02-26

Price: 2,00 € : 2,00 €

19

P/N (SKU): 30601-113010

Part Name: STEEL WIRE ELASTIC RING HOOP

Effective: 2021-02-26

Specification: A13

Price: 1,50 € : 1,50 €

20

P/N (SKU): 8010-180028

Part Name: RESERVOIR CONNECTING HOSE

Effective: 2021-02-26

Price: 2,00 € : 2,00 €

21

P/N (SKU): 30601-112010

Part Name: STEEL WIRE ELASTIC RING HOOP

Effective: 2021-02-26

Specification: A12@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

22

P/N (SKU): 9CR6-180001

Part Name: RESERVOIR WATER PIPE

Effective: 2021-02-26

Price: 2,00 € : 2,00 €

23

P/N (SKU): 9010-180300

Part Name: WATER FILLING PORT CAP

Effective: 2021-02-26

Alternative parts: 8010-180024

Price: 7,50 € : 7,50 €

24

P/N (SKU): 0180-023500

Part Name: CLAMP, WATER HOSE

Effective: 2021-02-26

Alternative parts: 0180-023500-0030

Price: 3,00 € : 3,00 €

25

P/N (SKU): 0180-023005-0050

Part Name: JACKET, WATER HOSE

Effective: 2021-02-26

Price: 4,50 € : 4,50 €

26

P/N (SKU): 6050-180006

Part Name: RUBBER WASHER 16x23x2

Effective: 2021-02-26

Price: 2,00 € : 2,00 €

27

P/N (SKU): 7020-150600

Part Name: THERMO SWITCH

Effective: 2021-02-26

Price: 16,00 € : 16,00 €
