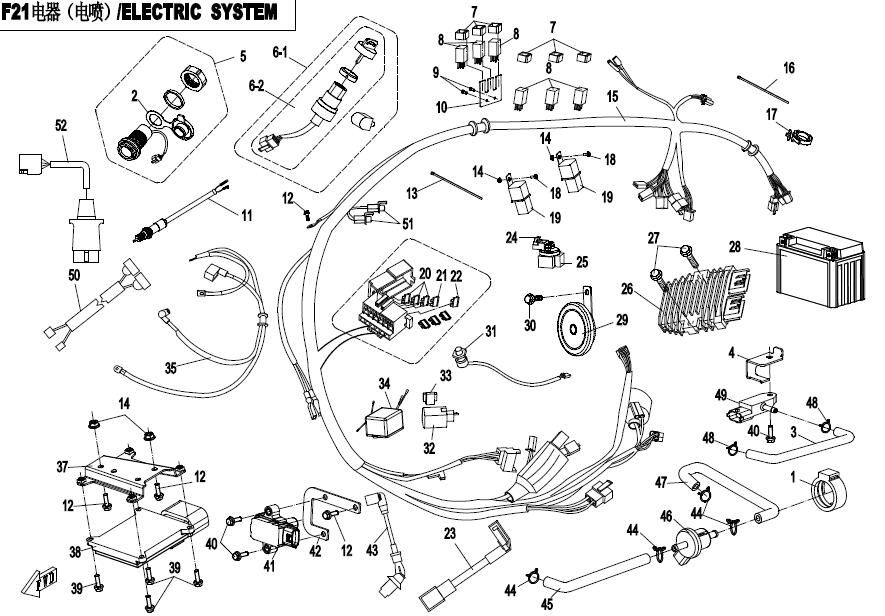

ELECTRIC SYSTEM (CAB.) - F21

ELECTRIC SYSTEM (CAB.) - F21

No.

01
P/N (SKU): 901F-000005
Part Name: IDLE VALVE RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
02
P/N (SKU): 901B-150702
Part Name: ANTI-DUST CAP
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
03
P/N (SKU): 901F-000003
Part Name: PRESSURE PIPE, AIR INLET
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
04
P/N (SKU): 901F-000004
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
05
P/N (SKU): 7020-150500
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
06-1
P/N (SKU): 9010-010000
Part Name: LOCK ASSY
Effective: 2021-02-26
Alternative parts:
Price: 28,00 € : 28,00 €
-+
06-2
P/N (SKU): 9010-010000-1000
Part Name: LOCK ASSY
Effective: 2021-02-26
Alternative parts: 9010-010000
Price: 18,00 € : 18,00 €
07
P/N (SKU): 9010-150002
Part Name: AUXILIARY RELAY RUBBER RING
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
08
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
09
P/N (SKU): 30902-0400820
Part Name: RIVET
Effective: 2021-02-26
Alternative parts: 30902-0401320
Specification: φ4×8
Price: 1,50 € : 1,50 €
10
P/N (SKU): 901F-000007
Part Name: MOUNT PLATE, RELAY
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
11
P/N (SKU): 9010-150500
Part Name: REAR BRAKE SWITCH
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
12
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 1,50 € : 1,50 €
13
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30202-060140
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts: 30202-060110
Specification: M6
Price: 1,50 € : 1,50 €
15
P/N (SKU): 4020-150100-1000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: FOR LCD DASHBOARD
Alternative parts:
Price: 205,00 € : 205,00 €
-+
16
P/N (SKU): 9010-150004
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 9010-150005
Part Name: CABLE CLIP
Effective: 2021-02-26
Alternative parts: 801F-100101
Price: 2,00 € : 2,00 €
18
P/N (SKU): 30112-060016440
Part Name: SCREW ASSY
Effective: 2021-02-26
Alternative parts: 30112-060016410
Specification: M6x16@ARMY GREEN
Price: 2,00 € : 2,00 €
19
P/N (SKU): 8030-151400
Part Name: DIVERTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 9,50 € : 9,50 €
-+
20
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
22
P/N (SKU): 8080-151301
Part Name: FUSE 5A
Effective: 2021-02-26
Alternative parts:
Specification: 5A
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 9010-150311-1000
Part Name: POSITIVE CABLE, STARTER RELAY
Effective: 2021-02-26
Remarks: 30A
Alternative parts:
Price: 16,00 € : 16,00 €
-+
24
P/N (SKU): 9010-150301
Part Name: FUSE
Effective: 2021-02-26
Alternative parts:
Specification: 22A
Price: 2,00 € : 2,00 €
-+
25
P/N (SKU): 9010-150310-1000
Part Name: STARTER RELAY
Effective: 2021-02-26
Remarks: WITHOUT CABLE
Alternative parts: 9010-150310-10001/9CR6-150310
Price: 25,00 € : 25,00 €
25
P/N (SKU): 9010-150310-10001
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 25,00 € : 25,00 €
-+
26
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: 330W
Price: 104,00 € : 104,00 €
-+
27
P/N (SKU): 30006-060030840
Part Name: BOLT M6x30
Effective: 2021-02-26
Alternative parts: 30006-060030810
Specification: M6x30
Price: 1,50 € : 1,50 €
28
P/N (SKU): 31021801
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 18A/GUYUE,is replaced by 31021800
Alternative parts: 31021800
Specification: 12V 18Ah
Price: 101,00 € : 101,00 €
29
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
30
P/N (SKU): 30006-080014840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 6060-150800
Part Name: ADJUSTING BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
32
P/N (SKU): 9010-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
33
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 9010-150720-3000
Part Name: CONTROL UNIT, WINCH
Effective: 2021-02-26
Alternative parts:
Price: 70,00 € : 70,00 €
-+
34
P/N (SKU): 9010-150720-5000
Part Name: CONTROL RELAY
Effective: 2021-02-26
Alternative parts:
Specification: CHANGE PLUG
Price: 75,00 € : 75,00 €
-+
35
P/N (SKU): 9010-150200-1000
Part Name: STARTING TERMINAL CABLE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 24,00 € : 24,00 €
-+
37
P/N (SKU): 901F-000010
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 6,00 € : 6,00 €
-+
38
P/N (SKU): 018B-174000-10000
Part Name: ECU
Effective: 2021-02-26
Remarks: CANADA AND USA
Alternative parts:
Specification: BOSCH MSE3.0
Price: 189,00 € : 189,00 €
-+
38
P/N (SKU): 018B-174000
Part Name: ECU
Effective: 2021-02-26
Alternative parts:
Specification: BOSCH MSE3.0
Price: 189,00 € : 189,00 €
-+
39
P/N (SKU): 30105-050016440
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 30105-050016410
Specification: M5x16@ARMY GREEN
Price: 1,50 € : 1,50 €
40
P/N (SKU): 30006-060025840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
41
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 41,00 € : 41,00 €
-+
42
P/N (SKU): 901F-000020
Part Name: IGNITION COIL BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
43
P/N (SKU): 018B-179000
Part Name: HIGH-TENSION IGNITION CABLE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 26,00 € : 26,00 €
-+
44
P/N (SKU): 30601-113010
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: A13
Price: 1,50 € : 1,50 €
-+
45
P/N (SKU): 901F-000002
Part Name: IDLE VALVE OUTLET PIPE
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
46
P/N (SKU): 018B-172000
Part Name: IDLE AIR CONTROL VALVE
Effective: 2021-02-26
Alternative parts: 6KJB-1550A0
Price: 80,00 € : 80,00 €
47
P/N (SKU): 901F-000001
Part Name: IDLE VALVE INLET PIPE
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
48
P/N (SKU): 30601-111010
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: A11@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
49
P/N (SKU): 018B-175000
Part Name: AIR INTAKE PRESSURE SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 82,00 € : 82,00 €
-+
50
P/N (SKU): 402A-150201
Part Name: DASHBOARD ADAPTOR HARNESS
Effective: 2021-02-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
51
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
52
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
