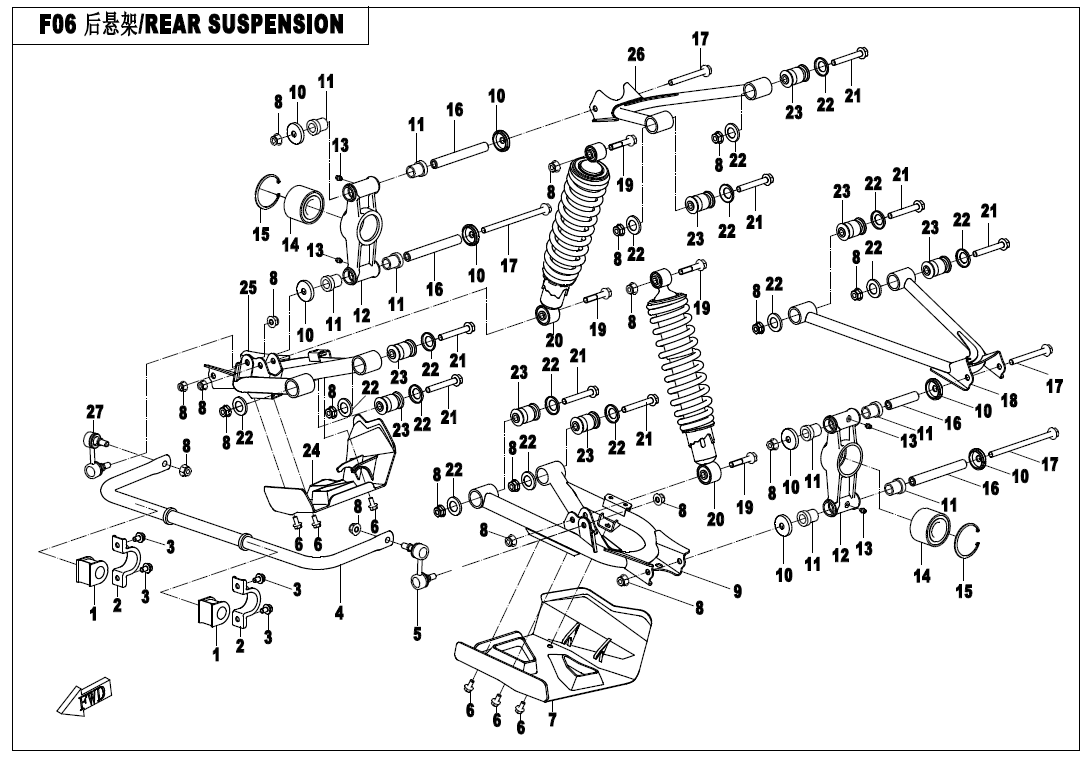

REAR SUSPENSION - F06

REAR SUSPENSION - F06

No.

01
P/N (SKU): 9010-060003
Part Name: RUBBER SUPPORT SEAT
Effective: 2021-02-26
Alternative parts: 9GQ0-060003
Price: 5,60 € : 5,60 €
02
P/N (SKU): 9GQ0-060601
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts: 9GQ0-060601-00001
Price: 1,50 € : 1,50 €
02
P/N (SKU): 9GQ0-060601-00001
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30006-080012840
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-080012810
Specification: M8x12
Price: 0,55 € : 0,55 €
04
P/N (SKU): 9GQ0-060610
Part Name: REAR SWAY BAR ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-060610-10000
Price: 40,70 € : 40,70 €
-+
05
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
06
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 9GQ0-044043
Part Name: PANEL, LH REAR SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 7,35 € : 7,35 €
-+
08
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 0,95 € : 0,95 €
09
P/N (SKU): 9GQ0-060210
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-060210-00002
Price: 37,00 € : 37,00 €
09
P/N (SKU): 9GQ0-060210-00001
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-060210-00002
Price: 37,00 € : 37,00 €
10
P/N (SKU): 9010-060900
Part Name: ANTI-DUST CAP
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
11
P/N (SKU): 9010-060004
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 4,60 € : 4,60 €
-+
12
P/N (SKU): 9010-060001
Part Name: REAR BEARING CARRIER
Effective: 2021-02-26
Alternative parts: 9010-0600A0
Price: 55,60 € : 55,60 €
13
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
14
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 31,30 € : 31,30 €
15
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE 55
Effective: 2021-02-26
Alternative parts:
Specification: 55
Price: 2,05 € : 2,05 €
-+
16
P/N (SKU): 9010-060005
Part Name: MIDDLE SPACER
Effective: 2021-02-26
Alternative parts:
Price: 5,60 € : 5,60 €
-+
17
P/N (SKU): 30006-102100810
Part Name: BOLT M10x1.25x100
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x100
Price: 1,25 € : 1,25 €
-+
18
P/N (SKU): 9GQ0-060110
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 56,00 € : 56,00 €
-+
19
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×55
Price: 0,95 € : 0,95 €
-+
20
P/N (SKU): 9GQ0-060500
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts:
Price: 99,70 € : 99,70 €
-+
21
P/N (SKU): 30006-102070840
Part Name: BOLT M10x1.25x70
Effective: 2021-02-26
Alternative parts: 30006-102070810
Specification: M10x1.25x70
Price: 1,80 € : 1,80 €
22
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-02-26
Alternative parts: 9DSV-050900-6K00
Price: 1,65 € : 1,65 €
-+
23
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
24
P/N (SKU): 9GQ0-044044
Part Name: PANEL, RH REAR SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 7,35 € : 7,35 €
-+
25
P/N (SKU): 9GQ0-060410
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-060410-00002
Price: 37,00 € : 37,00 €
25
P/N (SKU): 9GQ0-060410-00001
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-060410-00002
Price: 37,00 € : 37,00 €
26
P/N (SKU): 9GQ0-060310
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Price: 56,00 € : 56,00 €
-+
27
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
