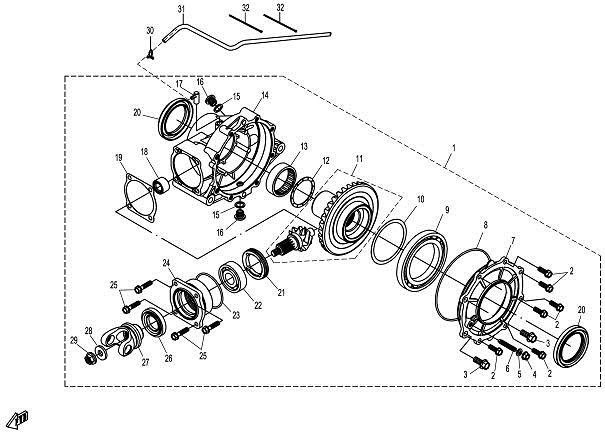

REAR AXLE - F30

REAR AXLE - F30

No.

02
P/N (SKU): 30008-080025810
Part Name: BOLT ASSY
Effective: 2021-02-26
Alternative parts:
Specification: M8x25@COLOR ZINC-PLATED
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 0180-330004-0030
Part Name: BOLT M10x1.25x25
Effective: 2021-02-26
Alternative parts: 0180-330004-0010
Specification: M10x1.25x25
Price: 0,95 € : 0,95 €
04
P/N (SKU): 0180-334006-0030
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts: 0180-334006-0010
Specification: M8
Price: 0,55 € : 0,55 €
05
P/N (SKU): 0180-334004
Part Name: GASKET 8.2x15x1.5
Effective: 2021-02-26
Alternative parts:
Specification: 8.2x15x1.5
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 0180-334005-0010
Part Name: INNER HEX BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x45@GALVANIZED TRIVALENT CHROMIUM
Price: 0,95 € : 0,95 €
-+
07
P/N (SKU): 0180-334001-0080
Part Name: RH COVER, REAR GEAR CASE CASE
Effective: 2021-02-26
Alternative parts:
Price: 17,30 € : 17,30 €
-+
08
P/N (SKU): 0180-334002
Part Name: O-RING
Effective: 2021-02-26
Remarks: 151×3
Alternative parts:
Specification: 151x3
Price: 3,05 € : 3,05 €
-+
09
P/N (SKU): 30499-08500
Part Name: BEARING
Effective: 2021-02-26
Remarks: 16017/C2
Alternative parts:
Specification: 16017
Price: 51,40 € : 51,40 €
-+
10
P/N (SKU): 0180-330002-0002
Part Name: ADJUST GASKET 2
Effective: 2021-02-26
Remarks: 0.40mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 100x86x0.4
Price: 2,05 € : 2,05 €
-+
10
P/N (SKU): 0180-330002
Part Name: ADJUST GASKET 2
Effective: 2021-02-26
Remarks: 0.20mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 100x86x0.2
Price: 1,25 € : 1,25 €
-+
10
P/N (SKU): 0180-330002-0001
Part Name: ADJUST GASKET 2
Effective: 2021-02-26
Remarks: 0.30mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 100x86x0.3
Price: 2,05 € : 2,05 €
-+
11
P/N (SKU): Q510-330010
Part Name: BEVEL GEAR ASSY REAR ALXE
Effective: 2021-02-26
Alternative parts: Q510-330010-00001
Price: 159,30 € : 159,30 €
12
P/N (SKU): 0180-330001-0004
Part Name: ADJUST GASKET 1
Effective: 2021-02-26
Remarks: 1.80mm/AN
Alternative parts:
Specification: ADJUSTING WASHER(1)1.8
Price: 2,05 € : 2,05 €
-+
12
P/N (SKU): 0180-330001-0002
Part Name: ADJUST GASKET 1
Effective: 2021-02-26
Remarks: 1.40mm/AN
Alternative parts:
Specification: ADJUSTING WASHER(1)1.4
Price: 2,05 € : 2,05 €
-+
12
P/N (SKU): 0180-330001-0001
Part Name: ADJUST GASKET 1
Effective: 2021-02-26
Remarks: 1.20mm/AN
Alternative parts:
Specification: ADJUSTING WASHER(1)1.2
Price: 2,05 € : 2,05 €
-+
12
P/N (SKU): 0180-330001-0003
Part Name: ADJUST GASKET 1
Effective: 2021-02-26
Remarks: 1.60mm/AN
Alternative parts:
Specification: ADJUSTING WASHER(1)1.6
Price: 2,05 € : 2,05 €
-+
12
P/N (SKU): 0180-330001
Part Name: ADJUST GASKET 1
Effective: 2021-02-26
Remarks: 1.00mm/AN
Alternative parts:
Specification: ADJUSTING WASHER(1)1.0
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 30404-05500
Part Name: NEEDLE BEARING
Effective: 2021-02-26
Remarks: 55BTM6720A
Alternative parts:
Specification: 55BTM6720A
Price: 14,80 € : 14,80 €
-+
14
P/N (SKU): Q510-332001
Part Name: REAR GEAR CASE
Effective: 2021-02-26
Alternative parts: Q530-332001
Price: 145,40 € : 145,40 €
-+
15
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Alternative parts:
Specification: 14
Price: 1,05 € : 1,05 €
-+
16
P/N (SKU): 0180-332100
Part Name: MAGNETIC DRAIN BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M14x1.25x12
Price: 5,00 € : 5,00 €
-+
16
P/N (SKU): 0180-021008-0010
Part Name: BOLT M14x1.25x12
Effective: 2021-02-26
Alternative parts: 0180-021008-00001
Specification: M14x1.25x12
Price: 4,05 € : 4,05 €
17
P/N (SKU): 0180-332006
Part Name: PIPE JOINT
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
18
P/N (SKU): 30403-01700
Part Name: NEEDLE BEARING
Effective: 2021-02-26
Alternative parts:
Specification: NA5903(17x30x18)
Price: 16,20 € : 16,20 €
-+
19
P/N (SKU): 0180-330003-0002
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.60mm/AN
Alternative parts:
Specification: ADJUST GASKET 0.4
Price: 2,05 € : 2,05 €
-+
19
P/N (SKU): 0180-330003-0001
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.50mm/AN
Alternative parts:
Specification: ADJUST GASKET 0.6
Price: 2,05 € : 2,05 €
-+
19
P/N (SKU): 0180-330003
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.40mm/AN
Alternative parts:
Specification: ADJUST GASKET 0.5
Price: 1,25 € : 1,25 €
-+
20
P/N (SKU): 0180-334003
Part Name: OIL SEAL SD465x90x9NS
Effective: 2021-02-26
Remarks: SD4 65×90×9 NS
Alternative parts:
Specification: SD465x90x9NS
Price: 15,00 € : 15,00 €
-+
21
P/N (SKU): Q510-331003
Part Name: BEARING RETAINER
Effective: 2021-02-26
Alternative parts:
Price: 6,25 € : 6,25 €
-+
22
P/N (SKU): 30400-02502
Part Name: BEARING
Effective: 2021-02-26
Remarks: 6305-1BB
Alternative parts:
Specification: CHINA
Price: 7,00 € : 7,00 €
-+
23
P/N (SKU): 0180-331004
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 64.5x3
Price: 0,95 € : 0,95 €
-+
24
P/N (SKU): Q510-331001
Part Name: BEVEL GEAR BEARING HOUSING
Effective: 2021-02-26
Alternative parts:
Price: 20,90 € : 20,90 €
-+
25
P/N (SKU): 30008-080035810
Part Name: BOLT ASSY
Effective: 2021-02-26
Remarks: M8×35
Alternative parts:
Specification: M8x35@COLOR ZINC-PLATED
Price: 0,55 € : 0,55 €
-+
26
P/N (SKU): 0180-331007
Part Name: OIL SEAL 35x61x9(14)
Effective: 2021-02-26
Alternative parts:
Specification: 35x61x9(14)
Price: 8,15 € : 8,15 €
-+
27
P/N (SKU): 9060-300104
Part Name: FLANGE, REAR GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 29,50 € : 29,50 €
-+
28
P/N (SKU): 0180-331008-0050
Part Name: GASKET 12.5x30x4
Effective: 2021-02-26
Remarks: 12.5×30×4
Alternative parts:
Specification: 12.5x30x4
Price: 0,95 € : 0,95 €
-+
29
P/N (SKU): 0180-331009-0020
Part Name: NUT M12x1.25
Effective: 2021-02-26
Remarks: M12×1.25
Alternative parts:
Specification: M12x1.25
Price: 0,95 € : 0,95 €
-+
31
P/N (SKU): 9010-310001
Part Name: BREATHER HOSE, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 4,80 € : 4,80 €
-+
32
P/N (SKU): 8010-150003
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
