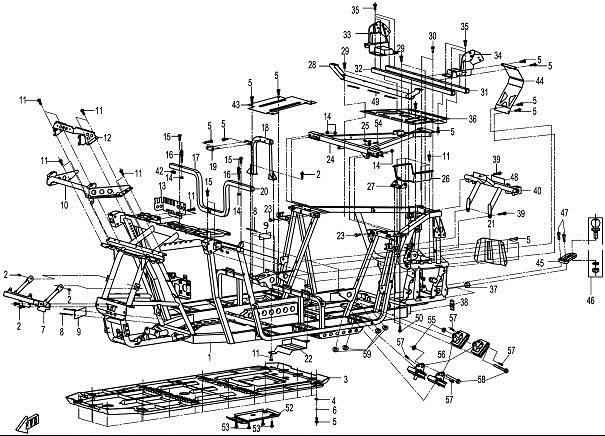

FRAME ASSY - F09

FRAME ASSY - F09

No.

01
P/N (SKU): 4060-030100-30000
Part Name: null
Effective: 2021-02-26
Price: 981,00 € : 981,00 €
-+
01
P/N (SKU): 4060-030100
Part Name: null
Effective: 2021-02-26
Price: 981,00 € : 981,00 €
-+
01
P/N (SKU): 4060-030100-40000
Part Name: null
Effective: 2021-02-26
Price: 981,00 € : 981,00 €
-+
02
P/N (SKU): 30006-080016840
Part Name: BOLT M8x16
Effective: 2021-02-26
Alternative parts: 30006-080016810
Specification: MILITARY GREEN
Price: 2,00 € : 2,00 €
-+
03
P/N (SKU): 9060-040024-10000
Part Name: SKID PLATE
Effective: 2021-02-26
Price: 130,00 € : 130,00 €
-+
04
P/N (SKU): 9060-040028
Part Name: SKID PLATE GASKET
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 30006-060016840
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts: 30006-060016810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
06
P/N (SKU): 30303-060112
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2021-02-26
Specification: φ6
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 9060-037300
Part Name: null
Effective: 2021-02-26
Price: 32,00 € : 32,00 €
-+
08
P/N (SKU): 30902-0400820
Part Name: MUSHROOM HEAD BREAK MANDREL BLIND RIVETS
Effective: 2021-02-26
Alternative parts: 30902-0401320
Specification: φ4×8
Price: 1,50 € : 1,50 €
09
P/N (SKU): 9060-190010
Part Name: VIN PLATE
Effective: 2021-02-26
Remarks: EURO
Specification: EURO
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9060-037250-1000
Part Name: MOUNTING BRACKET, FRONT TOP COVER
Effective: 2021-02-26
Price: 31,00 € : 31,00 €
-+
11
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
12
P/N (SKU): 9060-037110
Part Name: UPPER BRACKET, RESERVOIR TANK
Effective: 2021-02-26
Alternative parts: 9060-037110-10000
Price: 18,00 € : 18,00 €
13
P/N (SKU): 9060-038010
Part Name: MOUNT PLATE, RELAY
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
14
P/N (SKU): 30204-080840
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts: 30204-080810
Specification: M8
Price: 1,50 € : 1,50 €
15
P/N (SKU): 30006-080040810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M8×40
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 9060-037663
Part Name: LIMIT LEVER, SEAT
Effective: 2021-02-26
Alternative parts: 9060-037663-00001
Price: 7,50 € : 7,50 €
17
P/N (SKU): 9060-038030-1000
Part Name: RH SEAT SUPPORT
Effective: 2021-02-26
Price: 18,00 € : 18,00 €
-+
18
P/N (SKU): 9060-037570-1000
Part Name: MANUAL BRAKE BRACKET
Effective: 2021-02-26
Price: 29,00 € : 29,00 €
-+
19
P/N (SKU): 9060-038310-1000
Part Name: REINFORCEMENT BRACKET, HAND BRAKE
Effective: 2021-02-26
Price: 12,00 € : 12,00 €
-+
20
P/N (SKU): 9060-038020
Part Name: LH SEAT SUPPORT
Effective: 2021-02-26
Price: 18,00 € : 18,00 €
-+
21
P/N (SKU): 9060-030491
Part Name: PANEL R, FUEL TANK
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
22
P/N (SKU): 9060-030488
Part Name: PANEL 2, FUEL TANK
Effective: 2021-02-26
Price: 8,50 € : 8,50 €
-+
22
P/N (SKU): 9060-030488-10000
Part Name: PANEL 2, FUEL TANK
Effective: 2021-02-26
Price: 9,50 € : 9,50 €
-+
23
P/N (SKU): 30006-080048840
Part Name: null
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
24
P/N (SKU): 9060-037710-3000
Part Name: X-GIRDER ASSEMBLY
Effective: 2021-02-26
Remarks: WITH AIR FILTER MOUNTING POINT
Price: 60,00 € : 60,00 €
-+
25
P/N (SKU): 9060-038203
Part Name: IDLE VALVE PLATE
Effective: 2021-02-26
Price: 2,50 € : 2,50 €
-+
26
P/N (SKU): 9060-031670
Part Name: HEAT INSULATION PLATE, REAR GEAR CASE
Effective: 2021-02-26
Price: 32,00 € : 32,00 €
-+
27
P/N (SKU): 9060-038130-1000
Part Name: FRONT CONNECTION BRACKET, REAR GEAR CASE
Effective: 2021-02-26
Price: 13,00 € : 13,00 €
-+
28
P/N (SKU): 9060-037760
Part Name: CARGO BOX FRONT SUPPORT BEAM ASSY
Effective: 2021-02-26
Price: 31,00 € : 31,00 €
-+
29
P/N (SKU): 30006-080035840
Part Name: BOLT M8×35
Effective: 2021-02-26
Alternative parts: 30006-080035810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
31
P/N (SKU): 9060-037850
Part Name: CARGO BOX SUPPORT BEAM ASSY 2
Effective: 2021-02-26
Price: 36,00 € : 36,00 €
-+
32
P/N (SKU): 9060-037810
Part Name: CARGO BOX SUPPORT BEAM ASSY 1
Effective: 2021-02-26
Price: 40,00 € : 40,00 €
-+
33
P/N (SKU): 9060-038202
Part Name: BUMPER RH CONNECTING PLATE
Effective: 2021-02-26
Price: 62,00 € : 62,00 €
-+
34
P/N (SKU): 9060-038201
Part Name: BUMPER LH CONNECTING PLATE
Effective: 2021-02-26
Price: 62,00 € : 62,00 €
-+
35
P/N (SKU): 30006-102030840
Part Name: null
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
36
P/N (SKU): 9060-038120
Part Name: HEAT INSULATOR PLATE ASSY
Effective: 2021-02-26
Price: 49,00 € : 49,00 €
-+
37
P/N (SKU): 9060-038123
Part Name: FRAME PLUG
Effective: 2021-02-26
Price: 3,00 € : 3,00 €
-+
38
P/N (SKU): 9060-038122
Part Name: PLUG
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
39
P/N (SKU): 30006-102020840
Part Name: BOLT M10x1.25x20
Effective: 2021-02-26
Alternative parts: 30006-102020810
Specification: MILITARY GREEN
Price: 2,00 € : 2,00 €
40
P/N (SKU): 9060-037910
Part Name: REAR BUMPER BRACKET ASSY
Effective: 2021-02-26
Specification: ELECTROPHORESIS BLACK+MAT
Price: 31,00 € : 31,00 €
-+
41
P/N (SKU): 30202-060130
Part Name: HEXAGON NUTS FLANGE
Effective: 2021-02-26
Alternative parts: 30202-060110
Specification: GB6177_M6
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 5190-001003
Part Name: MAIN BRACKET RUBBER DAMPER
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 9060-038125
Part Name: HEAT INSULATOR, FUEL TANK
Effective: 2021-02-26
Price: 16,00 € : 16,00 €
-+
44
P/N (SKU): 9060-038124
Part Name: REAR HEAT INSULATION PLATE
Effective: 2021-02-26
Price: 26,00 € : 26,00 €
-+
45
P/N (SKU): 4020-030002
Part Name: TOWING BRACKET
Effective: 2021-02-26
Price: 34,00 € : 34,00 €
-+
46
P/N (SKU): 9010-205000-1000
Part Name: TOWING HITCH BALL ASSY
Effective: 2021-02-26
Alternative parts: 9010-205000-20000
Specification: 50mm
Price: 20,00 € : 20,00 €
47
P/N (SKU): 30102-102040840
Part Name: null
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
48
P/N (SKU): 9060-038128
Part Name: HEAT INSULATOR SPONGE STRIP 2
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
49
P/N (SKU): 9060-038129
Part Name: HEAT INSULATOR SPONGE STRIP 1
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
50
P/N (SKU): 30006-080014840
Part Name: null
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
51
P/N (SKU): 9060-038023
Part Name: REAR SUPPORT PLATE, SEAT
Effective: 2021-02-26
Price: 7,00 € : 7,00 €
-+
52
P/N (SKU): 9060-390001
Part Name: LOWER PANEL, ENGINE
Effective: 2021-02-26
Price: 41,00 € : 41,00 €
-+
54
P/N (SKU): 30006-060025840
Part Name: null
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
55
P/N (SKU): 30204-122810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-02-26
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
56
P/N (SKU): 401B-000200
Part Name: DAMPER
Effective: 2021-02-26
Alternative parts: 401B-000200-10000
Price: 13,00 € : 13,00 €
57
P/N (SKU): 30102-060012840
Part Name: INNER HEX SCREW
Effective: 2021-02-26
Alternative parts: 30102-060012810
Specification: M6x12@ARMY GREEN
Price: 1,50 € : 1,50 €
58
P/N (SKU): 30006-122145840
Part Name: BOLT M12x1.25x145
Effective: 2021-02-26
Alternative parts: 30006-122145810
Specification: MILITARY GREEN
Price: 4,00 € : 4,00 €
59
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 1,50 € : 1,50 €
