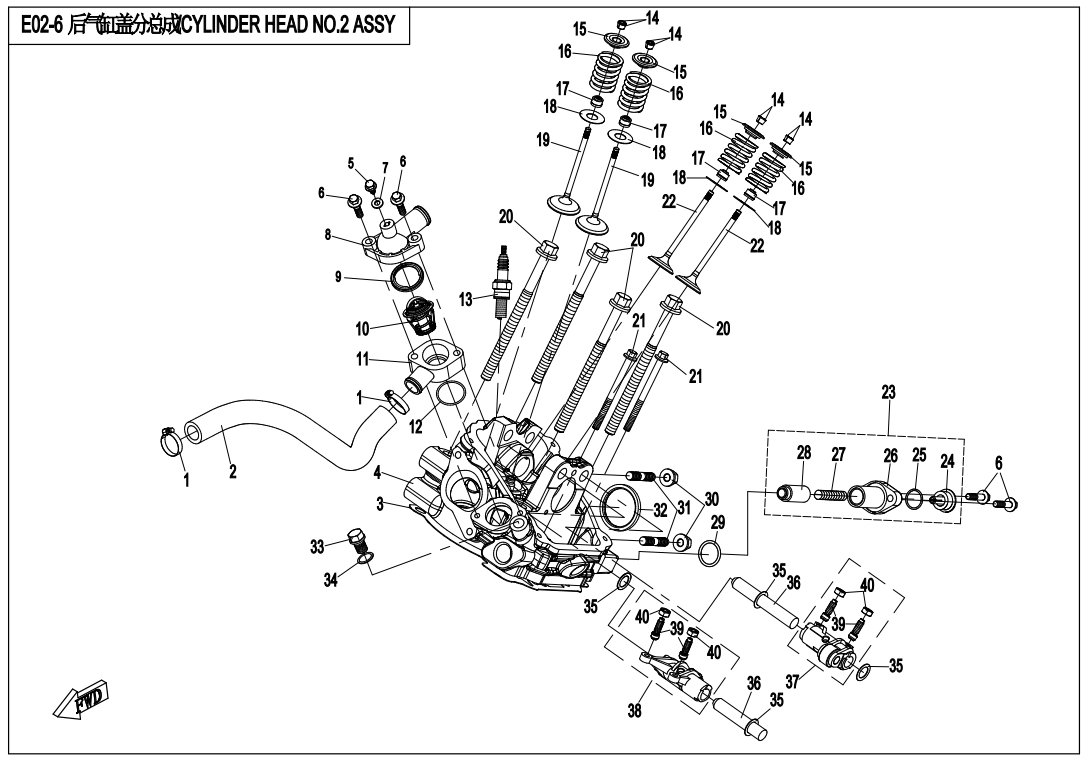

CYLINDER HEAD NO.2 ASSY. - E02-6

CYLINDER HEAD NO.2 ASSY. - E02-6

No.

01
P/N (SKU): 0800-022200
Part Name: CYLINDER HEAD GASKET
Effective: 2021-02-26
Alternative parts: 0800-022200-00002
Price: 17,80 € : 17,80 €
02
P/N (SKU): 0800-026100
Part Name: REAR CYLINDER HEAD ASSY
Effective: 2021-02-26
Alternative parts: 0800-022500-20000+0800-022600-20000+0800-026100-10001
Price: 133,90 € : 133,90 €
03
P/N (SKU): 30132-480130030
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8x13@CHROME-PLATED
Price: 1,70 € : 1,70 €
-+
04
P/N (SKU): 0180-013208-0030
Part Name: BOLT M6x45
Effective: 2021-02-26
Remarks: is replaced by 0180-013208-0010
Alternative parts: 0180-013208-0010
Specification: M6x45
Price: 1,00 € : 1,00 €
05
P/N (SKU): 0800-022011
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 0800-022011-00001
Specification: 5.3x11x1.5
Price: 1,00 € : 1,00 €
-+
06
P/N (SKU): 0800-022013
Part Name: THERMOSTAT CAP
Effective: 2021-02-26
Alternative parts: 0800-022013-10000
Price: 4,90 € : 4,90 €
07
P/N (SKU): 0010-022802
Part Name: SEAL RING
Effective: 2021-02-26
Alternative parts:
Price: 2,10 € : 2,10 €
-+
08
P/N (SKU): 0800-022700
Part Name: THERMOSTAT
Effective: 2021-02-26
Alternative parts:
Price: 13,35 € : 13,35 €
-+
09
P/N (SKU): 0800-022012
Part Name: THERMOSTAT SEAT
Effective: 2021-02-26
Alternative parts:
Price: 4,20 € : 4,20 €
-+
10
P/N (SKU): 30502-028000N
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 28x2.65
Price: 1,00 € : 1,00 €
-+
11
P/N (SKU): 0800-022800
Part Name: SPARK PLUG
Effective: 2021-02-26
Alternative parts:
Price: 14,50 € : 14,50 €
-+
12
P/N (SKU): 0800-022016
Part Name: LOCK CLIP, VALVE
Effective: 2021-02-26
Alternative parts:
Price: 2,30 € : 2,30 €
-+
13
P/N (SKU): 0800-022007
Part Name: UPPER SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 2,30 € : 2,30 €
-+
14
P/N (SKU): 0800-022006
Part Name: SPRING, VALVE
Effective: 2021-02-26
Alternative parts: 0800-022006-10000/0800-022006-10001
Price: 2,40 € : 2,40 €
15
P/N (SKU): 0010-022500
Part Name: VALVE STEM SEAL RING ASSY
Effective: 2021-02-26
Alternative parts: 0010-022500-10000
Price: 1,00 € : 1,00 €
16
P/N (SKU): 0800-022008
Part Name: LOWER SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
17
P/N (SKU): 0800-022004
Part Name: VALVE, INTAKE
Effective: 2021-02-26
Alternative parts:
Price: 12,20 € : 12,20 €
-+
18
P/N (SKU): 0800-022003
Part Name: CYLINDER BOLT
Effective: 2021-02-26
Alternative parts: 0800-022003-00001
Price: 2,70 € : 2,70 €
19
P/N (SKU): 0800-022009-00001
Part Name: BOLT M6x80
Effective: 2021-02-26
Alternative parts:
Specification: M6x80
Price: 1,00 € : 1,00 €
-+
20
P/N (SKU): 0800-022005
Part Name: EXHAUST VALVE
Effective: 2021-02-26
Alternative parts:
Price: 13,15 € : 13,15 €
-+
21
P/N (SKU): 0010-021017-0030
Part Name: BOLT M6x25
Effective: 2021-02-26
Remarks: is replaced by 0010-021017-0010
Alternative parts: 0010-021017-0010
Specification: M6x25
Price: 1,00 € : 1,00 €
22
P/N (SKU): 0800-022400
Part Name: TENSIONER
Effective: 2021-02-26
Alternative parts: 0800-022400-10000
Price: 16,30 € : 16,30 €
23
P/N (SKU): 0800-022402
Part Name: SCREW PLUG, TENSIONER
Effective: 2021-02-26
Alternative parts:
Price: 3,30 € : 3,30 €
-+
24
P/N (SKU): 0800-022407
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 17x1.45
Price: 1,60 € : 1,60 €
-+
25
P/N (SKU): 0800-022401
Part Name: HOUSING, CHAIN TENSIONER
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
26
P/N (SKU): 0800-022405
Part Name: SPRING, CHAIN TENSIONER
Effective: 2021-02-26
Alternative parts: 080V-022405-1200
Price: 2,40 € : 2,40 €
27
P/N (SKU): 0800-022410
Part Name: PLUNGER, CHAIN TENSIONER
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
28
P/N (SKU): 0800-022017
Part Name: TENSIONER SEAL RING
Effective: 2021-02-26
Alternative parts:
Specification: 20.8x2.4
Price: 1,60 € : 1,60 €
-+
29
P/N (SKU): 0010-011700-0010
Part Name: FLANGE NUT M8
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,00 € : 1,00 €
-+
30
P/N (SKU): 0180-022003-0010
Part Name: STUD M8x42
Effective: 2021-02-26
Alternative parts: 0180-022003-00001
Specification: M8x42
Price: 1,00 € : 1,00 €
31
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 4,20 € : 4,20 €
-+
32
P/N (SKU): 0800-022015-00001
Part Name: SCREW PLUG M12x1.5
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
33
P/N (SKU): 0800-022014
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 12.2x18x1.5
Price: 1,00 € : 1,00 €
-+
34
P/N (SKU): 0800-022002
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 12.3x18.5x0.5
Price: 1,00 € : 1,00 €
-+
35
P/N (SKU): 0800-022001
Part Name: ROCKER ARM SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 4,20 € : 4,20 €
-+
36
P/N (SKU): 0800-022600-1000
Part Name: SWING ARM, EXHAUST
Effective: 2021-02-26
Alternative parts:
Price: 26,92 € : 26,92 €
-+
37
P/N (SKU): 0800-022500-1000
Part Name: SWING ARM, INTAKE
Effective: 2021-02-26
Alternative parts:
Price: 26,92 € : 26,92 €
-+
38
P/N (SKU): 0800-022510
Part Name: ADJUST SCREW, VALVE CLEARANCE
Effective: 2021-02-26
Alternative parts:
Price: 2,80 € : 2,80 €
-+
39
P/N (SKU): 0800-022506
Part Name: ADJUST NUT, VALVE CLEARANCE
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
