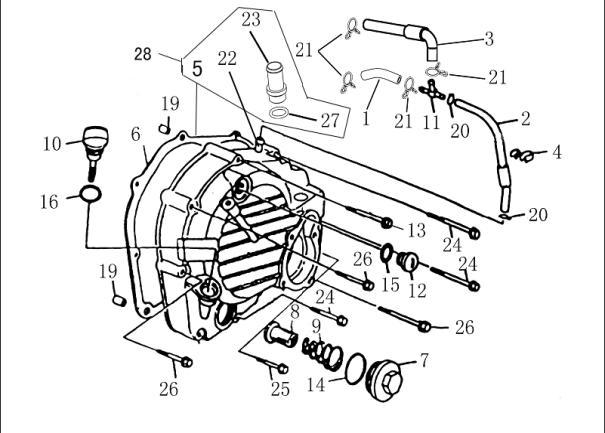

RIGHT SIDE COVER - E01-3

RIGHT SIDE COVER - E01-3

No.

01
P/N (SKU): 0120-013013
Part Name: HOSE, CYLINDER HEAD COVER
Effective: 2021-02-26
Price: 0,91 € : 0,91 €
-+
02
P/N (SKU): 0110-013100
Part Name: HOSE ASSY., RH SIDE COVER
Effective: 2021-02-26
Price: 3,50 € : 3,50 €
-+
03
P/N (SKU): 0110-0130C0
Part Name: HOSE A&SLEEVE, AIR FILTER
Effective: 2021-02-26
Price: 3,60 € : 3,60 €
-+
04
P/N (SKU): 0110-013016
Part Name: HOSE CLIP
Effective: 2021-02-26
Price: 0,91 € : 0,91 €
-+
05
P/N (SKU): 0110-013002-1080
Part Name: RH SIDE COVER
Effective: 2021-02-26
Remarks: WITH "A" MARK
Price: 53,61 € : 53,61 €
-+
06
P/N (SKU): 0110-013012-1B00
Part Name: GASKET, RH SIDE COVER
Effective: 2021-02-26
Remarks: BLACK,NO ASBESTOS
Specification: BLACK
Price: 4,20 € : 4,20 €
-+
07
P/N (SKU): 0110-013007-0080
Part Name: COVER, STRAINER
Effective: 2021-02-26
Price: 3,60 € : 3,60 €
-+
08
P/N (SKU): 0010-013100
Part Name: FILTER ELEMENT
Effective: 2021-02-26
Price: 1,80 € : 1,80 €
-+
09
P/N (SKU): 0110-013006-0050
Part Name: SPRING
Effective: 2021-02-26
Price: 0,91 € : 0,91 €
-+
10
P/N (SKU): 0110-013001
Part Name: DIPSTICK, ENGINE OIL
Effective: 2021-02-26
Price: 3,50 € : 3,50 €
-+
11
P/N (SKU): 0110-013019
Part Name: T-JOINT, EXHAUST GAS
Effective: 2021-02-26
Price: 3,00 € : 3,00 €
-+
12
P/N (SKU): 0010-021008-0030
Part Name: PLUG, INSPECTION HOLE
Effective: 2021-02-26
Price: 3,00 € : 3,00 €
-+
13
P/N (SKU): 0110-013031-0030
Part Name: BOLT M6x80
Effective: 2021-02-26
Remarks: is replaced by 0110-013031-0010
Alternative parts: 0110-013031-0010
Specification: M6x80
Price: 1,50 € : 1,50 €
14
P/N (SKU): 0110-013028
Part Name: O-RING
Effective: 2021-02-26
Specification: 30x3.55
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0010-021009
Part Name: INSPECTION HOLE SEAL RING
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0110-013030
Part Name: O-RING
Effective: 2021-02-26
Specification: 18x3.55
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2021-02-26
Specification: 8X14
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 30601-110030
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2021-02-26
Alternative parts: 30601-110010
Specification: A10
Price: 1,50 € : 1,50 €
21
P/N (SKU): 30601-112030
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2021-02-26
Remarks: is replaced by 30601-112010
Alternative parts: 30601-112010
Price: 0,91 € : 0,91 €
22
P/N (SKU): 0110-013010-0010
Part Name: JOINT, BREATHER HOSE
Effective: 2021-02-26
Price: 2,80 € : 2,80 €
-+
23
P/N (SKU): 0110-013009-0010
Part Name: JOINT, WATER OUTLET PIPE
Effective: 2021-02-26
Price: 6,00 € : 6,00 €
-+
24
P/N (SKU): 0010-013009-0030
Part Name: BOLT M6x40
Effective: 2021-02-26
Remarks: is replaced by 0010-013009-0010
Alternative parts: 0010-013009-0010
Specification: M6x40
Price: 1,50 € : 1,50 €
25
P/N (SKU): 0010-070003-0020
Part Name: BOLT M6x28
Effective: 2021-02-26
Alternative parts: 0010-070003-00001
Specification: M6x28
Price: 1,50 € : 1,50 €
26
P/N (SKU): 0020-011018-0030
Part Name: BOLT M6x70
Effective: 2021-02-26
Remarks: is replaced by 0020-011018-0010
Alternative parts: 0020-011018-0010
Specification: M6x70
Price: 1,50 € : 1,50 €
27
P/N (SKU): 0010-011008
Part Name: O-SEAL RING
Effective: 2021-02-26
Specification: 15.8x2.4
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 0110-0130A0
Part Name: RH SIDE COVER ASSY.
Effective: 2021-02-26
Remarks: INCLUDING 5,22,23 and 27
Price: 62,81 € : 62,81 €
-+
28
P/N (SKU): 0110-0130A0-1000
Part Name: RH SIDE COVER ASSY.
Effective: 2021-02-26
Remarks: WITH "A" MARK
Price: 82,00 € : 82,00 €
-+
