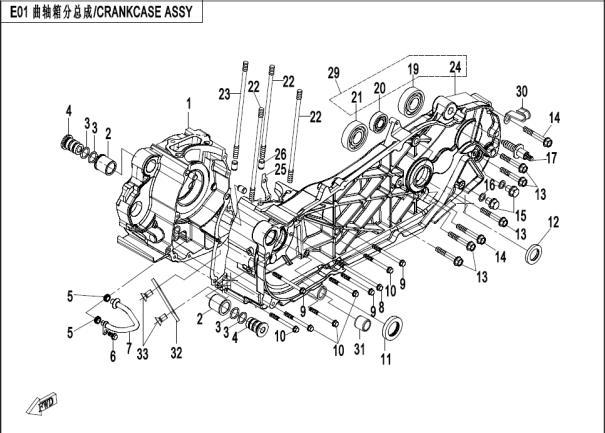

CRANKCASE ASSY - E01-1

CRANKCASE ASSY - E01-1

No.

01
P/N (SKU): 0120-011200-0080
Part Name: null
Effective: 2021-02-26
Price: Not currently available : Not currently available
-+
01
P/N (SKU): 0120-011200-10811
Part Name: RH CRANKCASE ASSY
Effective: 2021-02-26
Price: 66,60 € : 66,60 €
-+
02
P/N (SKU): 0010-011010-0050
Part Name: OUTER BUSHING, ENGINE HANGER
Effective: 2021-02-26
Price: 3,50 € : 3,50 €
-+
03
P/N (SKU): 0010-011008
Part Name: O-SEAL RING
Effective: 2021-02-26
Specification: 15.8x2.4
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0010-011009-0050
Part Name: INNER BUSHING, ENGINE HANGER
Effective: 2021-02-26
Price: 3,50 € : 3,50 €
-+
05
P/N (SKU): 0110-011002
Part Name: SEAL RING, INNER OIL PIPE
Effective: 2021-02-26
Price: 0,91 € : 0,91 €
-+
06
P/N (SKU): 0010-021019-0030
Part Name: BOLT M6x12
Effective: 2021-02-26
Specification: M6x12
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0110-011400-0010
Part Name: INNER OIL PIPE SET
Effective: 2021-02-26
Price: 8,80 € : 8,80 €
-+
08
P/N (SKU): 0030-011006-0030
Part Name: BOLT M6x105
Effective: 2021-02-26
Specification: M6x105
Price: 1,80 € : 1,80 €
-+
09
P/N (SKU): 0020-011018-0030
Part Name: BOLT M6x70
Effective: 2021-02-26
Alternative parts: 0020-011018-0010
Specification: M6x70
Price: 1,50 € : 1,50 €
10
P/N (SKU): 0010-011017-0030
Part Name: BOLT M6x60
Effective: 2021-02-26
Alternative parts: 0010-011017-0010
Specification: M6x60
Price: 1,50 € : 1,50 €
11
P/N (SKU): 0110-011001-000F
Part Name: OIL SEAL 28x40x8
Effective: 2021-02-26
Specification: 28x40x8
Price: 4,80 € : 4,80 €
-+
12
P/N (SKU): 30501-022000F
Part Name: OIL SEAL
Effective: 2021-02-26
Specification: FB22x35x5
Price: 4,20 € : 4,20 €
-+
13
P/N (SKU): 0040-012006-0030
Part Name: BOLT M8x50
Effective: 2021-02-26
Alternative parts: 0040-012006-0010
Specification: M8X50
Price: 2,00 € : 2,00 €
14
P/N (SKU): 0030-011007-0030
Part Name: BOLT M8x55
Effective: 2021-02-26
Specification: M8x55
Price: 1,80 € : 1,80 €
-+
15
P/N (SKU): 0010-060011-0030
Part Name: DRAIN BOLT, M10x1.25
Effective: 2021-02-26
Alternative parts: 0010-060011-0010
Specification: M10x1.25
Price: 2,00 € : 2,00 €
16
P/N (SKU): 0010-060010
Part Name: WASHER 10
Effective: 2021-02-26
Specification: 10
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0120-011006-0050
Part Name: REAR SUSPENSION SHAFT
Effective: 2021-02-26
Price: 7,70 € : 7,70 €
-+
19
P/N (SKU): 30499-02000
Part Name: ROLLING BEARING
Effective: 2021-02-26
Specification: 6304
Price: 15,00 € : 15,00 €
-+
20
P/N (SKU): 30499-01500
Part Name: ROLLING BEARING
Effective: 2021-02-26
Specification: 6202
Price: 8,00 € : 8,00 €
-+
21
P/N (SKU): 30499-02200
Part Name: BEARING
Effective: 2021-02-26
Price: 22,00 € : 22,00 €
-+
22
P/N (SKU): 0110-011004-0010
Part Name: BOLT A, CYLINDER STUD
Effective: 2021-02-26
Alternative parts: 0110-011004-00001
Price: 2,70 € : 2,70 €
23
P/N (SKU): 0110-011005-0010
Part Name: BOLT B, CYLINDER STUD
Effective: 2021-02-26
Alternative parts: 0110-011005-00001
Price: 2,70 € : 2,70 €
24
P/N (SKU): 0120-011100-10811
Part Name: LH CRANKCASE ASSY
Effective: 2021-02-26
Price: 154,00 € : 154,00 €
-+
25
P/N (SKU): 0110-011003-0B00
Part Name: GASKET, CRANKCASE
Effective: 2021-02-26
Alternative parts: 0110-011003-0E00
Specification: BLACK
Price: 2,70 € : 2,70 €
25
P/N (SKU): 0110-011003-0E00
Part Name: GASKET, CRANKCASE
Effective: 2021-02-26
Specification: SAPPHIRE BLUE
Price: 2,80 € : 2,80 €
-+
26
P/N (SKU): 0010-021005
Part Name: DOWEL PIN
Effective: 2021-02-26
Specification: 10x14
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 0120-0111A0-1000
Part Name: LH CRANKCASE ASSY
Effective: 2021-02-26
Price: 125,25 € : 125,25 €
-+
30
P/N (SKU): 0031-011001-0010
Part Name: BRACKET, AIR BYPASS VALVE
Effective: 2021-02-26
Price: 1,80 € : 1,80 €
-+
31
P/N (SKU): 0120-011008
Part Name: SHAFT SLEEVE
Effective: 2021-02-26
Price: 4,20 € : 4,20 €
-+
32
P/N (SKU): 0120-011009
Part Name: CONNECTING PLATE
Effective: 2021-02-26
Price: 1,80 € : 1,80 €
-+
33
P/N (SKU): 30107-060010410
Part Name: CROSS-RECESSED COUNTERSUNK HEAD SCREWS
Effective: 2021-02-26
Specification: M6x10
Price: 1,50 € : 1,50 €
-+
