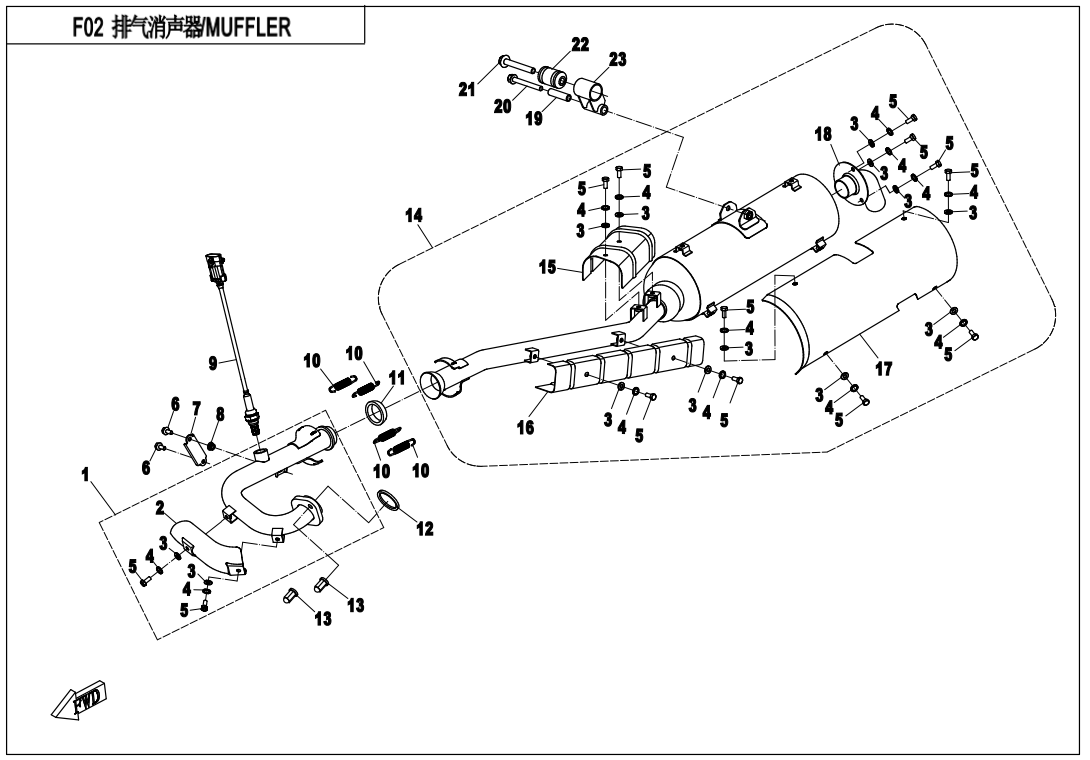

MUFFLER - F02

MUFFLER - F02

No.

01
P/N (SKU): 9CR6-021100
Part Name: EXHAUST PIPE ASSY
Effective: 2021-02-26
Price: 30,00 € : 30,00 €
-+
02
P/N (SKU): 7020-021101
Part Name: HEAT INSULATOR, FRONT CYLINDER
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
03
P/N (SKU): 30303-060900
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2021-02-26
Alternative parts: 30303-060112
Specification: 6
Price: 1,50 € : 1,50 €
04
P/N (SKU): 30306-060800
Part Name: PLAIN WASHERS
Effective: 2021-02-26
Specification: φ6
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 30000-060010700
Part Name: HEXAGON HEAD BOLTS WITH FULL THREAD
Effective: 2021-02-26
Alternative parts: 30000-060012820
Specification: M6x10
Price: 1,50 € : 1,50 €
06
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 9CR6-020001-00001
Part Name: FRONT SUPPORT, MUFFLER
Effective: 2021-02-26
Price: 3,00 € : 3,00 €
-+
07
P/N (SKU): 9CR6-020001
Part Name: FRONT SUPPORT, MUFFLER
Effective: 2021-02-26
Remarks: is replaced by 9CR6-020001-00001
Alternative parts: 9CR6-020001-00001
Price: 16,00 € : 16,00 €
08
P/N (SKU): 30204-060810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-02-26
Specification: M6
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 018B-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Price: 112,00 € : 112,00 €
-+
10
P/N (SKU): 9010-020185
Part Name: DRAG SPRING, MUFFLER
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9010-020102-10001
Part Name: SEAL SLEEVE, GRAPHITE
Effective: 2021-02-26
Price: 5,50 € : 5,50 €
-+
12
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2021-02-26
Price: 4,50 € : 4,50 €
-+
13
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2021-02-26
Specification: M8
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9CR6-021200
Part Name: MUFFLER ASSY
Effective: 2021-02-26
Alternative parts: 9CR6-021200-00002
Price: 440,00 € : 440,00 €
15
P/N (SKU): 9CR6-021202
Part Name: HEAD INSULATION, CATALYTIC CONVERTER
Effective: 2021-02-26
Price: 42,00 € : 42,00 €
-+
16
P/N (SKU): 9CR6-021201
Part Name: HEAT INSULATOR
Effective: 2021-02-26
Price: 7,00 € : 7,00 €
-+
17
P/N (SKU): 9CR6-021203
Part Name: HEAT INSULATOR, MUFFLER BODY
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
18
P/N (SKU): 7020-021320-10000
Part Name: SPARK ARRESTOR
Effective: 2021-02-26
Price: 22,00 € : 22,00 €
-+
19
P/N (SKU): 7020-020001
Part Name: MUFFLER LINER
Effective: 2021-02-26
Price: 2,50 € : 2,50 €
-+
20
P/N (SKU): 30006-080065810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M8x65
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30006-102070810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M10×1.25×70
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 7020-022000
Part Name: MOUNT ASSY, MUFFLER
Effective: 2021-02-26
Remarks: is replaced by 7020-022000-00001
Alternative parts: 7020-022000-00001
Price: 4,50 € : 4,50 €
23
P/N (SKU): 7020-022000-00001
Part Name: MOUNT ASSY, MUFFLER
Effective: 2021-02-26
Alternative parts: 9CR6-020003+9CR6-020020
Price: 9,50 € : 9,50 €
