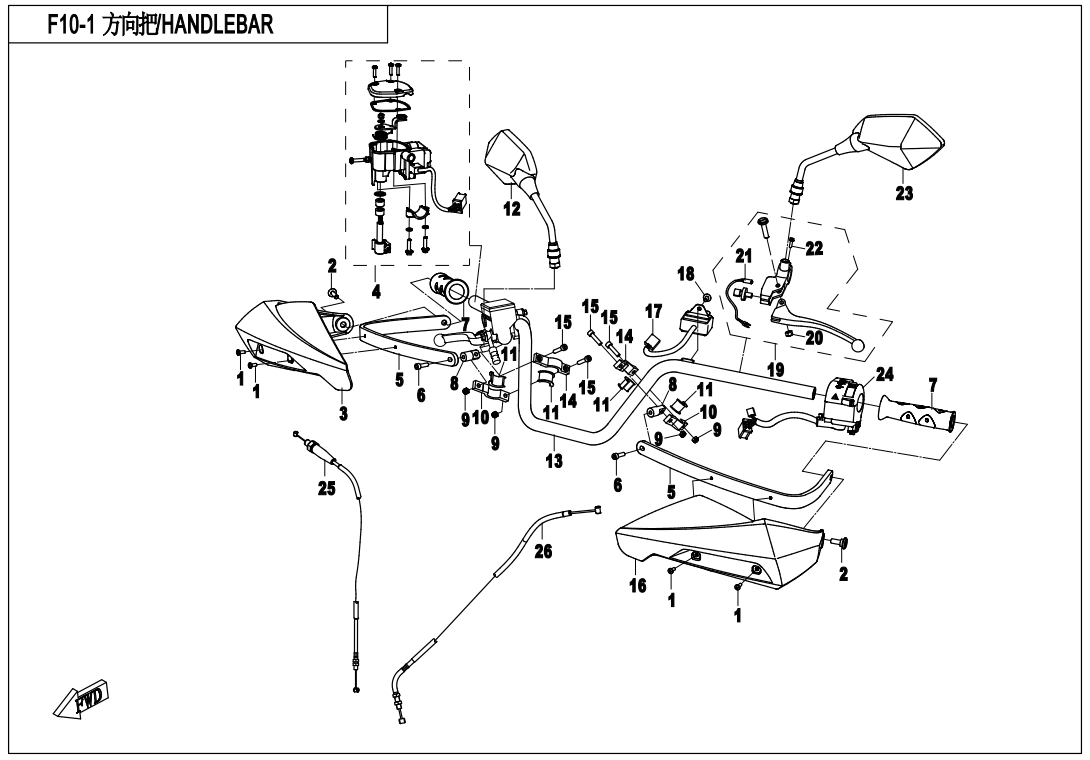

HANDLEBAR - F10-1

HANDLEBAR - F10-1

No.

01
P/N (SKU): A000-040202
Part Name: INNER HEX SCREW M5x14
Effective: 2021-02-26
Alternative parts:
Specification: M5x14
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 9CR6-101221
Part Name: RH HAND GUARD COVER
Effective: 2021-02-26
Remarks: NOT PROVIDED INDIVIDUALLY,is replaced by 9CR6-101220
Alternative parts: 9CR6-101221-10000
Price: 11,00 € : 11,00 €
04
P/N (SKU): 7020-160700
Part Name: RH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 7020-160700-00002
Specification: ORDINARY PLUG
Price: 49,00 € : 49,00 €
05
P/N (SKU): 9CR6-101212
Part Name: HANDGUARD LEVER
Effective: 2021-02-26
Remarks: NOT PROVIDED INDIVIDUALLY
Alternative parts: 9CR6-101210-10000
Price: 16,00 € : 16,00 €
06
P/N (SKU): 30102-060020700
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 30102-060020810
Specification: M6x20
Price: 2,50 € : 2,50 €
07
P/N (SKU): 8060-100001
Part Name: LH HAND GRIP
Effective: 2021-02-26
Alternative parts: 9DQV-100005-3000
Price: 7,50 € : 7,50 €
-+
08
P/N (SKU): 9CR6-101203
Part Name: CONNECTOR, BRACKET
Effective: 2021-02-26
Remarks: NOT PROVIDED INDIVIDUALLY
Alternative parts: 9CR6-101203-10000
Price: 2,50 € : 2,50 €
09
P/N (SKU): 30224-060800
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30224-060810
Price: 3,50 € : 3,50 €
10
P/N (SKU): 9CR6-101204
Part Name: PRESS COVER, BRACKET
Effective: 2021-02-26
Remarks: NOT PROVIDED INDIVIDUALLY
Alternative parts: 9CR6-101204-10000
Price: 4,50 € : 4,50 €
11
P/N (SKU): 9CR6-101213
Part Name: PLASTIC BUSHING
Effective: 2021-02-26
Remarks: NOT PROVIDED INDIVIDUALLY
Alternative parts:
Price: 2,50 € : 2,50 €
-+
12
P/N (SKU): 7020-200300
Part Name: REAR VIEW MIRROR, RH
Effective: 2021-02-26
Alternative parts: 9AY0-200300
Price: 17,00 € : 17,00 €
13
P/N (SKU): 9CR6-101100
Part Name: HANDLEBAR ASSY
Effective: 2021-02-26
Alternative parts: 9CR6-101100-10000
Price: 56,00 € : 56,00 €
14
P/N (SKU): 9CR6-101202
Part Name: SEAT, BRACKET
Effective: 2021-02-26
Remarks: NOT PROVIDED INDIVIDUALLY
Alternative parts: 9CR6-101202-10000
Price: 12,00 € : 12,00 €
15
P/N (SKU): 30102-060025840
Part Name: INNER HEX SCREW
Effective: 2021-02-26
Alternative parts: 30102-060025810
Specification: M6x25
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9CR6-101211
Part Name: HAND GUARD, LH
Effective: 2021-02-26
Remarks: NOT PROVIDED INDIVIDUALLY,is replaced by 9CR6-101210
Alternative parts: 9AWA-1012A0+9AWA-1013A0
Price: 11,00 € : 11,00 €
18
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
19
P/N (SKU): 9CR6-080200-00001
Part Name: REAR BRAKE PARKING LEVER ASSY
Effective: 2021-02-26
Alternative parts: 9CR6-080200-10000
Price: 15,00 € : 15,00 €
20
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 9CR6-080220
Part Name: BRAKE SWITCH
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
22
P/N (SKU): 9CR6-080203
Part Name: BOLT M6x22
Effective: 2021-02-26
Alternative parts:
Specification: M6x22
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 7020-200200
Part Name: LH REARVIEW MIRROR ASSY
Effective: 2021-02-26
Alternative parts: 9AY0-200200
Price: 17,00 € : 17,00 €
24
P/N (SKU): 905B-160600-2000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 905B-160600-20001
Specification: HEDALIGHT NOT ALWAYS ON
Price: 40,00 € : 40,00 €
25
P/N (SKU): 9CR6-105000
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
26
P/N (SKU): 9CR6-080300
Part Name: REAR BRAKE PARKING CABLE
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
27
P/N (SKU): 9CR6-101210
Part Name: HAND GUARD ASSY, LH
Effective: 2021-02-26
Alternative parts: 9AWA-1012A0+9AWA-1013A0
Price: 61,00 € : 61,00 €
-+
28
P/N (SKU): 9CR6-101220
Part Name: RH HAND GUARD ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-1012A0+9AWA-1013A0
Price: 37,00 € : 37,00 €
