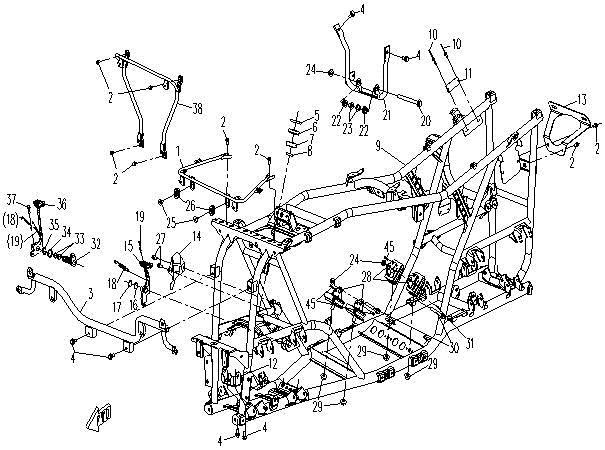

FRAME - F22

FRAME - F22

No.

01
P/N (SKU): 9010-030040
Part Name: UPPER BRACKET, RADIATOR
Effective: 2021-02-26
Price: 16,00 € : 16,00 €
-+
02
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
03
P/N (SKU): 9010-030050
Part Name: null
Effective: 2021-02-26
Remarks: is replaced by 9010-030050-1000
Price: 30,00 € : 30,00 €
-+
04
P/N (SKU): 30006-080014840
Part Name: null
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 30500-025801N
Part Name: OIL SEAL
Effective: 2021-02-26
Specification: FB25x44x7
Price: 3,00 € : 3,00 €
-+
06
P/N (SKU): 9010-030003
Part Name: BEARING RETAINER
Effective: 2021-02-26
Price: 3,50 € : 3,50 €
-+
07
P/N (SKU): 30400-01780
Part Name: BEARING
Effective: 2021-02-26
Specification: 6203-2RZ
Price: 4,00 € : 4,00 €
-+
08
P/N (SKU): 30500-025800N
Part Name: OIL SEAL
Effective: 2021-02-26
Specification: FB25x36x8
Price: 2,00 € : 2,00 €
-+
09
P/N (SKU): 9010-030100-2000
Part Name: null
Effective: 2021-02-26
Price: 546,00 € : 546,00 €
-+
10
P/N (SKU): 30902-0400820
Part Name: MUSHROOM HEAD BREAK MANDREL BLIND RIVETS
Effective: 2021-02-26
Alternative parts: 30902-0401320
Specification: φ4×8
Price: 1,50 € : 1,50 €
11
P/N (SKU): 9010-190014
Part Name: VIN PLATE
Effective: 2021-02-26
Remarks: EURO
Specification: EURO
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 9010-037400
Part Name: BRACKET, FRONT GEAR CASE
Effective: 2021-02-26
Price: 9,50 € : 9,50 €
-+
13
P/N (SKU): 9010-030012
Part Name: null
Effective: 2021-02-26
Price: 13,00 € : 13,00 €
-+
14
P/N (SKU): 9010-030009
Part Name: PANEL, FRONT BRAKE MASTER CYLINDER
Effective: 2021-02-26
Price: 6,00 € : 6,00 €
-+
15
P/N (SKU): 9010-080210
Part Name: BRAKE PEDAL
Effective: 2021-02-26
Price: 14,00 € : 14,00 €
-+
16
P/N (SKU): 30304-140440
Part Name: null
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 30801-01405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Specification: 14
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 9010-080201
Part Name: RETURN SPRING, BRAKE PEDAL
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 9010-080203-1000
Part Name: SPRING, BRAKE SWITCH
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 30006-122130840
Part Name: BOLT M12x1.25x130
Effective: 2021-02-26
Alternative parts: 30006-122130810
Specification: MILITARY GREEN
Price: 3,50 € : 3,50 €
21
P/N (SKU): 9010-037200-3000
Part Name: REAR BRACKET ASSY
Effective: 2021-02-26
Price: 23,00 € : 23,00 €
-+
22
P/N (SKU): 9010-037205
Part Name: CUSHION, REAR BRACKET
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 9010-037210
Part Name: BUSHING, REAR SUSPENSION
Effective: 2021-02-26
Price: 3,50 € : 3,50 €
-+
24
P/N (SKU): 30204-122810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-02-26
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 8010-120006
Part Name: T-WASHER
Effective: 2021-02-26
Remarks: is replaced by 5020-031002
Alternative parts: 5020-031002
Price: 1,50 € : 1,50 €
26
P/N (SKU): 9010-030047
Part Name: RUBBER CUSHION WASHER
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30006-060010840
Part Name: BOLT M6x10
Effective: 2021-02-26
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 9010-000200
Part Name: DAMPER
Effective: 2021-02-26
Alternative parts: 401B-000200-10000
Price: 8,50 € : 8,50 €
29
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 1,50 € : 1,50 €
30
P/N (SKU): 30006-122145840
Part Name: BOLT M12x1.25x145
Effective: 2021-02-26
Alternative parts: 30006-122145810
Specification: MILITARY GREEN
Price: 4,00 € : 4,00 €
31
P/N (SKU): 30102-060012840
Part Name: INNER HEX SCREW
Effective: 2021-02-26
Alternative parts: 30102-060012810
Specification: M6x12@ARMY GREEN
Price: 1,50 € : 1,50 €
