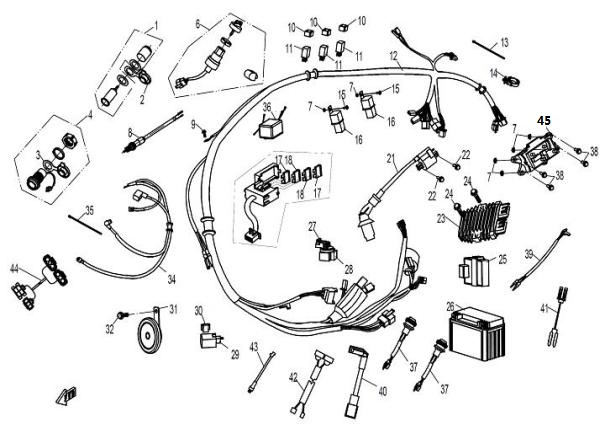

ELECTRIC SYSTEM - F19

ELECTRIC SYSTEM - F19

No.

01
P/N (SKU): 9010-150700
Part Name: CIGARETTE LIGHTER SEAT ASSY
Effective: 2021-02-26
Price: 21,00 € : 21,00 €
-+
02
P/N (SKU): 9010-150001
Part Name: CIGARETTE LIGHTER DUST CAP
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 9010-010000
Part Name: LOCK ASSY
Effective: 2021-02-26
Price: 28,00 € : 28,00 €
-+
07
P/N (SKU): 30202-060130
Part Name: HEXAGON NUTS FLANGE
Effective: 2021-02-26
Alternative parts: 30202-060110
Specification: GB6177_M6
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 9010-150500
Part Name: REAR BRAKE SWITCH
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
09
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
10
P/N (SKU): 9010-150002
Part Name: AUXILIARY RELAY RUBBER RING
Effective: 2021-02-26
Price: 4,50 € : 4,50 €
-+
11
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Price: 7,00 € : 7,00 €
-+
12
P/N (SKU): 9050-150100-6000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: WATERPROOF
Price: 145,00 € : 145,00 €
-+
12
P/N (SKU): 9050-150100-5000
Part Name: MAIN CABLE
Effective: 2021-02-26
Price: 145,00 € : 145,00 €
-+
13
P/N (SKU): 9010-150004
Part Name: TIE BAND
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9010-150005
Part Name: CABLE CLIP
Effective: 2021-02-26
Alternative parts: 801F-100101
Price: 2,00 € : 2,00 €
15
P/N (SKU): 30112-060016440
Part Name: SCREW ASSY
Effective: 2021-02-26
Alternative parts: 30112-060016410
Specification: M6x16@ARMY GREEN
Price: 2,00 € : 2,00 €
16
P/N (SKU): 8030-151400
Part Name: DIVERTER RELAY
Effective: 2021-02-26
Price: 9,50 € : 9,50 €
-+
17
P/N (SKU): 9010-150601
Part Name: FUSE 10A
Effective: 2021-02-26
Specification: 10A
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 9010-150602
Part Name: FUSE
Effective: 2021-02-26
Specification: 15A
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 0180-152000
Part Name: IGNITION COIL
Effective: 2021-02-26
Price: 17,00 € : 17,00 €
-+
22
P/N (SKU): 30006-060020840
Part Name: BOLT M6x20
Effective: 2021-02-26
Alternative parts: 30006-060020810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
23
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Specification: 330W
Price: 104,00 € : 104,00 €
-+
24
P/N (SKU): 30006-060025840
Part Name: null
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 0180-153000
Part Name: IGNITER
Effective: 2021-02-26
Remarks: EURO
Price: 73,00 € : 73,00 €
-+
25
P/N (SKU): 0180-153000-1000
Part Name: IGNITER
Effective: 2021-02-26
Remarks: CANADA
Price: 45,00 € : 45,00 €
-+
26
P/N (SKU): 31021800
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 18A/DYNAVOLT,is replaced by 31021801
Specification: 12V 18A DYNAVOLT
Price: 131,00 € : 131,00 €
-+
26
P/N (SKU): 31021801
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 18A/GUYUE,is replaced by 31021800
Alternative parts: 31021800
Specification: 12V 18Ah
Price: 101,00 € : 101,00 €
27
P/N (SKU): 9010-150301
Part Name: FUSE
Effective: 2021-02-26
Specification: 22A
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): 9010-150311
Part Name: POSITIVE CABLE, STARTER RELAY
Effective: 2021-02-26
Remarks: 18A；is replaced by 9010-150311-1000(1)+9010-150310-1000
Alternative parts: 9010-150311-1000
Price: 8,00 € : 8,00 €
28
P/N (SKU): 9010-150310-1000
Part Name: STARTER RELAY
Effective: 2021-02-26
Remarks: WITHOUT CABLE
Alternative parts: 9010-150310-10001/9CR6-150310
Price: 25,00 € : 25,00 €
28
P/N (SKU): 9010-150310
Part Name: STARTER RELAY
Effective: 2021-02-26
Remarks: WITH CABLE (6mm)；is replaced by 9010-150310-1000+9010-150311-1000
Alternative parts: 9010-150310-10001+9010-150311-1000
Price: 25,00 € : 25,00 €
29
P/N (SKU): 9010-150340
Part Name: FLASHER
Effective: 2021-02-26
Price: 14,00 € : 14,00 €
-+
30
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts: EG4V-150600-1000
Price: 11,00 € : 11,00 €
-+
32
P/N (SKU): 30006-080014840
Part Name: null
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 8010-160003
Part Name: PARKING SWITCH
Effective: 2021-02-26
Price: 5,00 € : 5,00 €
-+
35
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
36
P/N (SKU): 9010-150720-5000
Part Name: CONTROL RELAY
Effective: 2021-02-26
Specification: CHANGE PLUG
Price: 75,00 € : 75,00 €
-+
37
P/N (SKU): 8030-150300
Part Name: ADJUSTING BUTTON, CLOCK
Effective: 2021-02-26
Specification: WITH WIRE
Price: 5,00 € : 5,00 €
-+
38
P/N (SKU): 30006-060030840
Part Name: BOLT M6x30
Effective: 2021-02-26
Alternative parts: 30006-060030810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
39
P/N (SKU): 9010-150900
Part Name: LINK CABLE, BRAKE
Effective: 2021-02-26
Remarks: 2X4(2WD)
Specification: 2x4(2WD)
Price: 4,00 € : 4,00 €
-+
40
P/N (SKU): 9010-150311-1000
Part Name: POSITIVE CABLE, STARTER RELAY
Effective: 2021-02-26
Remarks: 30A
Price: 16,00 € : 16,00 €
-+
41
P/N (SKU): 9010-150101
Part Name: REAR RH TURN LIGHT ADAPTOR CABLE
Effective: 2021-02-26
Price: 4,00 € : 4,00 €
-+
42
P/N (SKU): 402A-150201
Part Name: DASHBOARD ADAPTOR HARNESS
Effective: 2021-02-26
Price: 16,00 € : 16,00 €
-+
43
P/N (SKU): 9010-150110-1000
Part Name: CIGARETTE LIGHTER ADAPTOR CABLE
Effective: 2021-02-26
Remarks: for selection 9010-150700
Price: 4,00 € : 4,00 €
-+
44
P/N (SKU): 905A-150200
Part Name: ADAPTOR CABLE, REGULATOR
Effective: 2021-02-26
Price: 16,00 € : 16,00 €
-+
45
P/N (SKU): 9010-150720-3000
Part Name: CONTROL UNIT, WINCH
Effective: 2021-02-26
Price: 70,00 € : 70,00 €
-+
45
P/N (SKU): 9010-150720-A000
Part Name: CONTROL UNIT, WINCH
Effective: 2021-02-26
Remarks: ROCKY
Price: 85,00 € : 85,00 €
-+
