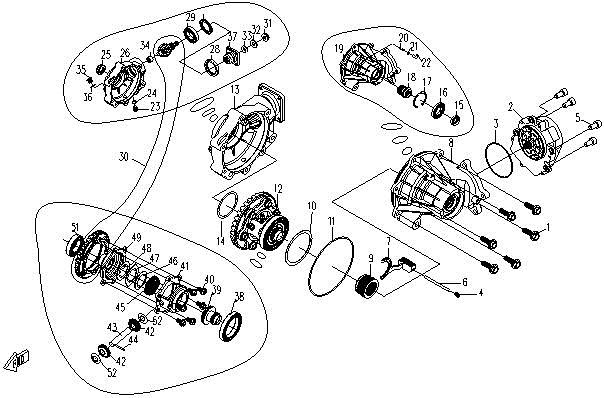

FRONT AXLE - F31

FRONT AXLE - F31

No.

01
P/N (SKU): 0180-310100-0010
Part Name: BOLT M8x28
Effective: 2021-02-26
Remarks: M8×28
Alternative parts:
Specification: M8x28
Price: 0,95 € : 0,95 €
-+
02
P/N (SKU): 0181-314000
Part Name: MOTOR ASSY, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 147,00 € : 147,00 €
-+
03
P/N (SKU): 0180-310001
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 81.2x1.9
Price: 1,65 € : 1,65 €
-+
04
P/N (SKU): 30130-080010820
Part Name: INNER HEX SCREW M8x10
Effective: 2021-02-26
Remarks: M8×10
Alternative parts: 30130-080010810
Specification: M8x10
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 30102-080020820
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 30102-080020810
Specification: M8x20@WHITE ZINC-PLATED
Price: 0,55 € : 0,55 €
06
P/N (SKU): 0180-310002
Part Name: PIN SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 4,10 € : 4,10 €
-+
07
P/N (SKU): 0180-315000
Part Name: RACK ASSY
Effective: 2021-02-26
Alternative parts:
Price: 19,00 € : 19,00 €
-+
08
P/N (SKU): 0181-311000
Part Name: FRONT GEAR CASE COVER SUB ASSY
Effective: 2021-02-26
Alternative parts:
Price: 108,50 € : 108,50 €
-+
09
P/N (SKU): 0180-310003-0050
Part Name: SPLINE BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 14,70 € : 14,70 €
-+
10
P/N (SKU): 0180-310004-0005
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 1.00mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 83x71x1.0
Price: 1,25 € : 1,25 €
-+
10
P/N (SKU): 0180-310004-0003
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 0.40mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 83x71x0.4
Price: 0,95 € : 0,95 €
-+
10
P/N (SKU): 0180-310004-0001
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 0.20mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 83x71x0.2
Price: 0,95 € : 0,95 €
-+
10
P/N (SKU): 0180-310004-0004
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 0.50mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 83x71x0.5
Price: 1,25 € : 1,25 €
-+
10
P/N (SKU): 0180-310004-0002
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 0.30mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 83x71x0.3
Price: 1,05 € : 1,05 €
-+
11
P/N (SKU): 0180-310005
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 141x2.4
Price: 1,65 € : 1,65 €
-+
12
P/N (SKU): 0181-313000
Part Name: DIFFERENTIAL SUB ASSY
Effective: 2021-02-26
Alternative parts:
Price: 345,30 € : 345,30 €
-+
13
P/N (SKU): 0181-312000
Part Name: FRONT GEAR CASE COVER SUB ASSY
Effective: 2021-02-26
Alternative parts:
Price: 250,50 € : 250,50 €
-+
14
P/N (SKU): 0180-310006-0003
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 0.40mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 61x53x0.4
Price: 0,95 € : 0,95 €
-+
14
P/N (SKU): 0180-310006
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 0.10mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 61x53x0.1
Price: 0,95 € : 0,95 €
-+
14
P/N (SKU): 0180-310006-0001
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 0.20mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 61x53x0.2
Price: 2,05 € : 2,05 €
-+
14
P/N (SKU): 0180-310006-0004
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 0.50mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 61x53x0.5
Price: 0,95 € : 0,95 €
-+
14
P/N (SKU): 0180-310006-0002
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 0.30mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 61x53x0.3
Price: 2,05 € : 2,05 €
-+
14
P/N (SKU): 0180-310006-0005
Part Name: ADJUSTING WASHER
Effective: 2021-02-26
Remarks: 1.00mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 61x53x1.0
Price: 1,25 € : 1,25 €
-+
15
P/N (SKU): 0180-311001
Part Name: OIL SEAL
Effective: 2021-02-26
Remarks: 24×38×8
Alternative parts:
Specification: 24x38x8
Price: 4,00 € : 4,00 €
-+
16
P/N (SKU): 30400-03501
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 16007
Price: 12,50 € : 12,50 €
-+
17
P/N (SKU): 30800-06200
Part Name: CIRCLIP FOR HOLE 62
Effective: 2021-02-26
Alternative parts:
Specification: 62
Price: 0,95 € : 0,95 €
-+
18
P/N (SKU): 0180-311003-0050
Part Name: DRIVE CLUTCH COVER
Effective: 2021-02-26
Alternative parts:
Price: 18,30 € : 18,30 €
-+
19
P/N (SKU): 0181-311002-0080
Part Name: FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 42,50 € : 42,50 €
-+
20
P/N (SKU): 0180-311004-0020
Part Name: BREATHER HOSE JOINT
Effective: 2021-02-26
Alternative parts:
Price: 0,95 € : 0,95 €
-+
21
P/N (SKU): 9010-310001
Part Name: FRONT GEAR CASE BREATHER HOSE
Effective: 2021-02-26
Alternative parts:
Price: 4,80 € : 4,80 €
-+
22
P/N (SKU): 30601-107030
Part Name: CLAMP A7
Effective: 2021-02-26
Remarks: is replaced by 30601-107010
Alternative parts: 30601-107010
Price: 0,55 € : 0,55 €
23
P/N (SKU): 0180-312100
Part Name: MAGNETIC DRAIN BOLT
Effective: 2021-02-26
Remarks: MAGNETIC
Alternative parts:
Specification: M10x1.25
Price: 2,15 € : 2,15 €
-+
23
P/N (SKU): 0010-060011-0030
Part Name: DRAIN BOLT, M10x1.25
Effective: 2021-02-26
Alternative parts: 0010-060011-0010
Specification: M10x1.25
Price: 0,95 € : 0,95 €
24
P/N (SKU): 0010-060010
Part Name: WASHER 10
Effective: 2021-02-26
Alternative parts:
Specification: 10
Price: 0,95 € : 0,95 €
-+
26
P/N (SKU): 0181-312001-0080
Part Name: FRONT GEAR CASE COVER
Effective: 2021-02-26
Alternative parts: 0181-312001-00001
Price: 137,30 € : 137,30 €
27
P/N (SKU): 0181-312009
Part Name: BEARING RETAINER
Effective: 2021-02-26
Alternative parts:
Price: 10,20 € : 10,20 €
-+
27
P/N (SKU): 0180-332100
Part Name: MAGNETIC DRAIN BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M14x1.25x12
Price: 5,00 € : 5,00 €
-+
28
P/N (SKU): 0180-312002
Part Name: OIL SEAL
Effective: 2021-02-26
Remarks: 48×65×9
Alternative parts:
Specification: 48x65x9
Price: 4,10 € : 4,10 €
-+
29
P/N (SKU): 30400-03502
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6007
Price: 12,70 € : 12,70 €
-+
30
P/N (SKU): 0180-310020
Part Name: BEVEL GEAR ASSY, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts: 0180-310020-00001
Price: 98,30 € : 98,30 €
31
P/N (SKU): 0180-312004-0010
Part Name: NUT M14x1.5
Effective: 2021-02-26
Remarks: M14×1.5
Alternative parts:
Specification: M14x1.5
Price: 2,00 € : 2,00 €
-+
32
P/N (SKU): 0180-312005-0050
Part Name: GASKET, FRONT GEAR CASE NUT
Effective: 2021-02-26
Alternative parts:
Price: 1,45 € : 1,45 €
-+
33
P/N (SKU): 0180-312006
Part Name: O-RING
Effective: 2021-02-26
Remarks: 14×6.8
Alternative parts:
Specification: 14x6.8
Price: 0,55 € : 0,55 €
-+
34
P/N (SKU): 30499-01502
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: F1512
Price: 22,30 € : 22,30 €
-+
35
P/N (SKU): 0180-021008-0030
Part Name: BOLT M14x1.25x12
Effective: 2021-02-26
Alternative parts: 0180-021008-0010/0180-021008-00001
Specification: M14x1.25x12
Price: 1,25 € : 1,25 €
36
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Alternative parts:
Specification: 14
Price: 1,05 € : 1,05 €
-+
37
P/N (SKU): 0181-312007-0050
Part Name: COUPLER, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 28,20 € : 28,20 €
-+
38
P/N (SKU): 30499-06000
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 61912
Price: 48,10 € : 48,10 €
-+
39
P/N (SKU): 0180-313001
Part Name: DIFFERENTIAL DRIVE GEAR
Effective: 2021-02-26
Alternative parts: 0180-313001-00001
Price: 37,20 € : 37,20 €
40
P/N (SKU): 0181-313100-0010
Part Name: BOLT M10x1.25x22
Effective: 2021-02-26
Remarks: M10×1.25×22
Alternative parts:
Specification: M10x1.25x22
Price: 0,95 € : 0,95 €
-+
41
P/N (SKU): 0181-313008-0050
Part Name: DIFFERENTIAL BRACKET
Effective: 2021-02-26
Alternative parts: 0181-313008-10000
Price: 51,70 € : 51,70 €
42
P/N (SKU): 0180-313003
Part Name: DIFFERENTIAL CENTER GEAR
Effective: 2021-02-26
Alternative parts: 0180-313003-00001
Price: 7,70 € : 7,70 €
43
P/N (SKU): 0180-313002
Part Name: DIFFERENTIAL CENTER GEAR SHAFT
Effective: 2021-02-26
Alternative parts: 0180-313002-10000
Price: 6,55 € : 6,55 €
-+
44
P/N (SKU): 0180-313007-0050
Part Name: PIN
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
45
P/N (SKU): 0180-313006
Part Name: DRIVEN GEAR, DIFFERENTIAL
Effective: 2021-02-26
Alternative parts: 0180-313006-00001
Price: 22,70 € : 22,70 €
46
P/N (SKU): 0180-313005-0010
Part Name: DISC GASKET
Effective: 2021-02-26
Alternative parts:
Price: 3,30 € : 3,30 €
-+
47
P/N (SKU): 0180-313009-0010
Part Name: GASKET
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
48
P/N (SKU): 0180-313010-0005
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 1.00mm/AN
Alternative parts:
Specification: ADJUST GASKET57x40x1.0
Price: 0,95 € : 0,95 €
-+
48
P/N (SKU): 0180-313010-0003
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.40mm/AN
Alternative parts:
Specification: ADJUST GASKET57x40x0.4
Price: 0,95 € : 0,95 €
-+
48
P/N (SKU): 0180-313010
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.10mm/AN
Alternative parts:
Specification: ADJUSTING WASHER 57x40x0.1
Price: 1,55 € : 1,55 €
-+
48
P/N (SKU): 0180-313010-0001
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.20mm/AN
Alternative parts:
Specification: ADJUST GASKET57x40x0.2
Price: 1,55 € : 1,55 €
-+
48
P/N (SKU): 0180-313010-0002
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.30mm/AN
Alternative parts:
Specification: ADJUST GASKET 57x40x0.3
Price: 2,05 € : 2,05 €
-+
48
P/N (SKU): 0180-313010-0004
Part Name: ADJUST GASKET
Effective: 2021-02-26
Remarks: 0.50mm/AN
Alternative parts:
Specification: ADJUST GASKET 57x40x0.5
Price: 0,95 € : 0,95 €
-+
49
P/N (SKU): 0181-313010-0050
Part Name: DIFFERENTIAL UPPER BRACKET
Effective: 2021-02-26
Alternative parts: 0181-313010-10000
Price: 41,00 € : 41,00 €
-+
52
P/N (SKU): 0181-313011
Part Name: WEARING RING
Effective: 2021-02-26
Alternative parts:
Price: 1,65 € : 1,65 €
-+
