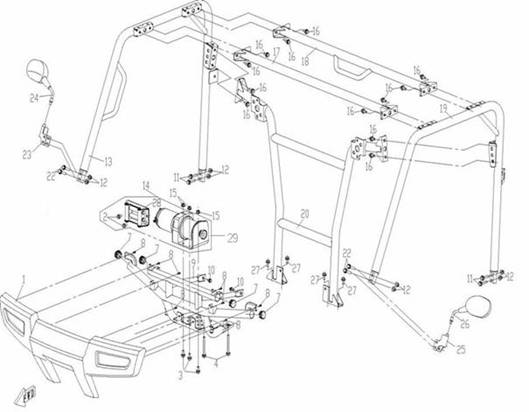

TOP FRAME @^ BUMPER - F22

TOP FRAME @^ BUMPER - F22

No.

01
P/N (SKU): 9030-040001
Part Name: BUMPER DECO COVER
Effective: 2021-02-26
Alternative parts:
Price: 57,90 € : 57,90 €
-+
02
P/N (SKU): 30006-102020810
Part Name: BOLT M10x1.25x20
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x20
Price: 0,95 € : 0,95 €
-+
03
P/N (SKU): 30006-080020840
Part Name: BOLT M8x20
Effective: 2021-02-26
Alternative parts: 30006-080020810
Specification: M8x20
Price: 0,55 € : 0,55 €
04
P/N (SKU): 30006-102090810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×90
Price: 1,25 € : 1,25 €
-+
07
P/N (SKU): 9010-040027
Part Name: BUMPER DECO COVER
Effective: 2021-02-26
Alternative parts:
Price: 6,10 € : 6,10 €
-+
08
P/N (SKU): 30110-420160040
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: 30110-420160010
Specification: ST4.2x16@ARMY GREEN
Price: 1,05 € : 1,05 €
-+
09
P/N (SKU): 9030-231000
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 120,50 € : 120,50 €
-+
10
P/N (SKU): 30006-080016840
Part Name: BOLT M8x16
Effective: 2021-02-26
Alternative parts: 30006-080016810
Specification: M8x16
Price: 1,65 € : 1,65 €
-+
11
P/N (SKU): 30006-102045840
Part Name: BOLT M10x1.25x45
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x45
Price: 0,95 € : 0,95 €
-+
12
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 0,95 € : 0,95 €
13
P/N (SKU): 9030-232100-2000
Part Name: RH FRAME, CAB
Effective: 2021-02-26
Alternative parts:
Price: 128,10 € : 128,10 €
-+
14
P/N (SKU): 9030-1507E0
Part Name: ELECTRIC WINCH ASSY
Effective: 2021-02-26
Alternative parts:
Specification: 3000Lbs
Price: 334,60 € : 334,60 €
-+
14
P/N (SKU): 9060-150740
Part Name: WINCH MOTOR
Effective: 2021-02-26
Remarks: NOT WATERPROOF
Alternative parts:
Specification: NOT WATERPROOF
Price: 328,20 € : 328,20 €
-+
14
P/N (SKU): 9030-1507A0
Part Name: ELECTRIC WINCH ASSY
Effective: 2021-02-26
Remarks: ROCKY / 3000 LBS；is replaced by 9030-1507D0
Alternative parts: 9030-1507D0
Specification: 3000Lbs
Price: 402,00 € : 402,00 €
14
P/N (SKU): 9060-150740-1000
Part Name: WINCH MOTOR
Effective: 2021-02-26
Remarks: WATERPROFF/LIANDA;3000LBS
Alternative parts: 7020-1507D0
Specification: WATERPROFF/LIANDA; 3000LBS
Price: 223,00 € : 223,00 €
14
P/N (SKU): 9030-1507D0
Part Name: ELECTRIC WINCH ASSY
Effective: 2021-02-26
Remarks: is replaced by 9030-1507E0
Alternative parts: 9030-1507E0
Price: 348,70 € : 348,70 €
15
P/N (SKU): 30204-080840
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts: 30204-080810
Specification: M8
Price: 0,55 € : 0,55 €
16
P/N (SKU): 30006-102020840
Part Name: BOLT M10x1.25x20
Effective: 2021-02-26
Alternative parts: 30006-102020810
Specification: M10x1.25x20
Price: 0,95 € : 0,95 €
17
P/N (SKU): 9030-232200-1000
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 59,00 € : 59,00 €
-+
18
P/N (SKU): 9030-232500-1000
Part Name: UPPER FRAME, CAB 2
Effective: 2021-02-26
Alternative parts:
Price: 50,20 € : 50,20 €
-+
19
P/N (SKU): 9030-232400-2000
Part Name: LH FRAME, CAB
Effective: 2021-02-26
Alternative parts:
Price: 112,30 € : 112,30 €
-+
20
P/N (SKU): 9030-232300-1000
Part Name: BEAM REAR FRAME ASSY
Effective: 2021-02-26
Alternative parts:
Price: 111,70 € : 111,70 €
-+
22
P/N (SKU): 30006-102050840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
23
P/N (SKU): 9030-260020
Part Name: BRACKET, RH REAR VIEW MIRROR
Effective: 2021-02-26
Alternative parts:
Price: 18,70 € : 18,70 €
-+
24
P/N (SKU): 5190-200300
Part Name: RH REAR VIEW MIRROR
Effective: 2021-02-26
Alternative parts:
Price: 8,80 € : 8,80 €
-+
25
P/N (SKU): 9030-260010
Part Name: BRACKET, LH REAR VIEW MIRROR
Effective: 2021-02-26
Alternative parts:
Price: 18,70 € : 18,70 €
-+
26
P/N (SKU): 5190-200200
Part Name: REAR VIEW MIRROR, LH
Effective: 2021-02-26
Alternative parts:
Price: 10,00 € : 10,00 €
-+
28
P/N (SKU): 9030-150730
Part Name: CABLE PULLEY
Effective: 2021-02-26
Alternative parts:
Price: 25,50 € : 25,50 €
-+
29
P/N (SKU): 9030-150740
Part Name: WINCH MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 270,90 € : 270,90 €
-+
